14 templates, 108 to 2420 sf. DXF R2018, drawn in inches. Free, no signup.
DWG (R2000, converted from the DXF and round-trip verified). PNG is the plan-view render.
A teaching room sized by student count, roughly 25 to 35 sf per student including the teaching zone. Sightlines to the front, not floor area, are what cap it.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 24'-0" x 32'-0" |
|---|---|
| Floor area | 768 sf |
| Overall, outside face of wall | 24'-10" x 32'-9" |
| Workable range for this room type | 350 to 1600 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (113 KB) DWG (41 KB) PNG (96 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
26 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.
The flowering room, sized by canopy. Rolling benches close the aisle between rows and open one at a time, so a room can be nearly all bench -- fixed benches need an aisle per row, and that difference changes achievable canopy per square foot materially.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 30'-0" x 45'-0" |
|---|---|
| Floor area | 1350 sf |
| Overall, outside face of wall | 30'-9" x 45'-9" |
| Workable range for this room type | 220 to 12000 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (134 KB) DWG (49 KB) PNG (115 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
25 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.
The vegetative and propagation room. Plants are smaller and more densely packed than in flower, so it is a fraction of the flowering area but the same rolling versus fixed bench arithmetic applies.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 20'-0" x 30'-0" |
|---|---|
| Floor area | 600 sf |
| Overall, outside face of wall | 20'-9" x 30'-9" |
| Workable range for this room type | 160 to 4000 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (120 KB) DWG (44 KB) PNG (119 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
25 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.

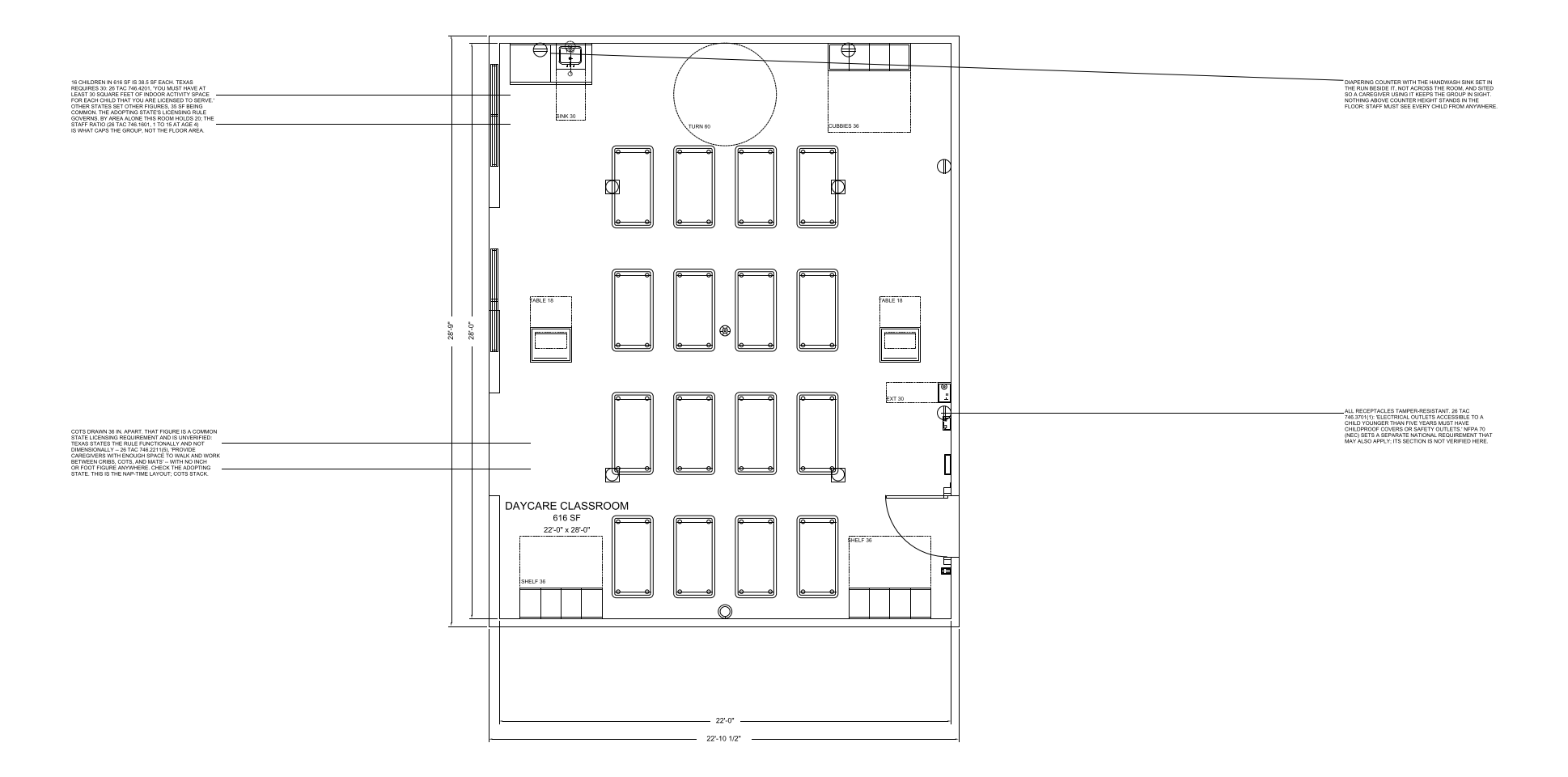

A licensed child care room, sized by square feet per child. State licensing sets that figure and the staff-to-child ratio, and both vary by state and by the children's ages.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 22'-0" x 28'-0" |
|---|---|
| Floor area | 616 sf |
| Overall, outside face of wall | 22'-10" x 28'-9" |
| Workable range for this room type | 200 to 1600 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (104 KB) DWG (37 KB) PNG (107 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
26 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.
A retail floor with a limited-access boundary running through it. Where that boundary sits, and what is allowed on each side of it, is state rule and it varies.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 24'-0" x 35'-0" |
|---|---|
| Floor area | 840 sf |
| Overall, outside face of wall | 24'-9" x 35'-10" |
| Workable range for this room type | 250 to 6000 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (116 KB) DWG (41 KB) PNG (114 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
25 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.
The secured storage room where inventory that is not on the sales floor is held. Construction, access control and video coverage are state rule and they vary; the shelving is the easy part.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 10'-0" x 14'-0" |
|---|---|
| Floor area | 140 sf |
| Overall, outside face of wall | 10'-9" x 14'-9" |
| Workable range for this room type | 63 to 800 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (100 KB) DWG (35 KB) PNG (212 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
25 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.
Where harvested material hangs or racks to dry. Air has to move around all four sides of every rack, and holding a narrow temperature and humidity band for two weeks is the whole design problem.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 16'-0" x 24'-0" |
|---|---|
| Floor area | 384 sf |
| Overall, outside face of wall | 16'-9" x 24'-9" |
| Workable range for this room type | 130 to 3000 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (114 KB) DWG (41 KB) PNG (129 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
25 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.
Selectorized machines, cardio and free weights laid out with room to use each one and get past it. Equipment footprint plus its working envelope, not floor area, is the sizing unit.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 44'-0" x 55'-0" |
|---|---|
| Floor area | 2420 sf |
| Overall, outside face of wall | 44'-10" x 55'-9" |
| Workable range for this room type | 330 to 20000 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (104 KB) DWG (36 KB) PNG (60 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
26 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.

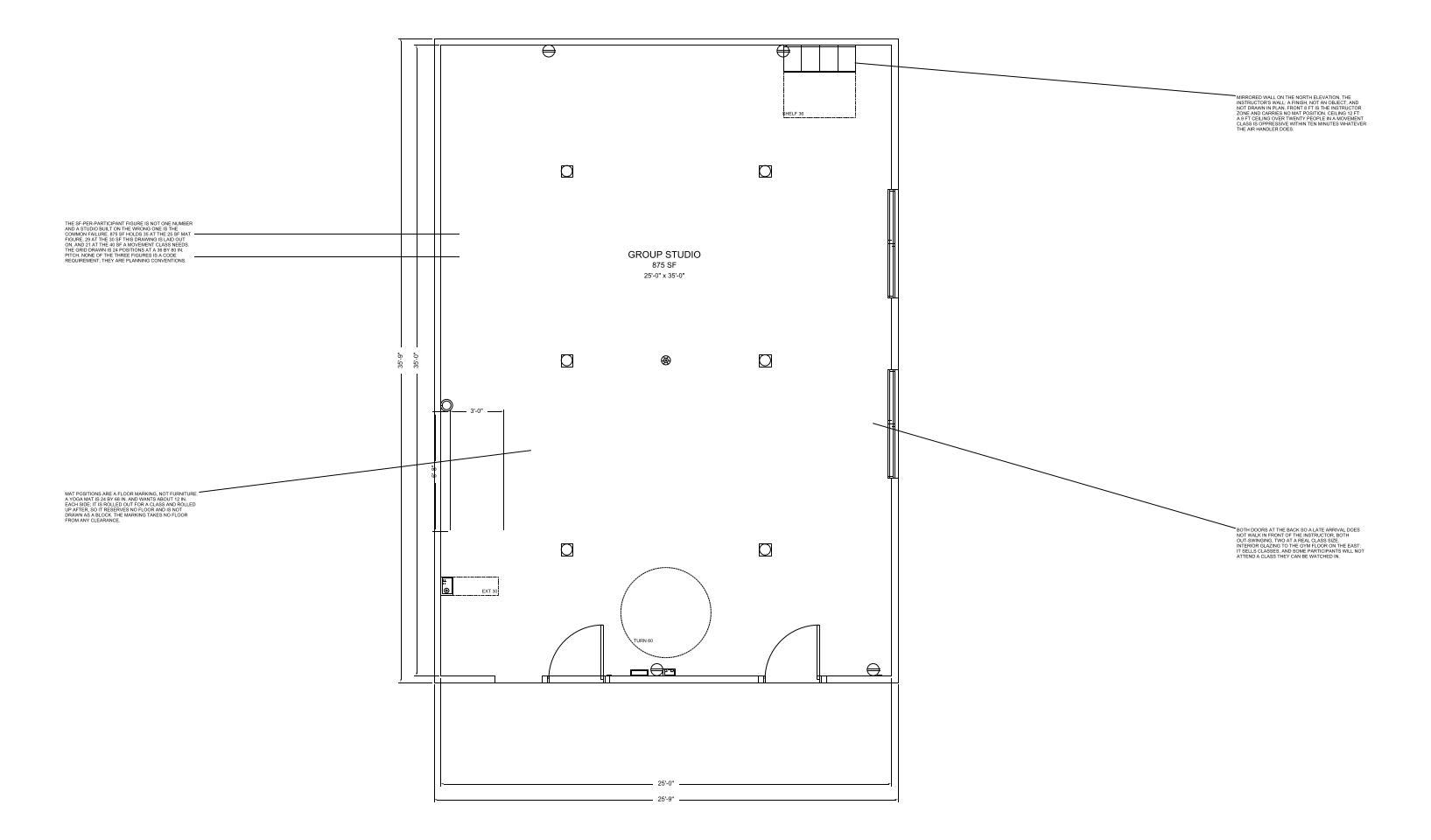

An open floor for classes, sized by participants rather than by equipment. Roughly 25 to 40 sf per person depending on whether the class moves.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 25'-0" x 35'-0" |
|---|---|
| Floor area | 875 sf |
| Overall, outside face of wall | 25'-9" x 35'-9" |
| Workable range for this room type | 250 to 4000 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (92 KB) DWG (32 KB) PNG (75 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
26 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.

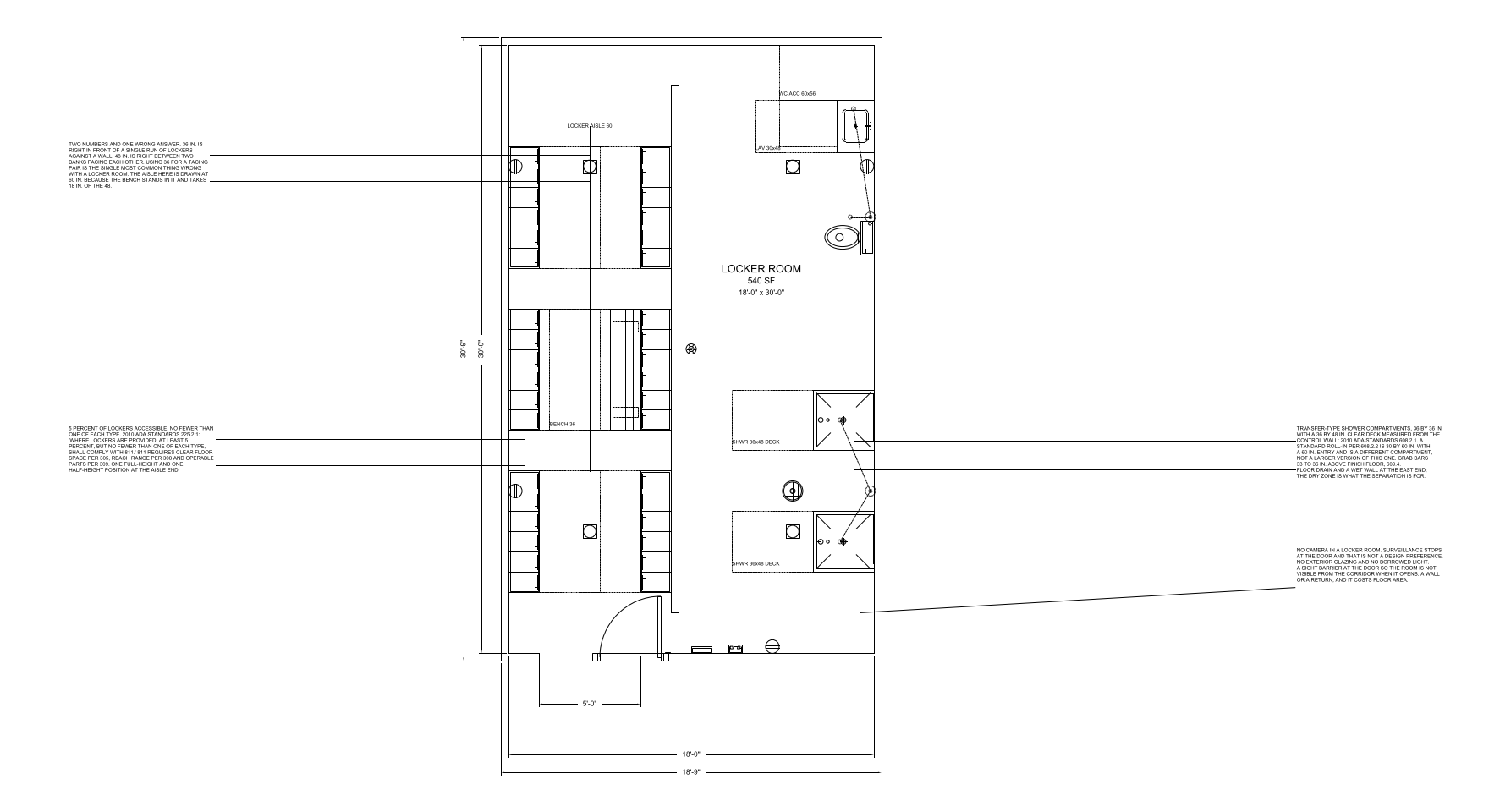

Locker banks, benches and showers. Facing locker banks need 48 in between them so two people can change back to back, which is the dimension the room is really made of.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 18'-0" x 30'-0" |
|---|---|
| Floor area | 540 sf |
| Overall, outside face of wall | 18'-9" x 30'-9" |
| Workable range for this room type | 180 to 4000 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (102 KB) DWG (36 KB) PNG (91 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
25 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.
Where finished product is weighed, packaged and labelled. It is a linear flow room -- bulk in one end, sealed and labelled product out the other -- and the flow, not the area, is the design.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 20'-0" x 32'-0" |
|---|---|
| Floor area | 640 sf |
| Overall, outside face of wall | 20'-9" x 32'-9" |
| Workable range for this room type | 240 to 4000 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (120 KB) DWG (43 KB) PNG (115 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
25 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.

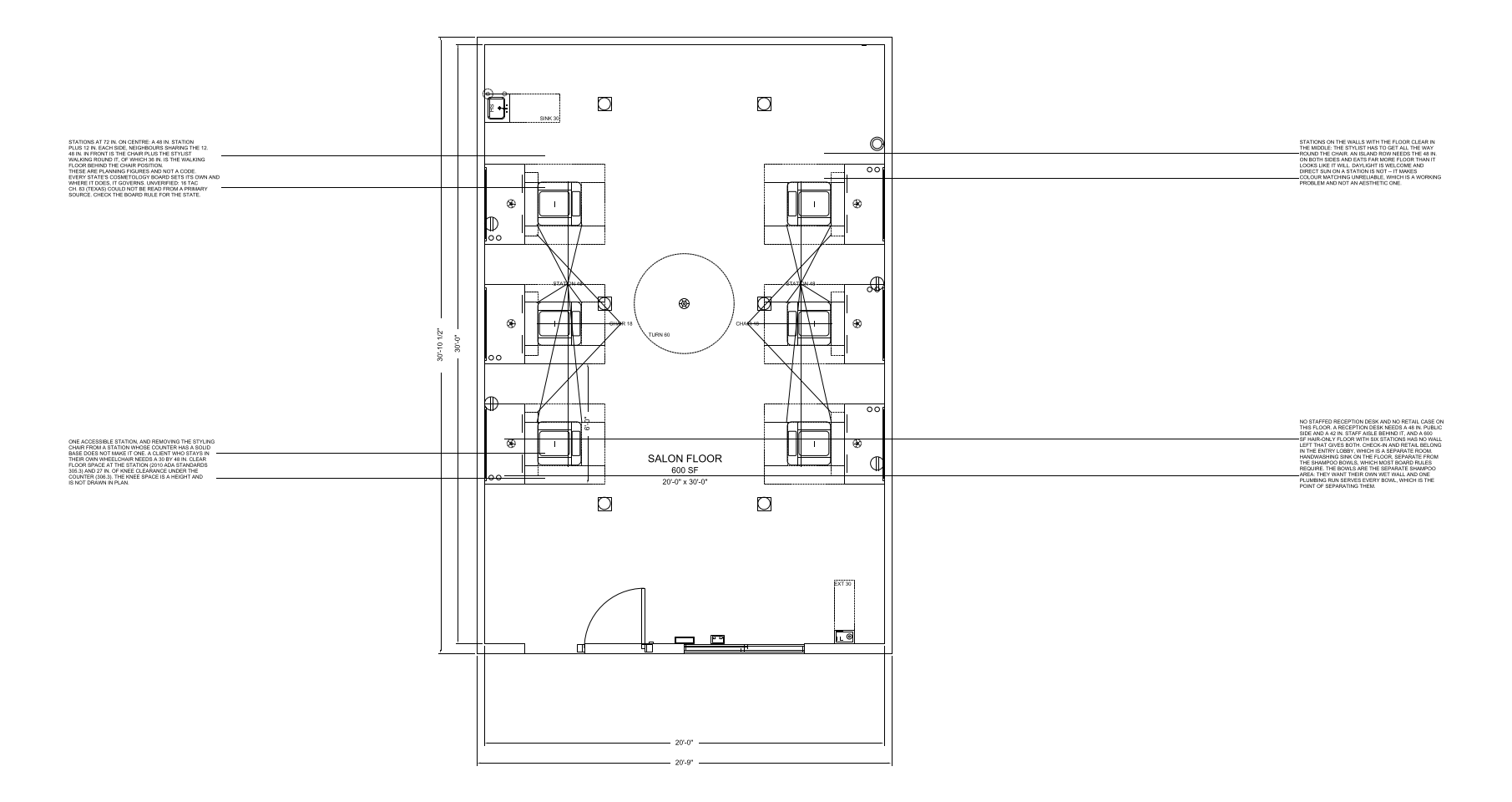

Styling stations with room to work all the way around a chair. State cosmetology boards set the station spacing and often a minimum square footage per station, and those numbers differ by state.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 20'-0" x 30'-0" |
|---|---|
| Floor area | 600 sf |
| Overall, outside face of wall | 20'-9" x 30'-10" |
| Workable range for this room type | 140 to 4000 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (112 KB) DWG (40 KB) PNG (120 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
27 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.

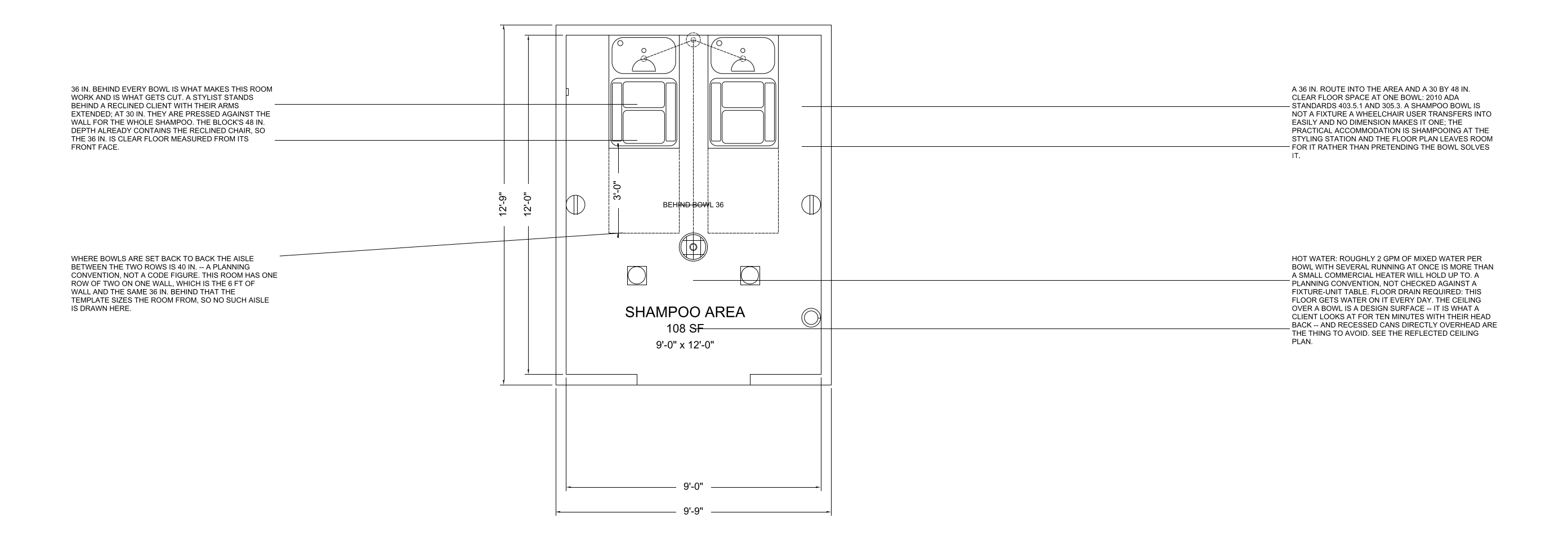

A row of shampoo bowls on one wet wall with room for the stylist to stand behind the reclined chair. Roughly one bowl per three or four styling stations.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 9'-0" x 12'-0" |
|---|---|
| Floor area | 108 sf |
| Overall, outside face of wall | 9'-9" x 12'-9" |
| Workable range for this room type | 48 to 400 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (84 KB) DWG (29 KB) PNG (189 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
22 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.
Where dried material is trimmed and sorted, at tables with people seated around them. Seated positions, not floor area, is the sizing unit, and it is the most labour-dense room in a cultivation facility.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 20'-0" x 28'-0" |
|---|---|
| Floor area | 560 sf |
| Overall, outside face of wall | 20'-9" x 28'-9" |
| Workable range for this room type | 200 to 3000 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (121 KB) DWG (44 KB) PNG (122 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
25 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.
Code sections are cited for drafting context only. A room drawn to a dimension in a model code is not a compliance determination: adoption, amendment and interpretation are local, and the governing edition in your jurisdiction may differ from the one cited. Nothing here is stamped or sealed. Verify against the code your project is permitted under and the actual specified products. See the license and terms.
