4 templates, 192 to 7200 sf. DXF R2018, drawn in inches. Free, no signup.
DWG (R2000, converted from the DXF and round-trip verified). PNG is the plan-view render.
A multi-door dock with levelers and a staging apron inside. The truck court outside, not the room inside, is usually what constrains it.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 50'-0" x 40'-0" |
|---|---|
| Floor area | 2000 sf |
| Overall, outside face of wall | 51'-0" x 41'-0" |
| Workable range for this room type | 280 to 12000 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (102 KB) DWG (36 KB) PNG (85 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
22 of 76 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.

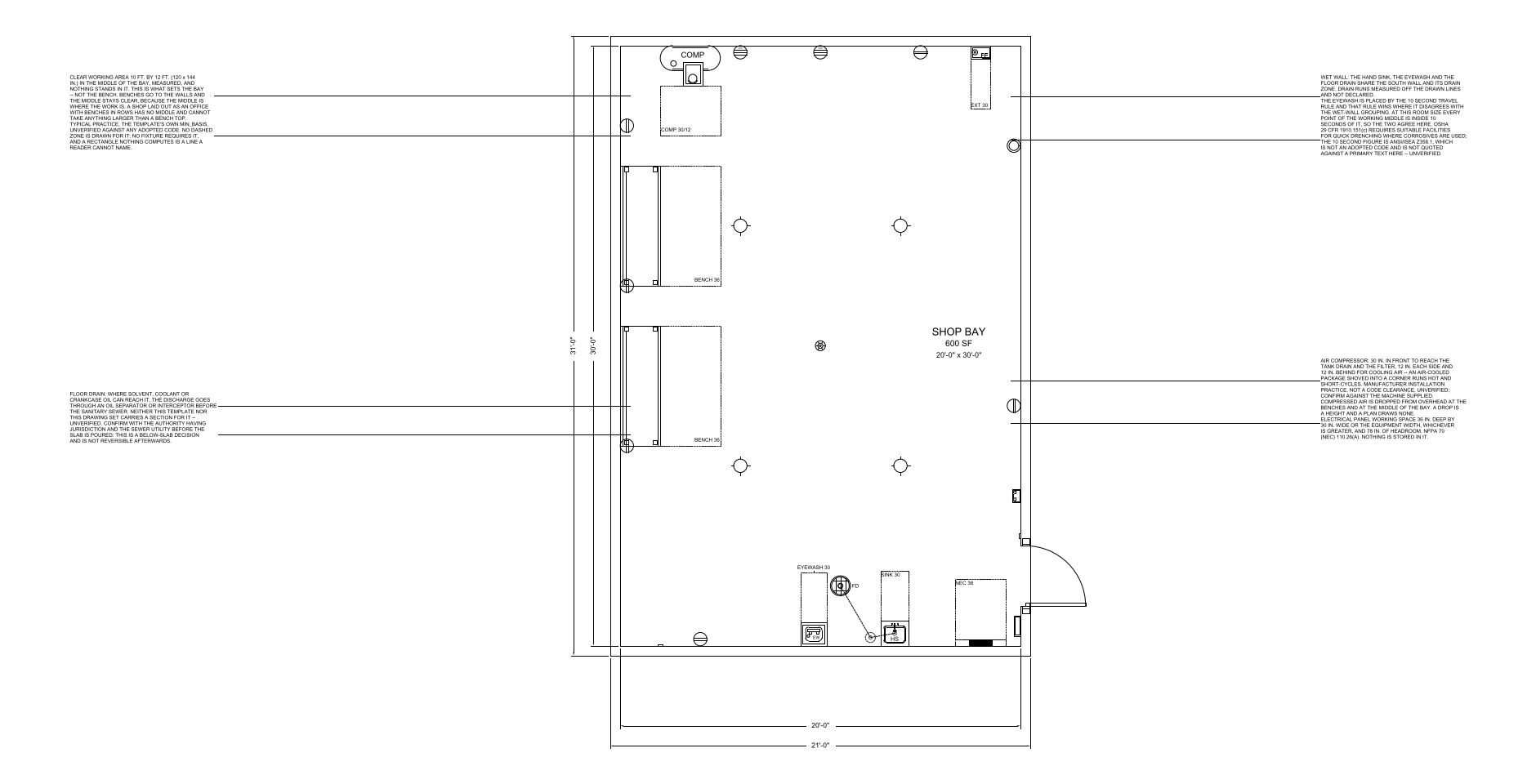

A maintenance or fabrication bay with a workbench, an air compressor and room to work around whatever is being worked on. The thing being repaired, not the bench, sets the size.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 20'-0" x 30'-0" |
|---|---|
| Floor area | 600 sf |
| Overall, outside face of wall | 21'-0" x 31'-0" |
| Workable range for this room type | 200 to 5000 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (106 KB) DWG (38 KB) PNG (116 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
22 of 76 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.
Pallet racking in rows with a lift truck aisle between them. Which truck it is decides the aisle width, and the aisle width decides how much the building holds -- so that is the first question, not a detail.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 60'-0" x 120'-0" |
|---|---|
| Floor area | 7200 sf |
| Overall, outside face of wall | 61'-0" x 121'-0" |
| Workable range for this room type | 600 to 40000 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (108 KB) DWG (38 KB) PNG (41 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
21 of 76 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.

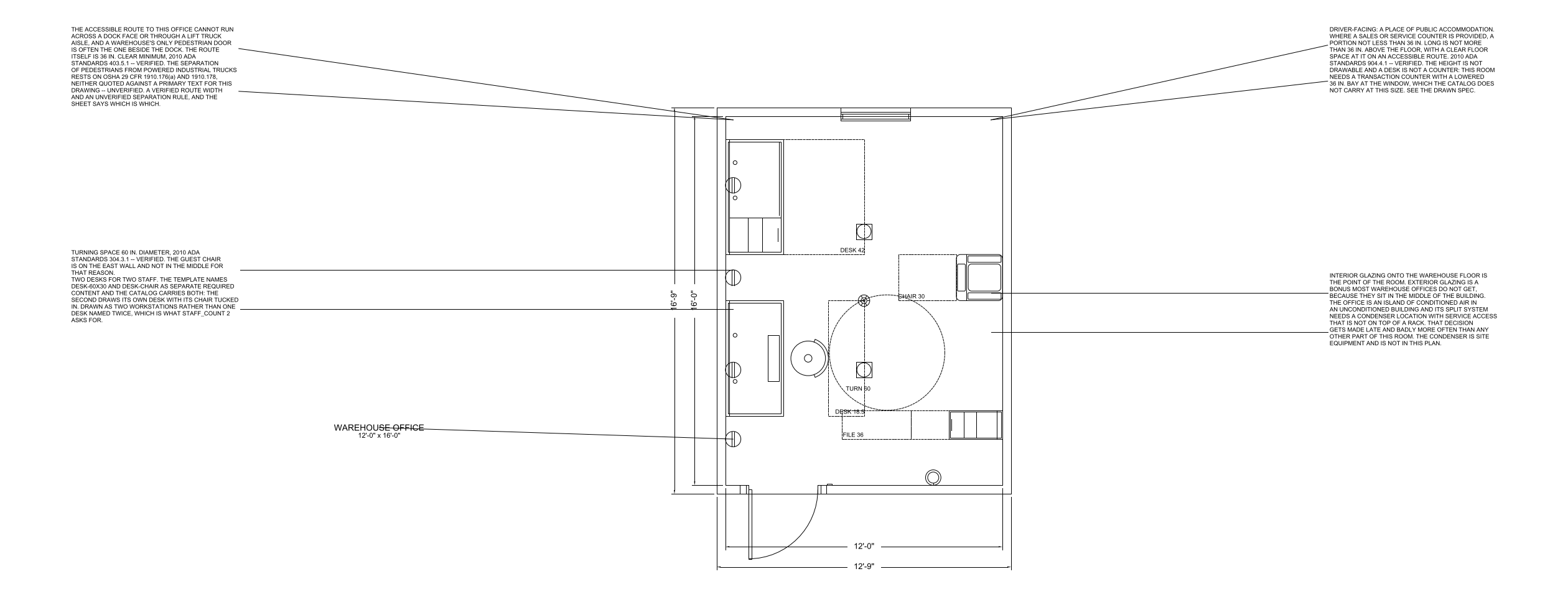

A small office inside the warehouse envelope, for shipping paperwork and a supervisor. Usually a prefabricated or stud-built box on the slab with its own conditioning.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 12'-0" x 16'-0" |
|---|---|
| Floor area | 192 sf |
| Overall, outside face of wall | 12'-9" x 16'-9" |
| Workable range for this room type | 80 to 600 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (92 KB) DWG (32 KB) PNG (179 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
23 of 76 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.
Code sections are cited for drafting context only. A room drawn to a dimension in a model code is not a compliance determination: adoption, amendment and interpretation are local, and the governing edition in your jurisdiction may differ from the one cited. Nothing here is stamped or sealed. Verify against the code your project is permitted under and the actual specified products. See the license and terms.
