A break room is a kitchenette run plus seating, and the run is sized by function before headcount: the smallest usable counter holds a sink with landing space each side and a microwave that is not stacked on top of something else. Appliance counts scale with the number of people who actually eat there, which is always fewer than the number who work there. The templates here cover a small break room and a large one, at ten and sixteen linear feet of counter. The sink rim height, counter approach and clear floor spaces are drawn to ADA dimensions.
Appliance counts on the larger template are set for the top of its headcount range; treat them as a ceiling, not a floor.
2 templates, 154 to 660 sf. DXF R2018, drawn in inches. Free, no signup.
DWG (R2000, converted from the DXF and round-trip verified). PNG is the plan-view render.
Several tables, a full counter run with a sink and a dishwasher, vending, and enough refrigeration for a real headcount. Serves roughly 40 to 150 people.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 22'-0" x 30'-0" |
|---|---|
| Floor area | 660 sf |
| Overall, outside face of wall | 22'-9" x 30'-10" |
| Workable range for this room type | 380 to 1800 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (122 KB) DWG (45 KB) PNG (119 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
23 of 76 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.

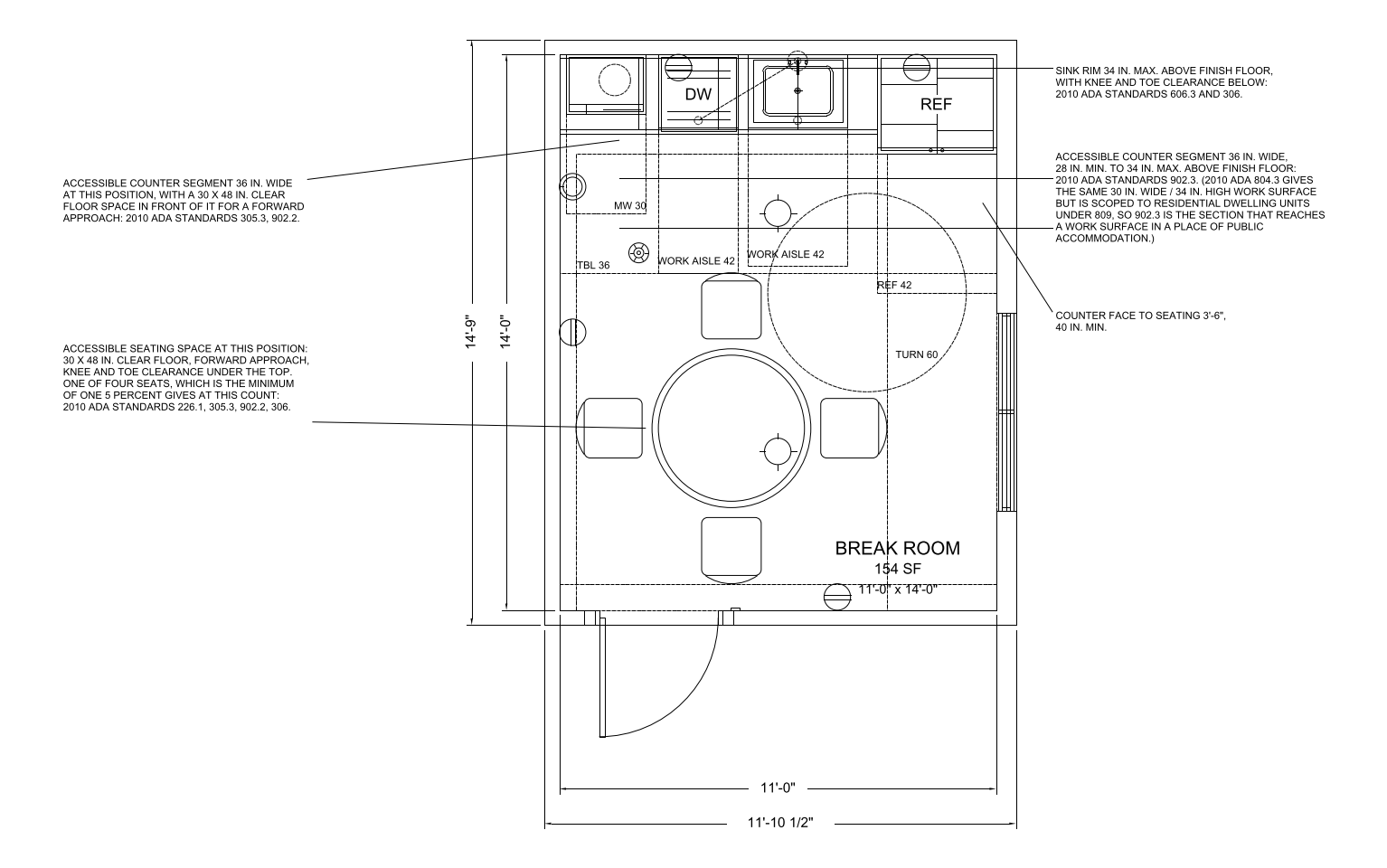

A counter run with a sink, a refrigerator, a microwave and one four-seat table. Serves roughly 10 to 25 people, and headcount is what sizes it.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 11'-0" x 14'-0" |
|---|---|
| Floor area | 154 sf |
| Overall, outside face of wall | 11'-10" x 14'-9" |
| Workable range for this room type | 126 to 250 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (94 KB) DWG (33 KB) PNG (136 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
23 of 76 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.
Code sections are cited for drafting context only. A room drawn to a dimension in a model code is not a compliance determination: adoption, amendment and interpretation are local, and the governing edition in your jurisdiction may differ from the one cited. Nothing here is stamped or sealed. Verify against the code your project is permitted under and the actual specified products. See the license and terms.
