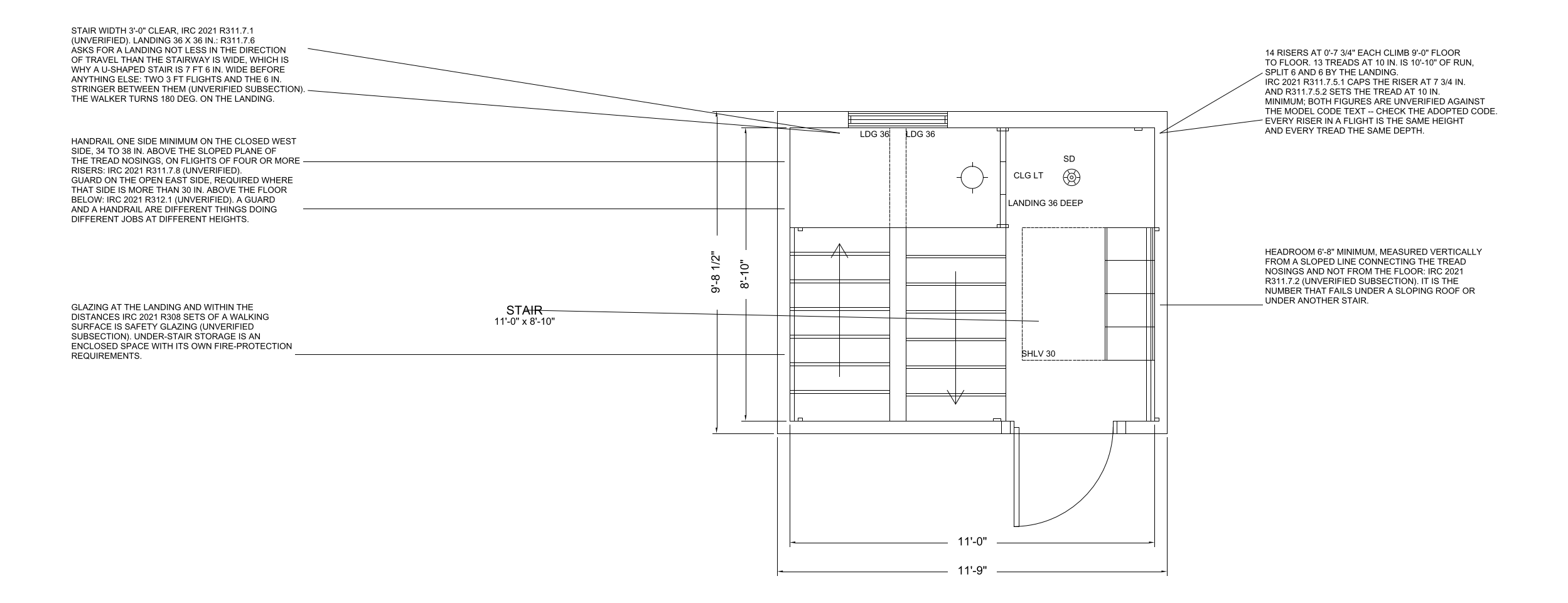

A 36 in wide straight run climbing one storey: thirteen risers at 7.75 in maximum and twelve treads at 10 in minimum, which is about 11 ft of horizontal run plus a landing at each end.
The sheet carries the fixture clearances as drawn geometry on their
own layer, with the dimension strings and room notes outside the
walls.
Size
| Interior (W x D) | 11'-0" x 8'-10" |
|---|
| Floor area | 97.17 sf |
|---|
| Overall, outside face of wall | 11'-9" x 9'-8" |
|---|
| Workable range for this room type |
39
to 120 sf
|
| Units | inches |
|---|
What is in it
Every one is a block from the CADdillo library, inserted — not
drawn for this sheet. Linked where the block has a library page.
Download
DXF
(89 KB)
/
DWG
(31 KB)
/
PNG
(200 KB)
Codes cited on the sheet
-
unverified
IBC 2021 Chapter 10 stairways (unverified)
— The commercial stair is a different animal: IBC stairways are 44 in wide with a 7 in maximum riser and an 11 in minimum tread, so the same storey takes more risers and a longer run. A stair drawn to residential numbers cannot be reused in a commercial fit-out.
-
unverified
IRC 2021 R311.7 stairways -- width, riser and tread (subsections unverified)
— Stairways shall be not less than 36 in in clear width above the handrail height, risers shall be not more than 7.75 in and treads not less than 10 in, and the greatest riser height within a flight shall not exceed the smallest by more than 3/8 in.
-
unverified
IRC 2021 R311.7.2 headroom (unverified)
— Headroom in stairways shall be not less than 6 feet 8 inches, measured vertically from a sloped line connecting the tread nosings.
-
unverified
IRC 2021 R311.7.6 landings for stairways (unverified)
— A floor or landing shall be provided at the top and bottom of each stairway, not less in the direction of travel than the width of the stairway.
-
unverified
IRC 2021 R311.7.8 handrails (unverified)
— Handrails shall be provided on at least one side of each flight with four or more risers, at a height of 34 to 38 in measured vertically from the sloped plane of the tread nosings.
-
unverified
IRC 2021 R312.1 guards (unverified)
— Guards are required at open-sided walking surfaces, including stairs and landings, located more than 30 in measured vertically to the floor or grade below.
"Verified" means the citation was checked against the source
text we hold. "Unverified" means it has not been, and should be
read as a pointer to look the section up rather than as a
quotation of it.
How this was checked
26 of 119 checks graded, zero defects. This template is published because
it graded clean.
93 checks had
nothing to measure on this sheet
- ada key features
- bath bands do not scale
- bath fixture order and reach
- bath one door
- bath privacy
- bath sink first
- brief satisfied
- building inside the setbacks
- building on the parcel
- circulation share of the floor plate
- circulation zones
- classroom desks fill the room
- codes
- commercial seating rules
- commercial seats face display
- declared minimum width
- byte-identical rebuild
- door count by kind
- entry and garage reach the right rooms
- entry reaches public and private
- every storey has its restrooms
- number of exits
- exit stair discharges
- exterior doors
- exterior doors declared
- flanker has a legitimate spot
- flanking seats flank
- food service keeps its restrooms
- garage bays
- garage drive and entry walk
- garage projection
- garage room depth
- daylight area for habitable rooms
- handed lounge faces the room
- heated vs programme
- hood over range
- jog count
- jog min dimension
- laundry out of the public zone
- lodging accessible counts
- lot dimension text clear
- lot dimensions close
- lot record is consistent
- main entry faces street
- master opposite garage
- named room holds its thing
- no ada in residential
- no reentrant in room
- not entered through service
- outdoor equipment kept outdoors
- packer rooms drawn
- perimeter offices on exterior
- plate in range
- plumbing fixture count for the occupant load
- porch exclusive
- private rooms hang off the hall
- programme filler caps
- public zone on the living level
- res bath complete
- res bath fixture order
- res bedroom door and closet
- res dwelling unit boundary
- res every room labelled
- res garage door into dwelling
- res garage door width
- res mudroom laundry
- res pocket door inside
- restroom door placement
- restroom lav first
- restroom pairs are separated
- restrooms are sexed or single
- room bands by ratio
- room vs programme
- rooms inside union
- seat backs off glazing
- seats face focus
- seats face open floor
- service room bands
- size matches ask
- sleeping level has a full bath
- sofa anchor backs a wall
- sofa only where commerce seats
- spine serves every private room
- stair end landing
- rooms contained within their suite
- table seated around
- tables are seated
- tub before shower
- walking route between rooms
- walls trace outline
- workstation bank rules
- workstation field balanced
- zone assigned
A single room on its own sheet is not a whole building, so the
checks that grade a floor plate — exit counts, circulation
share, fixture counts against an occupant load — have no
subject here. They are listed rather than counted as passes.
