Seven storage and bedroom CAD blocks: 36in bookshelf, 60in dresser, 60in TV console, file cabinet, nightstand, bed and an office cubicle. Shallow pieces along a wall and one 72x72in cubicle that is really a room within a room. All drawn to scale in inches and free to download as DXF.
7 blocks, 7 downloads on this page. DXF R2018, drawn in inches. Free, no signup.
DWG (R2000, converted from the DXF). PNG is the plan-view preview.

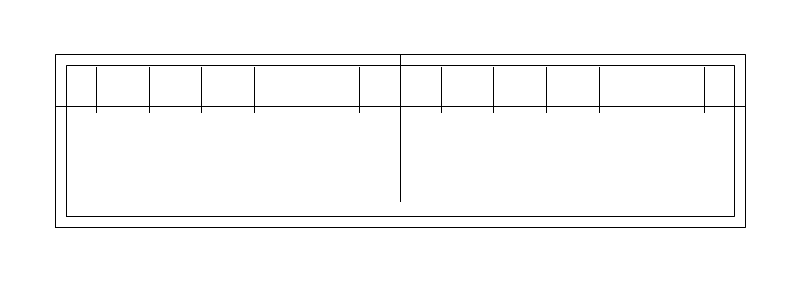

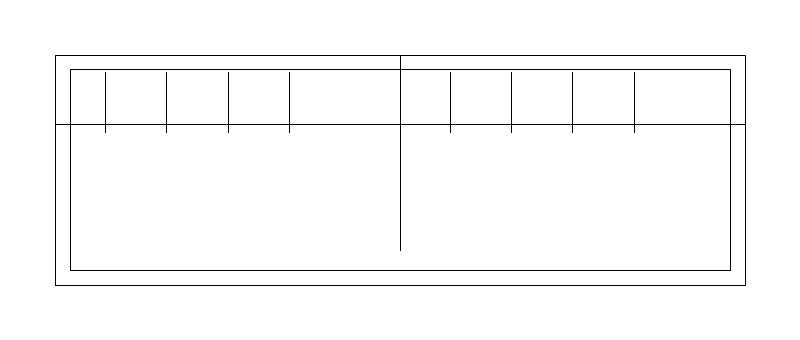

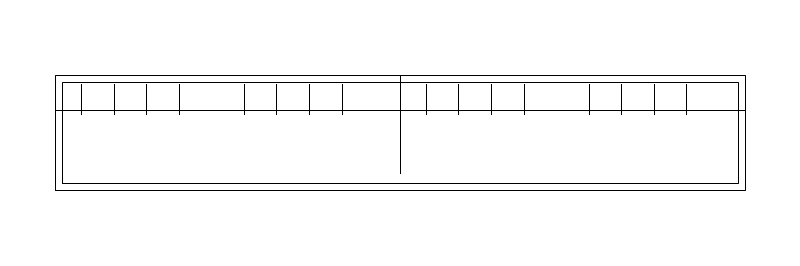

Shallow open shelving drawn against a wall in residential rooms, home offices, and small commercial reception areas. It is placed mainly to reserve wall length and confirm the unit does not intrude on a door swing or a circulation path.
Default 36in wide, adjustable 24-72in from a single narrow bookcase to a wide wall unit. Depth 12in default with a 10-16in range - 10 to 12in handles books, while 16in is what letter-size archive boxes and display objects actually need.
Back-left corner on the wall line. Because nothing swings or extends, the 12in bbox depth is the entire clearance requirement - unlike the file cabinet, the drawn footprint is the real footprint.
Drawn on the same wall run as the desk in a home office, or beside the TV console in a living room.
| Plan footprint (W x H) | 36in x 12in |
|---|---|
| Units | inches |
| DXF version | R2018 |
| Insertion datum | back-left corner on wall line |
| Parameter | Default | Range / options |
|---|---|---|
| Width | 36in | 24in–72in |
| Depth | 12in | 10in–16in |
Bedroom chest or dresser drawn against a wall in residential and hotel guest-room plans. Its role is reserving wall length that competes directly with closet doors, windows, and the television wall.
Default 60in wide, adjustable 30-72in from a narrow chest of drawers to a long double dresser. Depth 20in default with a 16-24in range tracking drawer length. The block draws the case only, so allow drawer extension into the room roughly equal to the depth.
Back-left corner on the wall line, the same datum as the nightstand and TV console, so all three chain along a single wall at one common Y coordinate without individual adjustment.
Drawn opposite the bed, with nightstands at the head wall completing the bedroom furniture set.
| Plan footprint (W x H) | 60in x 20in |
|---|---|
| Units | inches |
| DXF version | R2018 |
| Insertion datum | back-left corner on wall line |
| Parameter | Default | Range / options |
|---|---|---|
| Width | 60in | 30in–72in |
| Depth | 20in | 16in–24in |
Vertical file drawn against a wall in offices, records rooms, and back-of-house storage. Its real job on a plan is proving drawer-pull clearance in a tight file room and reserving the wall length before casework is laid in.
The 15in default is a letter-size vertical file; legal vertical runs 18in and lateral files come in 30in and 36in widths, all inside the 15-36in range. Depth adjusts 22-30in and tracks drawer length rather than cabinet style.
Back-left corner on the wall line is the datum. The 47.6in bbox depth runs 19.6in past the 28in cabinet body to cover the open drawer - that extended figure, not the body, is what you check against the aisle.
Drawn with the cubicle and desk-with-chair blocks, typically tucked into a workstation return or ganged along a file wall.
| Plan footprint (W x H) | 15in x 47.6in |
|---|---|
| Units | inches |
| DXF version | R2018 |
| Insertion datum | back-left corner on wall line |
| Parameter | Default | Range / options |
|---|---|---|
| Width | 15in | 15in–36in |
| Depth | 28in | 22in–30in |

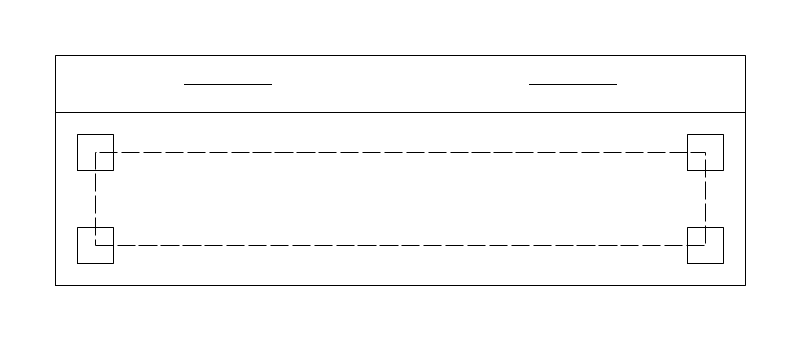

Low media console on the wall opposite the seating group, for living rooms and hotel guest rooms. It appears on the furniture plan and is referenced on the electrical plan for the receptacle and low-voltage outlet behind it.
Default 60in wide, adjustable 48-84in. Console width is normally chosen to match or exceed the width of the display above it - a 65in-diagonal screen measures about 57in across, so the 60in default clears it and an 84in console suits a 90in-class display. Depth 16in default (14-20in) with a 17.5in bbox, 1.5in past the case body.
Back-left corner on the wall line, so the insertion point is at one end rather than the middle. Centering the console on a wall or on the sofa opposite means offsetting half its width from that midpoint - a common source of a console that plots visibly off-axis.
Drawn facing the sofa across the room, often with a bookshelf continuing the same wall run.
| Plan footprint (W x H) | 60in x 17.5in |
|---|---|
| Units | inches |
| DXF version | R2018 |
| Insertion datum | back-left corner on wall line |
| Parameter | Default | Range / options |
|---|---|---|
| Width | 60in | 48in–84in |
| Depth | 16in | 14in–20in |

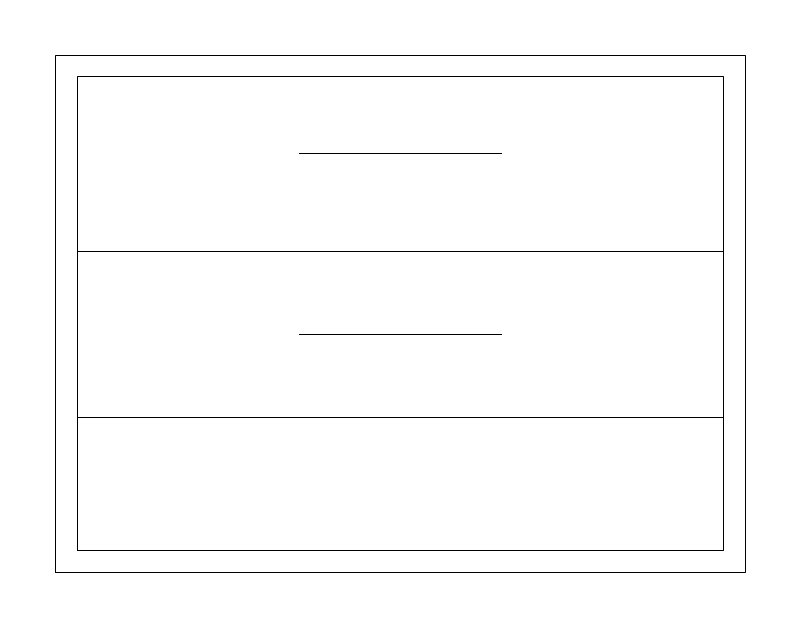

Bedside table for residential bedrooms and hotel guest rooms. Small but layout-critical - it is what determines whether a bed can sit close enough to a side wall and still take a nightstand on both sides.
A 22in by 18in top is the default, with width running 16-30in and depth 14-22in. Depth is normally kept at or under the bed's side profile so the nightstand does not project past the mattress edge into the walking path.
Back-left corner on the wall line, matching the bed's headboard datum, so the nightstand and bed align on one shared head-wall Y coordinate with no manual offset.
Drawn flanking the bed, usually as a mirrored pair, with a table lamp centered on top of each.
| Plan footprint (W x H) | 22in x 18in |
|---|---|
| Units | inches |
| DXF version | R2018 |
| Insertion datum | back-left corner on wall line |
| Parameter | Default | Range / options |
|---|---|---|
| Width | 22in | 16in–30in |
| Depth | 18in | 14in–22in |
Panel-system workstation with an L-shaped work surface, shown on furniture plans and referenced on power/data plans. Space planners count these against usable square footage; electrical drafters key receptacle and data drops to the panel raceway feeds.
The 72in default is the classic 6x6 station. The 60-120in range runs from a tight 5x5 call-center bench up to a 10x10 station that occupies as much floor as a small private office. It is a single square dimension, so the station scales uniformly.
The datum is the near-left corner of the panel footprint, not the work surface, so ganged stations butt panel-to-panel without a gap when arrayed back to back or in pinwheel clusters.
Drawn with the file cabinet and desk-with-chair blocks; the same location repeats on the power plan for the raceway feed.
| Plan footprint (W x H) | 72in x 72in |
|---|---|
| Units | inches |
| DXF version | R2018 |
| Insertion datum | near-left corner of panel footprint |
| Parameter | Default | Range / options |
|---|---|---|
| Size | 72in | 60in–120in |

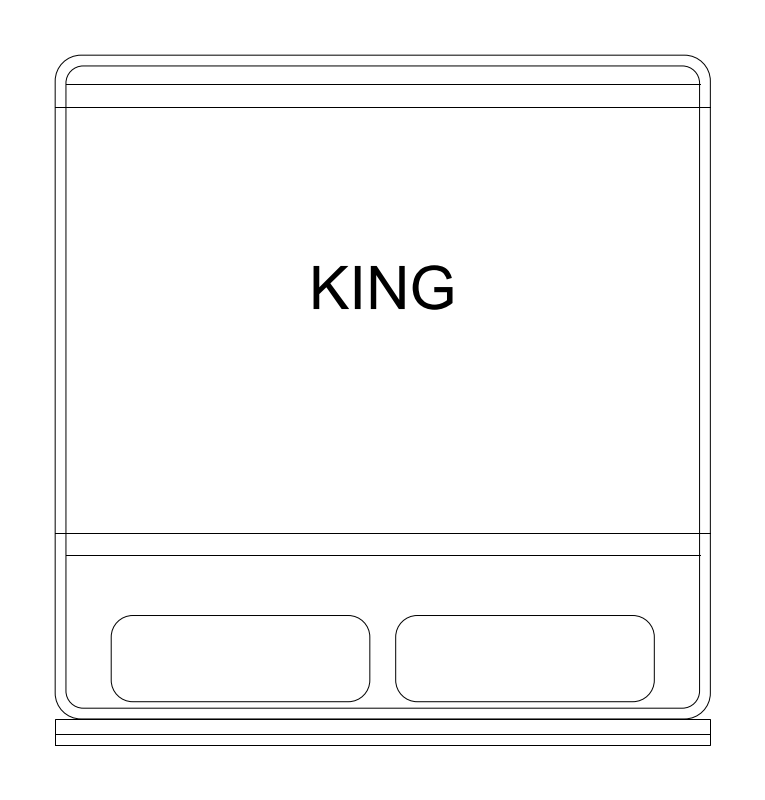

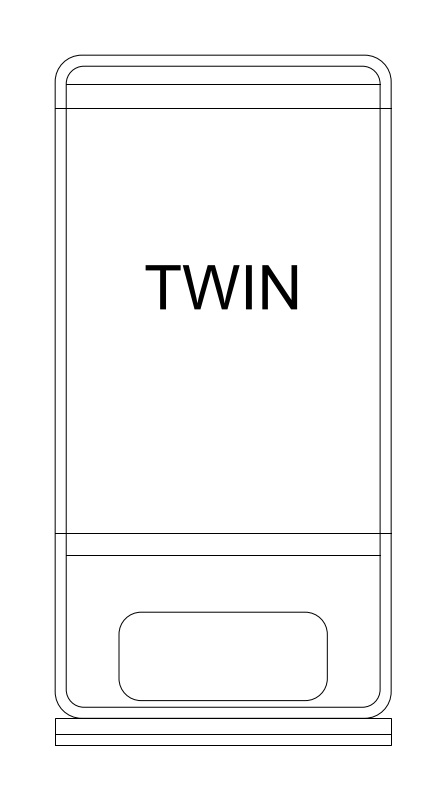

Bed with headboard for residential floor plans, hotel guest-room layouts, and multifamily unit plans. It is the furniture block that decides whether a bedroom actually works, since it sets the clearance available on both sides and at the foot.
Sizing is an enum - twin, full, queen, king - rather than free dimensions, because mattress sizes are standardized. The queen default plots 60in wide, and the 83in bbox depth is the 80in mattress plus roughly 3in of headboard behind it.
The headboard back-left corner sits on the wall line, so the block butts to the head wall with the mattress running out into the room. Change the size enum rather than stretching the block - stretching breaks the standardized mattress proportions.
Drawn with nightstands flanking the head wall and a dresser or TV console on the facing wall.
| Plan footprint (W x H) | 60in x 83in |
|---|---|
| Units | inches |
| DXF version | R2018 |
| Insertion datum | headboard back-left corner on wall line |
| Parameter | Default | Range / options |
|---|---|---|
| Size | queen | twin / full / queen / king |
Standards are listed for drafting context only. A symbol drawn to a convention is not a compliance determination - verify against the governing code and the specified product. See the license and terms.
