3 templates, 67 to 205 sf. DXF R2018, drawn in inches. Free, no signup.
DWG (R2000, converted from the DXF and round-trip verified). PNG is the plan-view render.
A corridor drawn to the ADA accessible route rules: 36 in of clear width, 32 in permitted at a single point for not more than 24 in, and passing spaces where the route runs narrower than 60 in.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 5'-0" x 40'-0" |
|---|---|
| Floor area | 200 sf |
| Overall, outside face of wall | 5'-9" x 40'-9" |
| Workable range for this room type | 18 + sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (89 KB) DWG (30 KB) PNG (95 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
23 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.
A corridor in a building under the IBC. The table minimum is 44 in, dropping to 36 in where it serves fewer than 50 occupants, but where the egress capacity calculation asks for more than the table, capacity governs.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 5'-0" x 40'-0" |
|---|---|
| Floor area | 205 sf |
| Overall, outside face of wall | 7'-9" x 40'-9" |
| Workable range for this room type | 22 + sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (91 KB) DWG (32 KB) PNG (91 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
25 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.

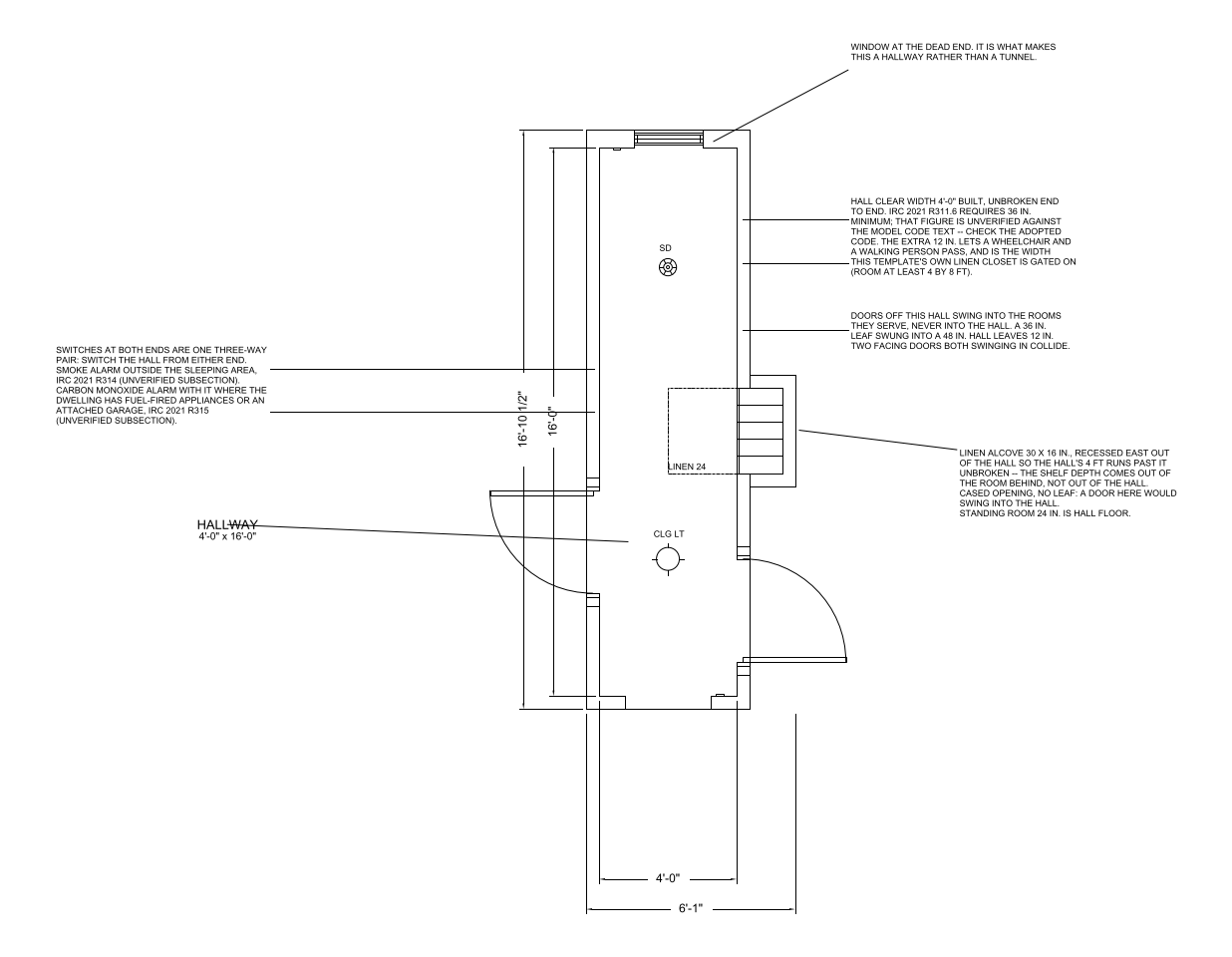

A hallway in a dwelling. Its width is the whole specification -- 36 in minimum under the IRC -- and its length is whatever the plan happens to need.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 4'-0" x 16'-0" |
|---|---|
| Floor area | 67.33 sf |
| Overall, outside face of wall | 6'-1" x 16'-10" |
| Workable range for this room type | 12 + sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (83 KB) DWG (28 KB) PNG (89 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
26 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.
Code sections are cited for drafting context only. A room drawn to a dimension in a model code is not a compliance determination: adoption, amendment and interpretation are local, and the governing edition in your jurisdiction may differ from the one cited. Nothing here is stamped or sealed. Verify against the code your project is permitted under and the actual specified products. See the license and terms.
