Closets are the templates where the catalog and the opening have to agree exactly, and usually do not. A reach-in is a fixed 24 inch depth with a rod and shelf, and its width is set by the door: bifold leaves come in discrete sizes, so a 48 inch opening works perfectly and a 60 inch one needs a decision. A walk-in adds an aisle between hanging runs, and the aisle width is the one number the sources genuinely disagree about. The templates here cover three reach-in widths and two walk-ins, each drawn with the rod, the shelf, the door swing or fold, and the clear aisle.
Reach-in depth is 24 inches throughout; the variation across these templates is width and door type, which is what actually changes.
5 templates, 8 to 48 sf. DXF R2018, drawn in inches. Free, no signup.
DWG (R2000, converted from the DXF and round-trip verified). PNG is the plan-view render.
A closet you reach into rather than walk into. Twenty-four inches deep, because that is what a shirt on a hanger occupies, and typically 6 ft wide.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 4'-0" x 2'-0" |
|---|---|
| Floor area | 8 sf |
| Overall, outside face of wall | 4'-9" x 2'-9" |
| Workable range for this room type | 6 to 24 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (70 KB) DWG (23 KB) PNG (49 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
21 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.
A closet you reach into rather than walk into. Twenty-four inches deep, because that is what a shirt on a hanger occupies, and typically 6 ft wide.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.

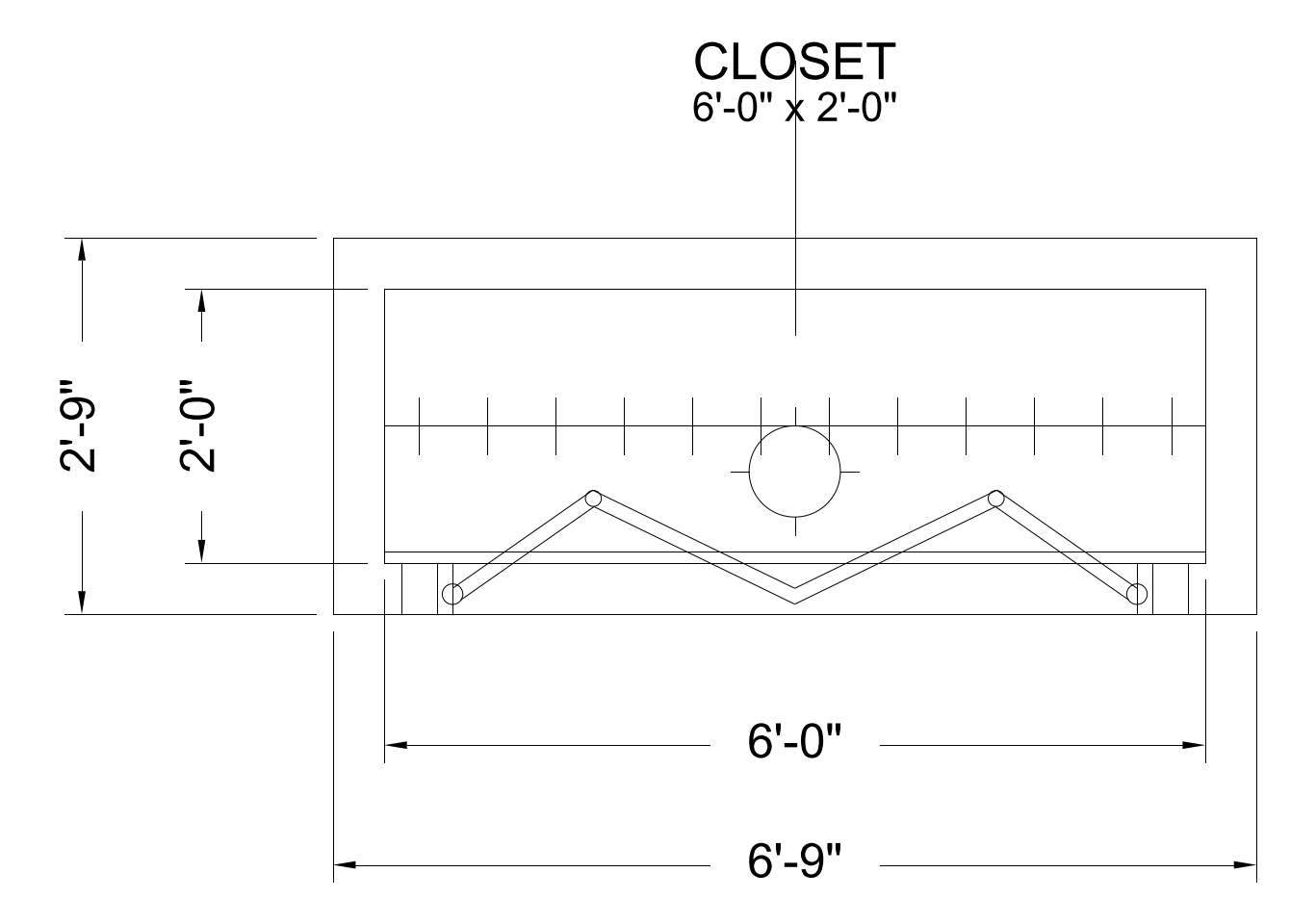

| Interior (W x D) | 6'-0" x 2'-0" |
|---|---|
| Floor area | 12 sf |
| Overall, outside face of wall | 6'-9" x 2'-9" |
| Workable range for this room type | 6 to 24 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (70 KB) DWG (23 KB) PNG (51 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
21 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.
A closet you reach into rather than walk into. Twenty-four inches deep, because that is what a shirt on a hanger occupies, and typically 6 ft wide.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.

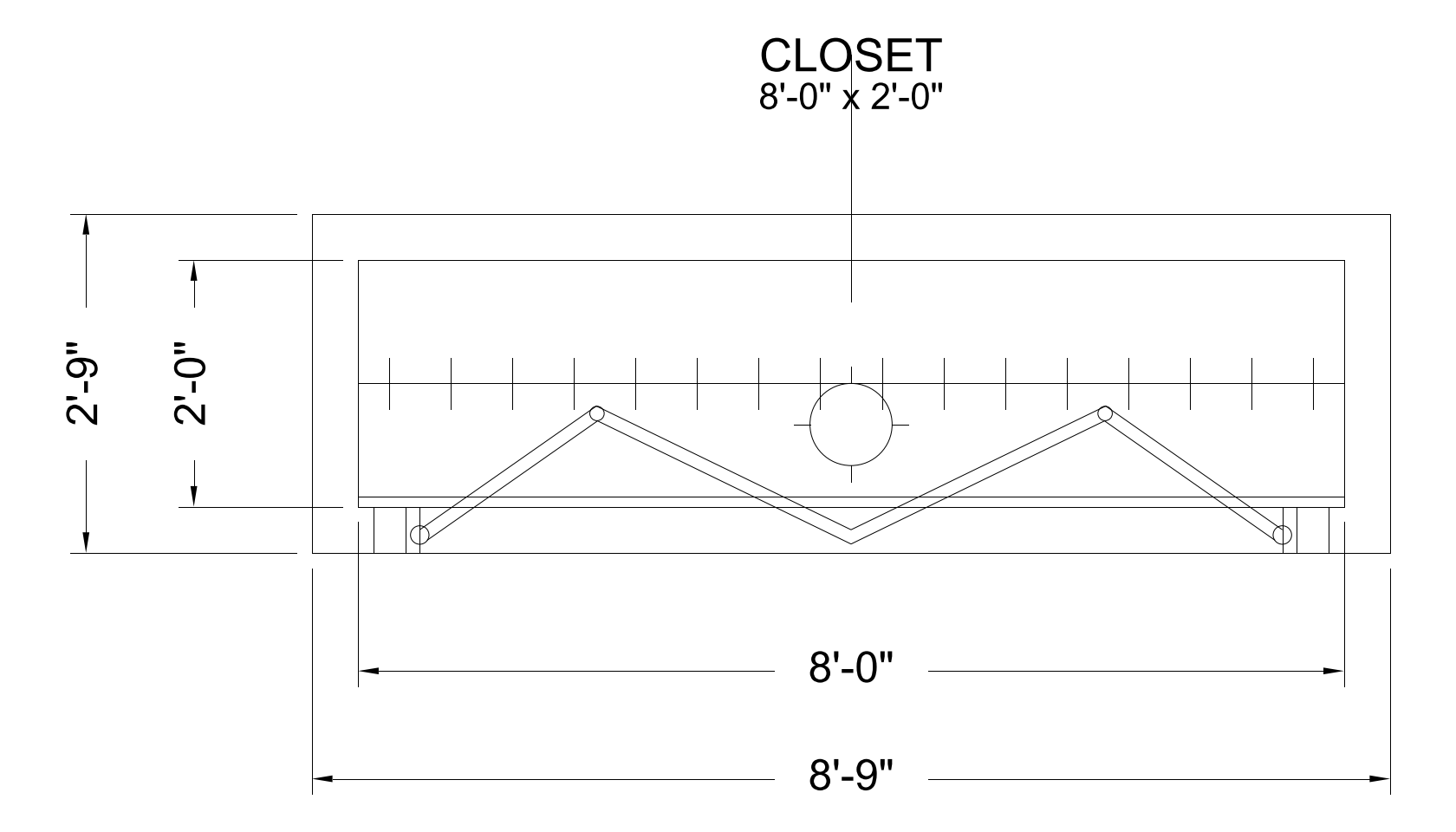

| Interior (W x D) | 8'-0" x 2'-0" |
|---|---|
| Floor area | 16 sf |
| Overall, outside face of wall | 8'-9" x 2'-9" |
| Workable range for this room type | 6 to 24 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (71 KB) DWG (23 KB) PNG (60 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
21 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.
A closet with a floor you stand on. Five by seven feet is the minimum, and both numbers are arithmetic: 24 in of hanging plus a 36 in aisle is 60 in, and 24 plus 36 plus 24 is 84 in.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.

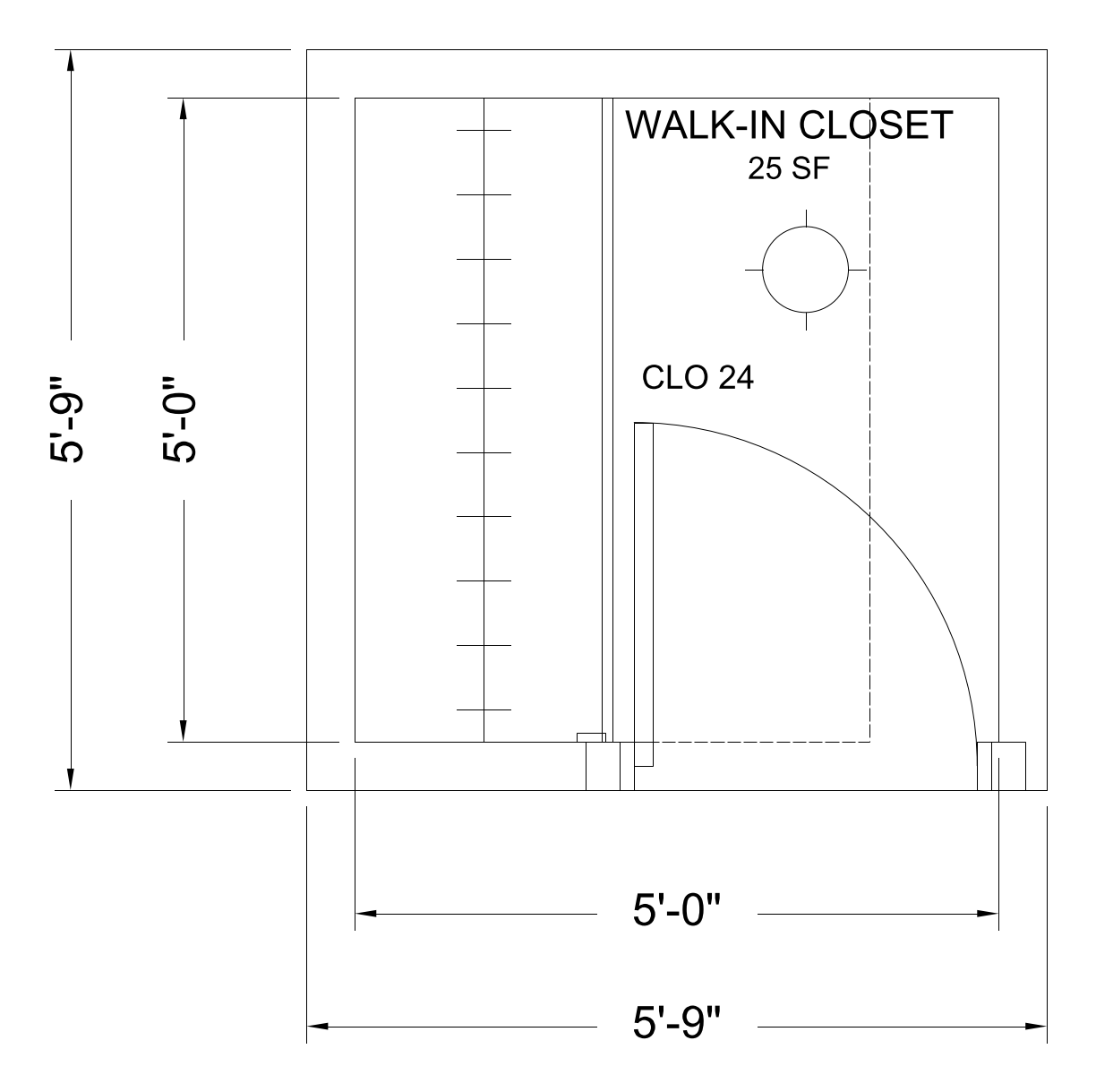

| Interior (W x D) | 5'-0" x 5'-0" |
|---|---|
| Floor area | 25 sf |
| Overall, outside face of wall | 5'-9" x 5'-9" |
| Workable range for this room type | 35 to 100 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (70 KB) DWG (23 KB) PNG (48 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
25 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.
A closet with a floor you stand on. Five by seven feet is the minimum, and both numbers are arithmetic: 24 in of hanging plus a 36 in aisle is 60 in, and 24 plus 36 plus 24 is 84 in.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.

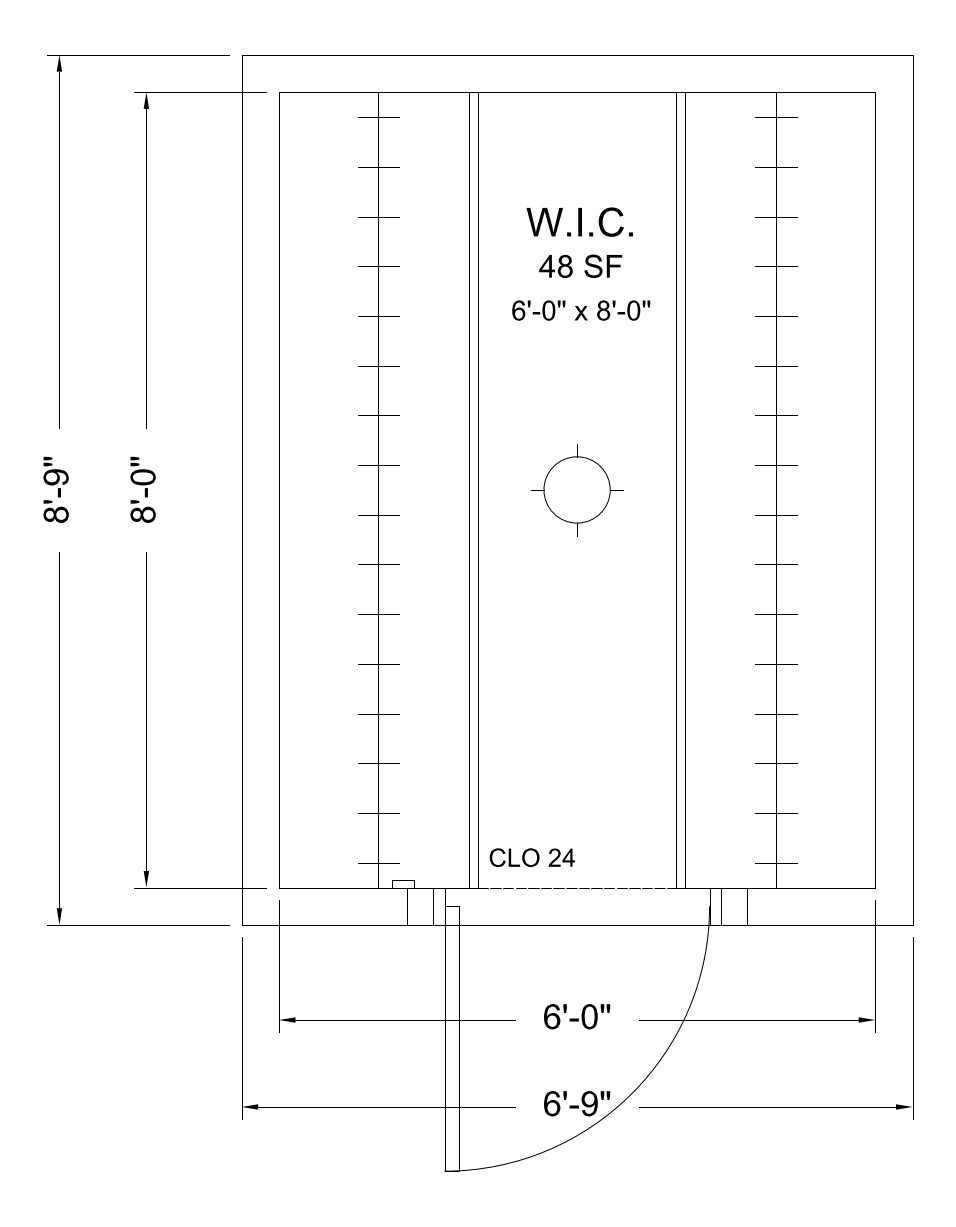

| Interior (W x D) | 6'-0" x 8'-0" |
|---|---|
| Floor area | 48 sf |
| Overall, outside face of wall | 6'-9" x 8'-9" |
| Workable range for this room type | 35 to 100 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (72 KB) DWG (24 KB) PNG (35 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
25 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.
Code sections are cited for drafting context only. A room drawn to a dimension in a model code is not a compliance determination: adoption, amendment and interpretation are local, and the governing edition in your jurisdiction may differ from the one cited. Nothing here is stamped or sealed. Verify against the code your project is permitted under and the actual specified products. See the license and terms.
