The kitchen is the room whose dimensions are set by appliances and by the distance between them. Counter runs come in fixed depths, appliances come in fixed widths, and the working distance between sink, range and refrigerator is what separates a kitchen that cooks from one that only looks like it does. The templates here cover the layouts production builders actually put in houses — galley, L-shape, L-with-peninsula, U-shape, island and open-concept — plus a commercial cook line drawn to line-equipment spacing rather than residential guidelines. Each one carries the work-triangle legs, the landing space each side of the cooking surface, and the aisle widths on the sheet as dimensioned clearance zones.
Residential layouts follow NKBA guideline dimensions; the commercial line follows equipment spacing and the code sections cited on that sheet.
7 templates, 108 to 448 sf. DXF R2018, drawn in inches. Free, no signup.
DWG (R2000, converted from the DXF and round-trip verified). PNG is the plan-view render.
A commercial kitchen built around a cook line: hot equipment under a hood on one side, a prep aisle facing it, and the three sinks the Food Code requires for hands, warewashing and mop water. The sinks are what set the wall length, not the cooking equipment.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 16'-0" x 28'-0" |
|---|---|
| Floor area | 448 sf |
| Overall, outside face of wall | 16'-10" x 28'-10" |
| Workable range for this room type | 240 to 1200 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (117 KB) DWG (44 KB) PNG (110 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
23 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.
Two parallel counter runs facing each other across a single work aisle. The most efficient kitchen per square foot and the one whose minimum width is set by arithmetic rather than by taste.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 9'-0" x 12'-0" |
|---|---|
| Floor area | 108 sf |
| Overall, outside face of wall | 9'-10" x 12'-9" |
| Workable range for this room type | 75 to 180 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (90 KB) DWG (32 KB) PNG (91 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
25 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.

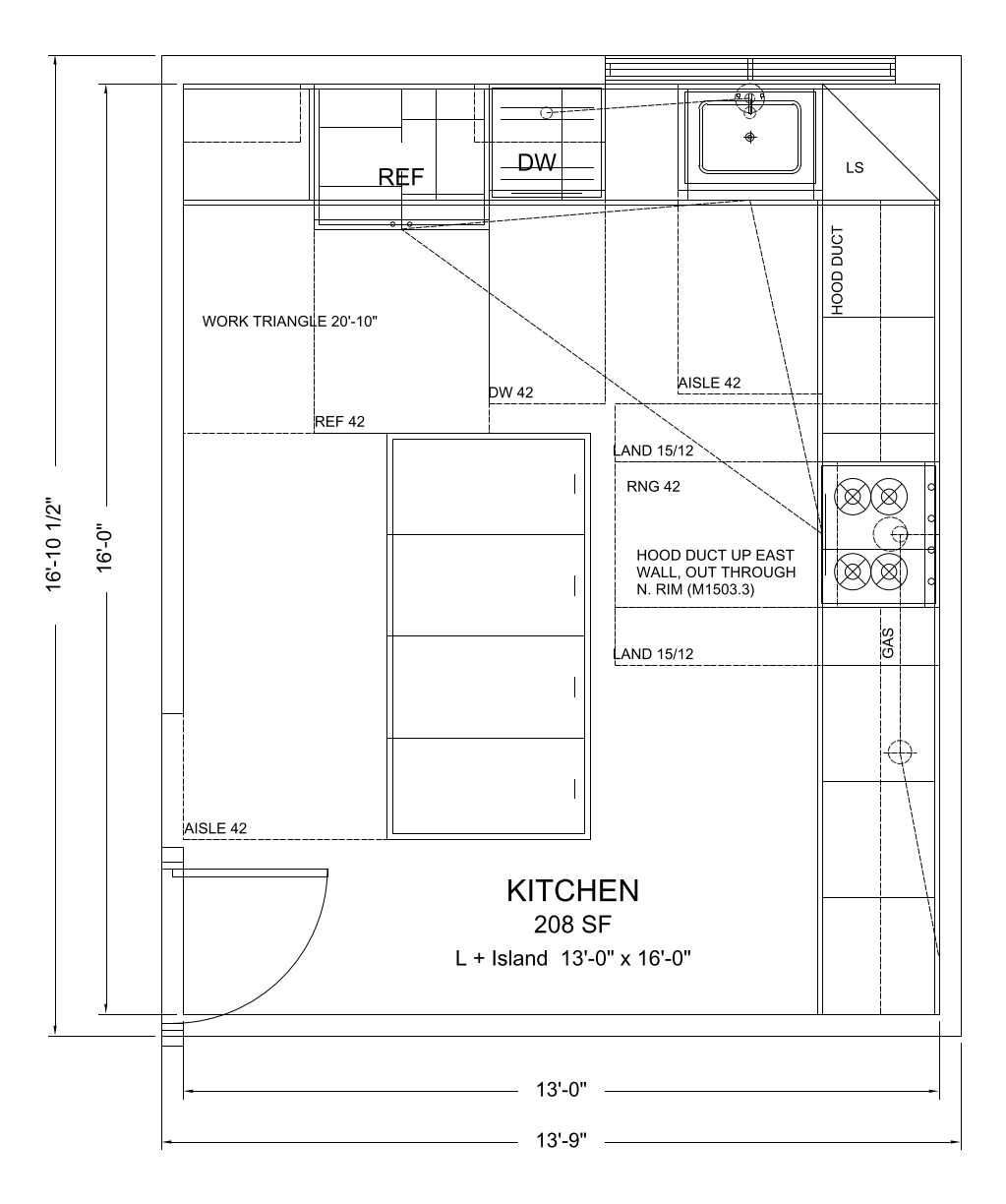

Perimeter runs plus a freestanding island. The island is the gate: it needs 42 in of clear floor on every side, which is why it belongs only in a room that is already large before the island is drawn.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 13'-0" x 16'-0" |
|---|---|
| Floor area | 208 sf |
| Overall, outside face of wall | 13'-9" x 16'-10" |
| Workable range for this room type | 168 to 320 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (92 KB) DWG (33 KB) PNG (83 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
25 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.
Two counter runs meeting at a corner, with the other two sides of the room open. The most forgiving kitchen shape, because the work aisle is the open floor rather than a slot between two walls.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 11'-6" x 13'-6" |
|---|---|
| Floor area | 155.25 sf |
| Overall, outside face of wall | 12'-3" x 14'-4" |
| Workable range for this room type | 80 to 200 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (95 KB) DWG (34 KB) PNG (114 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
25 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.

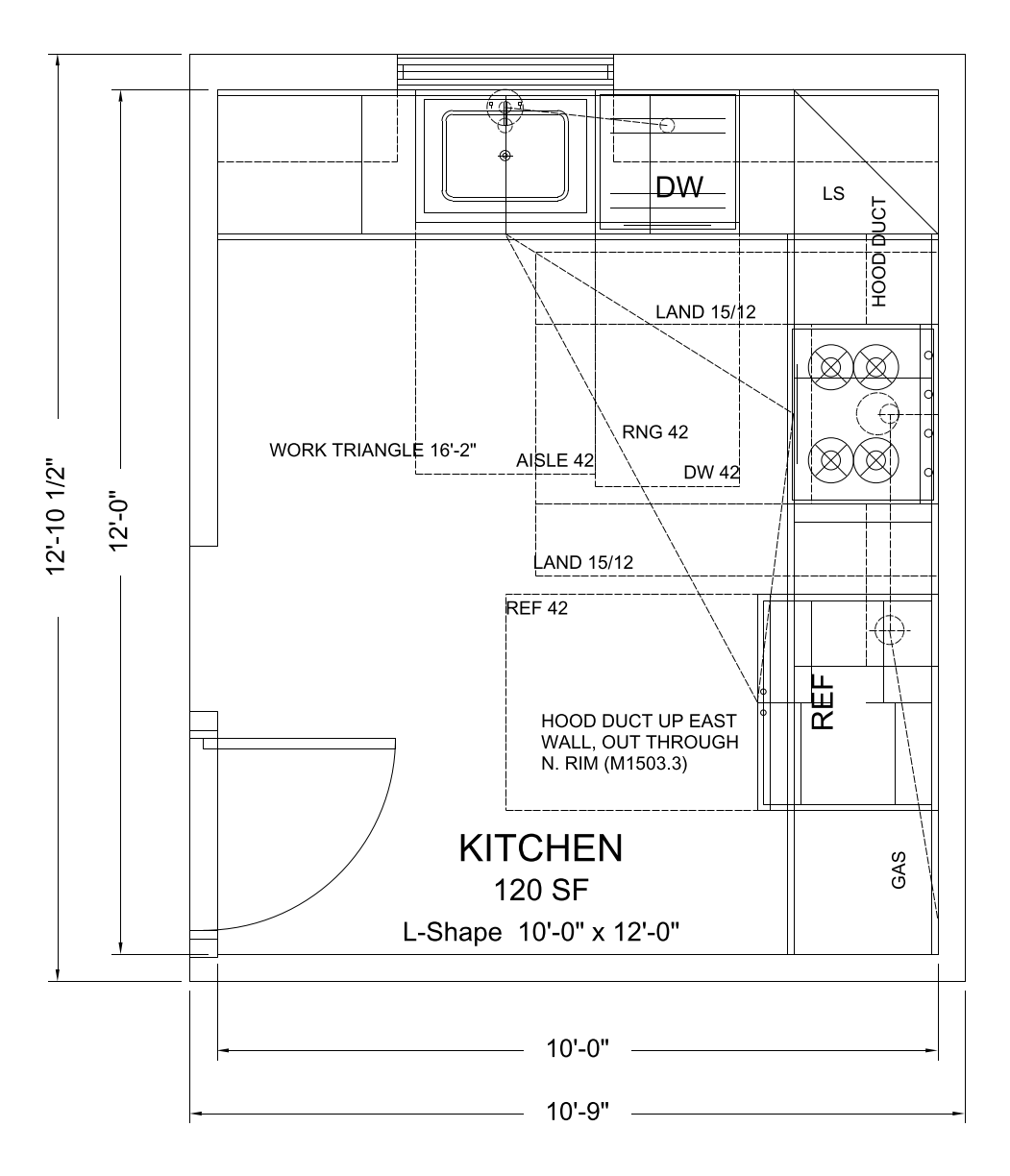

Two counter runs meeting at a corner, with the other two sides of the room open. The most forgiving kitchen shape, because the work aisle is the open floor rather than a slot between two walls.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 10'-0" x 12'-0" |
|---|---|
| Floor area | 120 sf |
| Overall, outside face of wall | 10'-9" x 12'-10" |
| Workable range for this room type | 80 to 200 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (90 KB) DWG (32 KB) PNG (96 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
25 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.

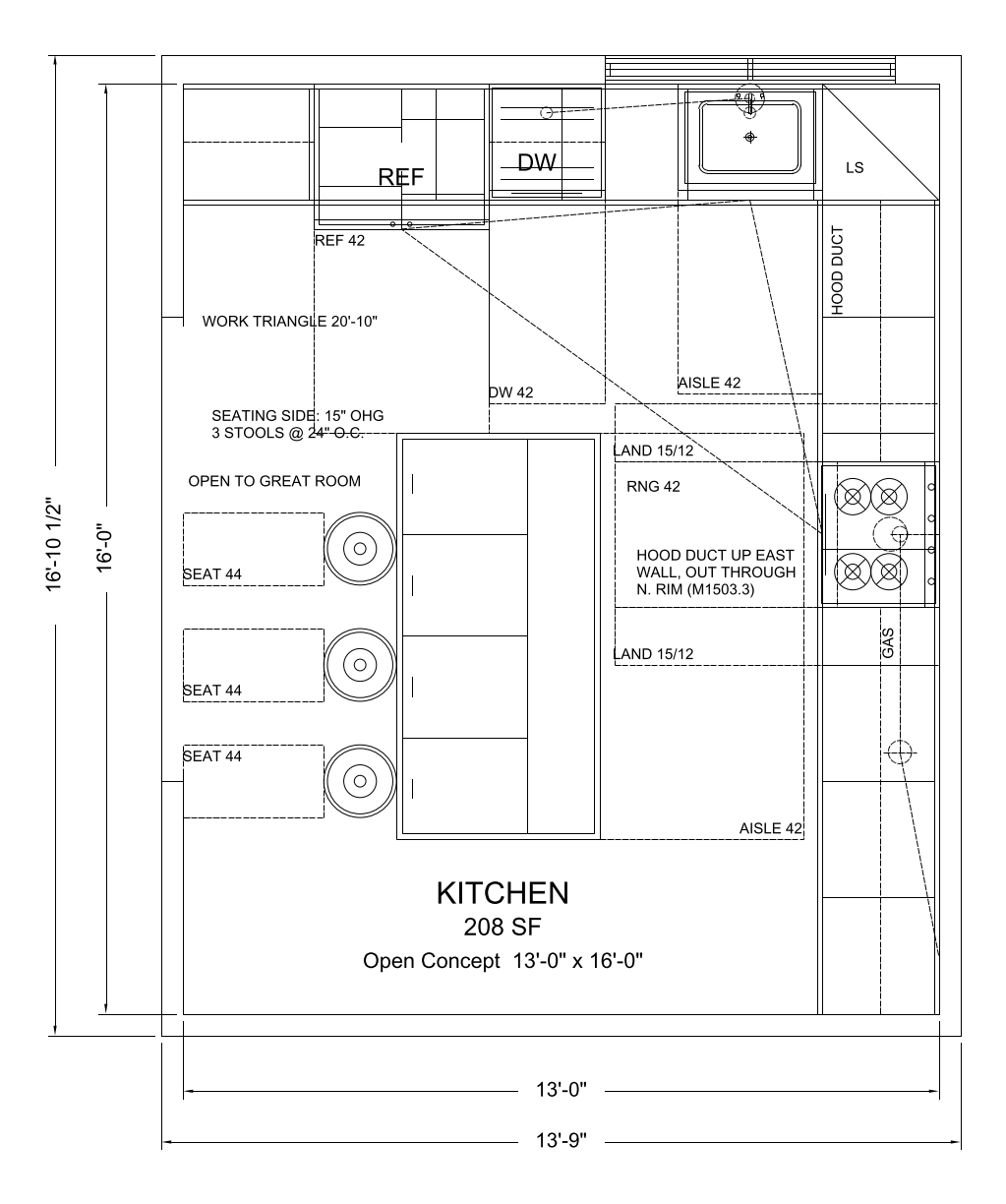

Perimeter runs plus a freestanding island. The island is the gate: it needs 42 in of clear floor on every side, which is why it belongs only in a room that is already large before the island is drawn.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 13'-0" x 16'-0" |
|---|---|
| Floor area | 208 sf |
| Overall, outside face of wall | 13'-9" x 16'-10" |
| Workable range for this room type | 168 to 320 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (95 KB) DWG (34 KB) PNG (107 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
23 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.

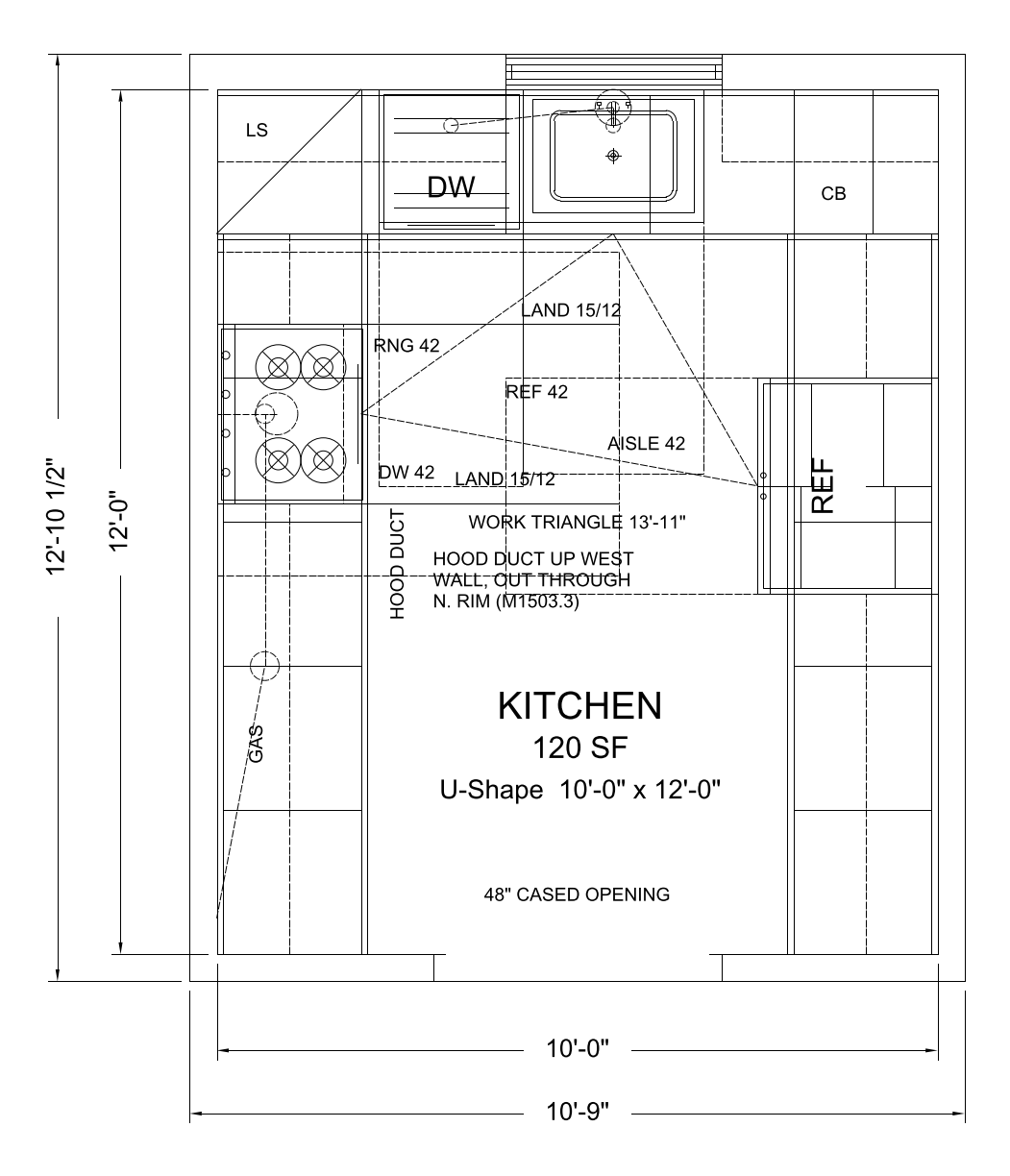

Three counter runs on three walls with one open end. It puts the most counter and the most storage in the least walking, and it is the shape that cannot be narrow in either direction.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 10'-0" x 12'-0" |
|---|---|
| Floor area | 120 sf |
| Overall, outside face of wall | 10'-9" x 12'-10" |
| Workable range for this room type | 80 to 220 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (92 KB) DWG (33 KB) PNG (96 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
23 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.
