An entry does two jobs that fight each other: it is the circulation funnel from the front door into the house, and it is storage for everything people take off when they come in. The door swing is the constraint — it cannot sweep across the closet opening, and it cannot land someone in a wall. The templates here cover a foyer with a coat closet and a mudroom with bench, hooks and cubbies. Both are drawn with the door swing and the clear landing at the door as real zones, so the room can be stretched without the entry sequence quietly breaking.
The coat closet is drawn as a default rather than an option; buyers protect closet space more than almost any other feature.
2 templates, 48 sf. DXF R2018, drawn in inches. Free, no signup.
DWG (R2000, converted from the DXF and round-trip verified). PNG is the plan-view render.
The landing spot inside the front door: enough floor for the door to swing fully open with somebody standing clear of it, and a coat closet within reach. About 6 by 8 ft.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 6'-0" x 8'-0" |
|---|---|
| Floor area | 48 sf |
| Overall, outside face of wall | 6'-9" x 8'-10" |
| Workable range for this room type | 24 to 120 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (76 KB) DWG (26 KB) PNG (52 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
24 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.

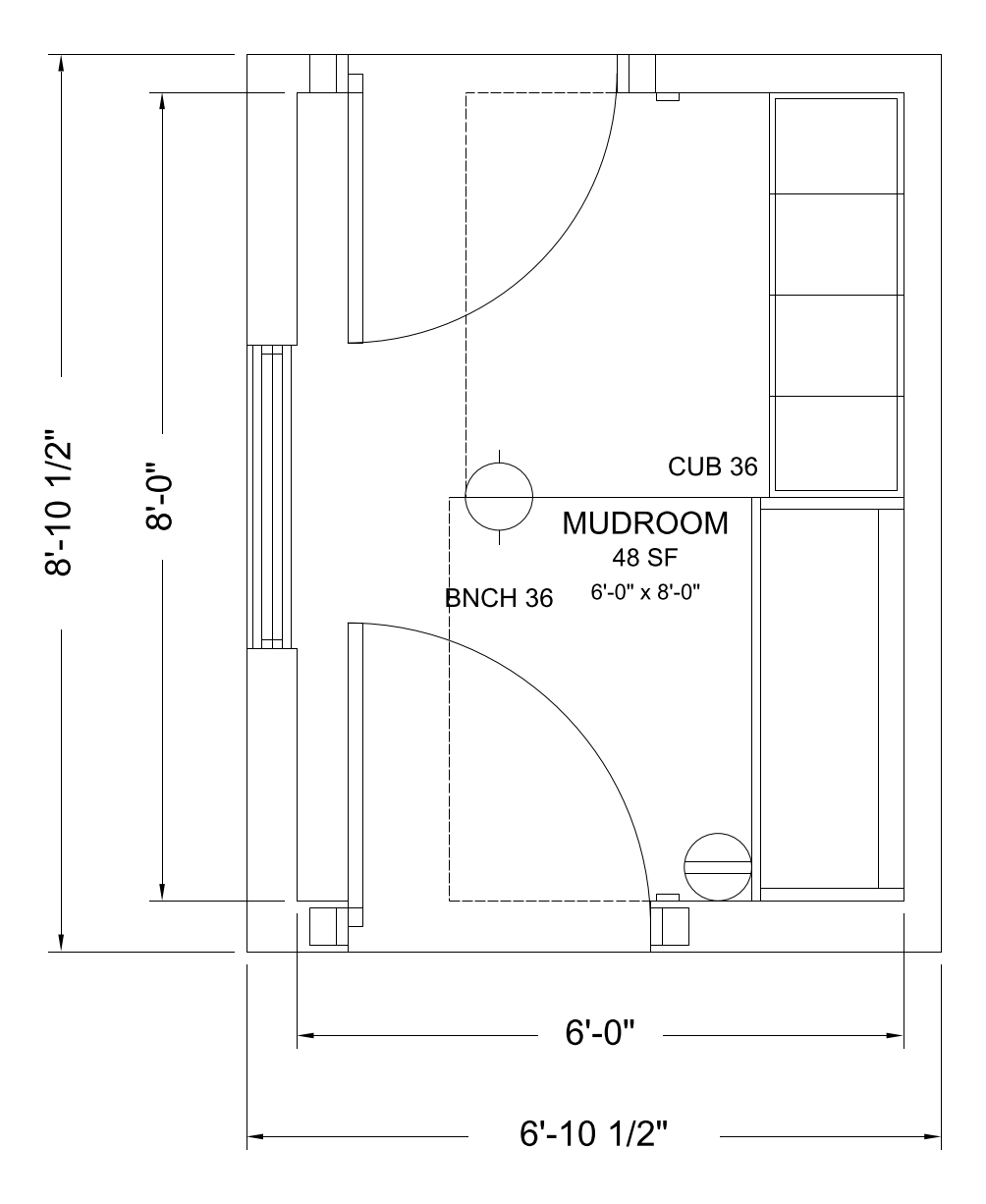

The working entry: a bench to sit on, hooks above it, and enough floor in front to bend over and pull a boot off. About 6 by 8 ft, usually between the garage and the kitchen.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 6'-0" x 8'-0" |
|---|---|
| Floor area | 48 sf |
| Overall, outside face of wall | 6'-10" x 8'-10" |
| Workable range for this room type | 30 to 120 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (76 KB) DWG (25 KB) PNG (52 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
25 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.
Code sections are cited for drafting context only. A room drawn to a dimension in a model code is not a compliance determination: adoption, amendment and interpretation are local, and the governing edition in your jurisdiction may differ from the one cited. Nothing here is stamped or sealed. Verify against the code your project is permitted under and the actual specified products. See the license and terms.
