4 templates, 35 to 1500 sf. DXF R2018, drawn in inches. Free, no signup.
DWG (R2000, converted from the DXF and round-trip verified). PNG is the plan-view render.
A private changing cubicle, with at least one accessible room carrying a 60 in turning space and a bench per ADA 803. The accessible one is roughly twice the size of the others.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 5'-0" x 7'-0" |
|---|---|
| Floor area | 35 sf |
| Overall, outside face of wall | 5'-9" x 7'-9" |
| Workable range for this room type | 18 to 60 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (79 KB) DWG (27 KB) PNG (238 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
22 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.
Where the truck backs in: a dock door, a leveler, and a clear apron inside deep enough that a loaded pallet jack can come off the leveler and turn.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 16'-0" x 20'-0" |
|---|---|
| Floor area | 320 sf |
| Overall, outside face of wall | 17'-0" x 20'-10" |
| Workable range for this room type | 170 to 1200 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (97 KB) DWG (33 KB) PNG (153 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
25 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.
The selling area: gondola runs with a 36 in accessible route between fixtures and a cash wrap near the exit. Fixture layout, not floor area, is what decides whether it is shoppable.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 30'-0" x 50'-0" |
|---|---|
| Floor area | 1500 sf |
| Overall, outside face of wall | 31'-0" x 51'-0" |
| Workable range for this room type | 200 to 20000 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (110 KB) DWG (39 KB) PNG (60 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
25 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.

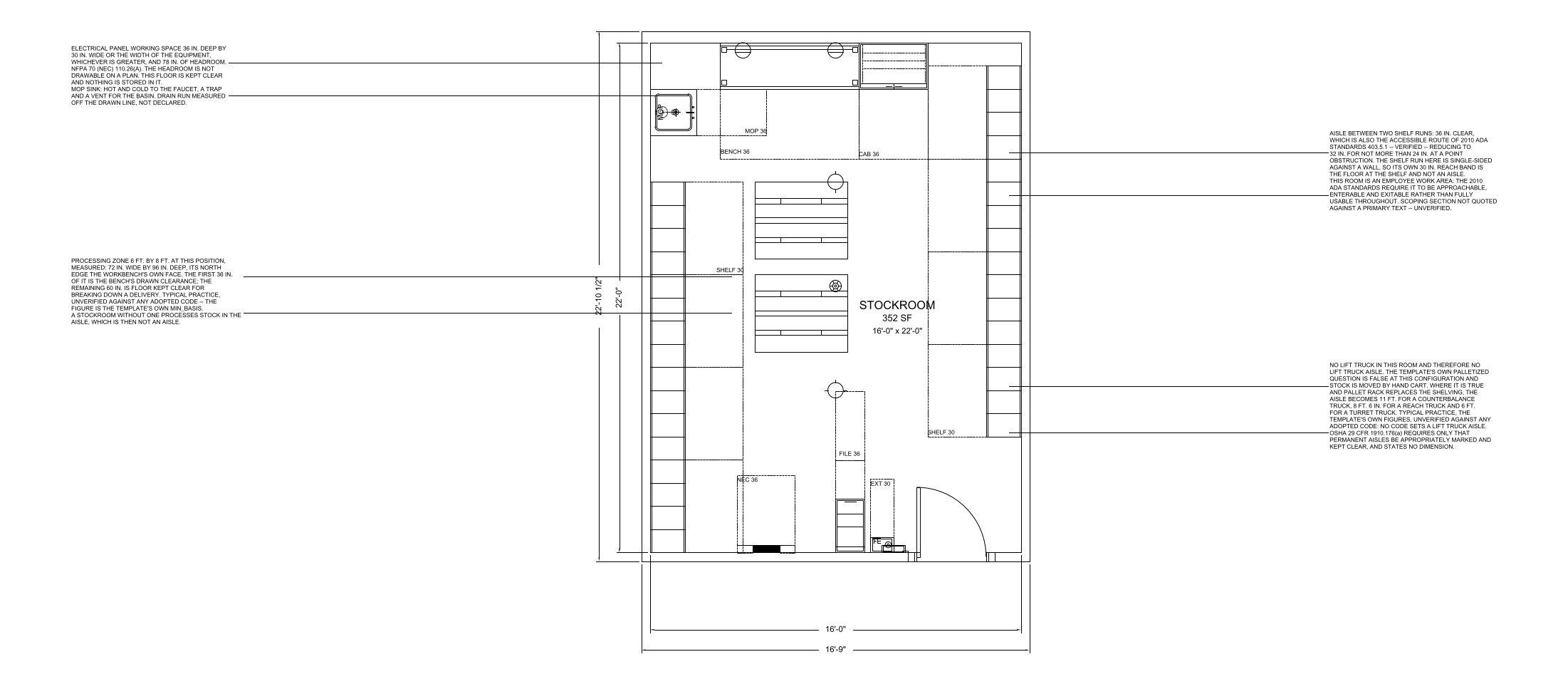

Back-of-house shelving plus a receiving and processing area. Usually 15 to 25 percent of the sales floor, and the receiving zone is what is undersized.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 16'-0" x 22'-0" |
|---|---|
| Floor area | 352 sf |
| Overall, outside face of wall | 16'-9" x 22'-10" |
| Workable range for this room type | 100 to 4000 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (103 KB) DWG (36 KB) PNG (156 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
25 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.
Code sections are cited for drafting context only. A room drawn to a dimension in a model code is not a compliance determination: adoption, amendment and interpretation are local, and the governing edition in your jurisdiction may differ from the one cited. Nothing here is stamped or sealed. Verify against the code your project is permitted under and the actual specified products. See the license and terms.
