6 templates, 132 to 432 sf. DXF R2018, drawn in inches. Free, no signup.
DWG (R2000, converted from the DXF and round-trip verified). PNG is the plan-view render.
A single-patient examination room with a table, a hand sink and a provider work surface. 80 sf is the FGI clear floor area figure and 10 by 12 ft is what actually gets built.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 11'-0" x 12'-0" |
|---|---|
| Floor area | 132 sf |
| Overall, outside face of wall | 11'-9" x 12'-9" |
| Workable range for this room type | 108 to 160 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (93 KB) DWG (32 KB) PNG (168 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
22 of 76 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.

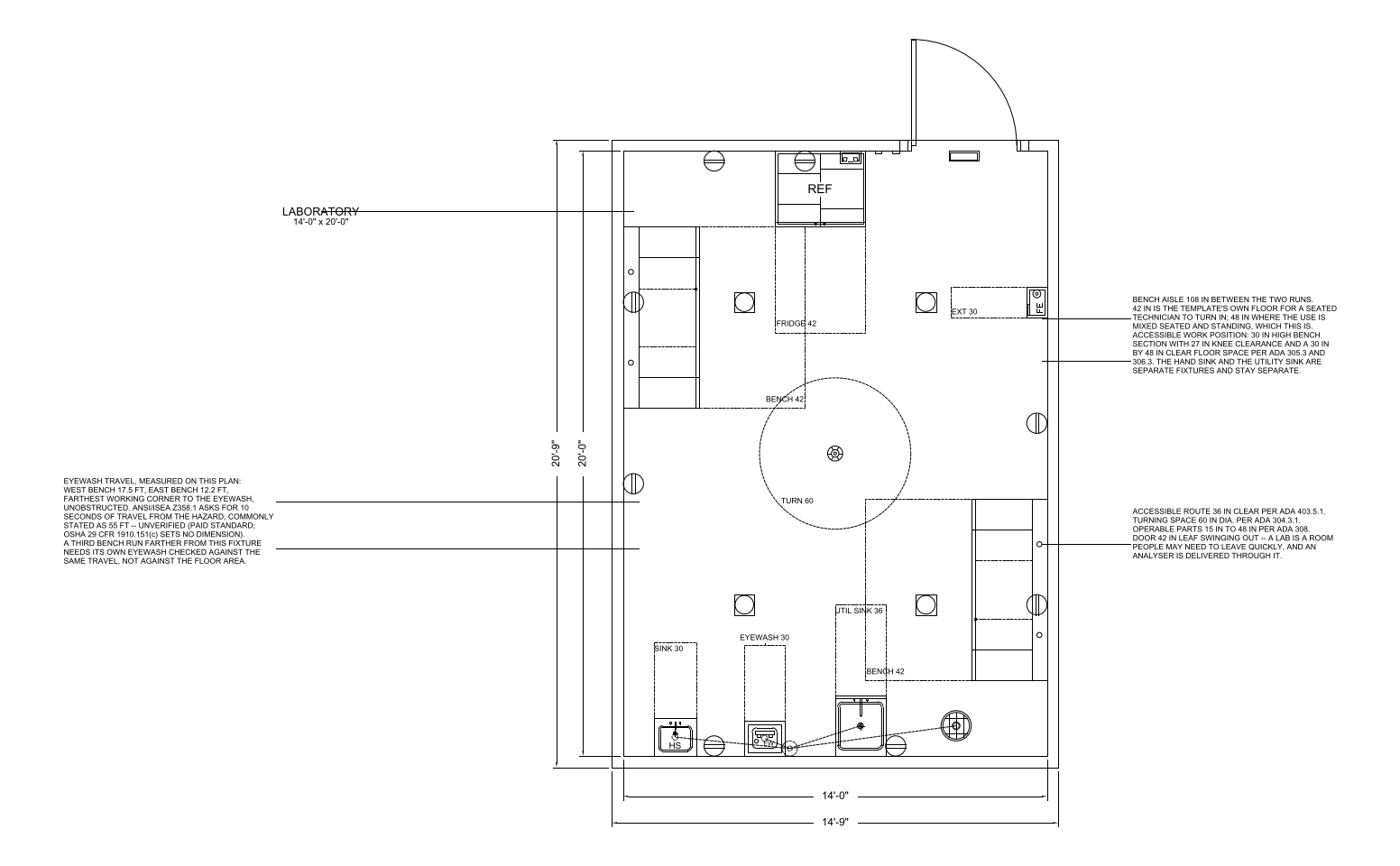

Bench work with a hand sink and an eyewash. Bench linear feet, not floor area, is the sizing unit, and the eyewash reach requirement is what places everything.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 14'-0" x 20'-0" |
|---|---|
| Floor area | 280 sf |
| Overall, outside face of wall | 14'-9" x 20'-9" |
| Workable range for this room type | 120 to 2000 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (101 KB) DWG (36 KB) PNG (111 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
22 of 76 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.

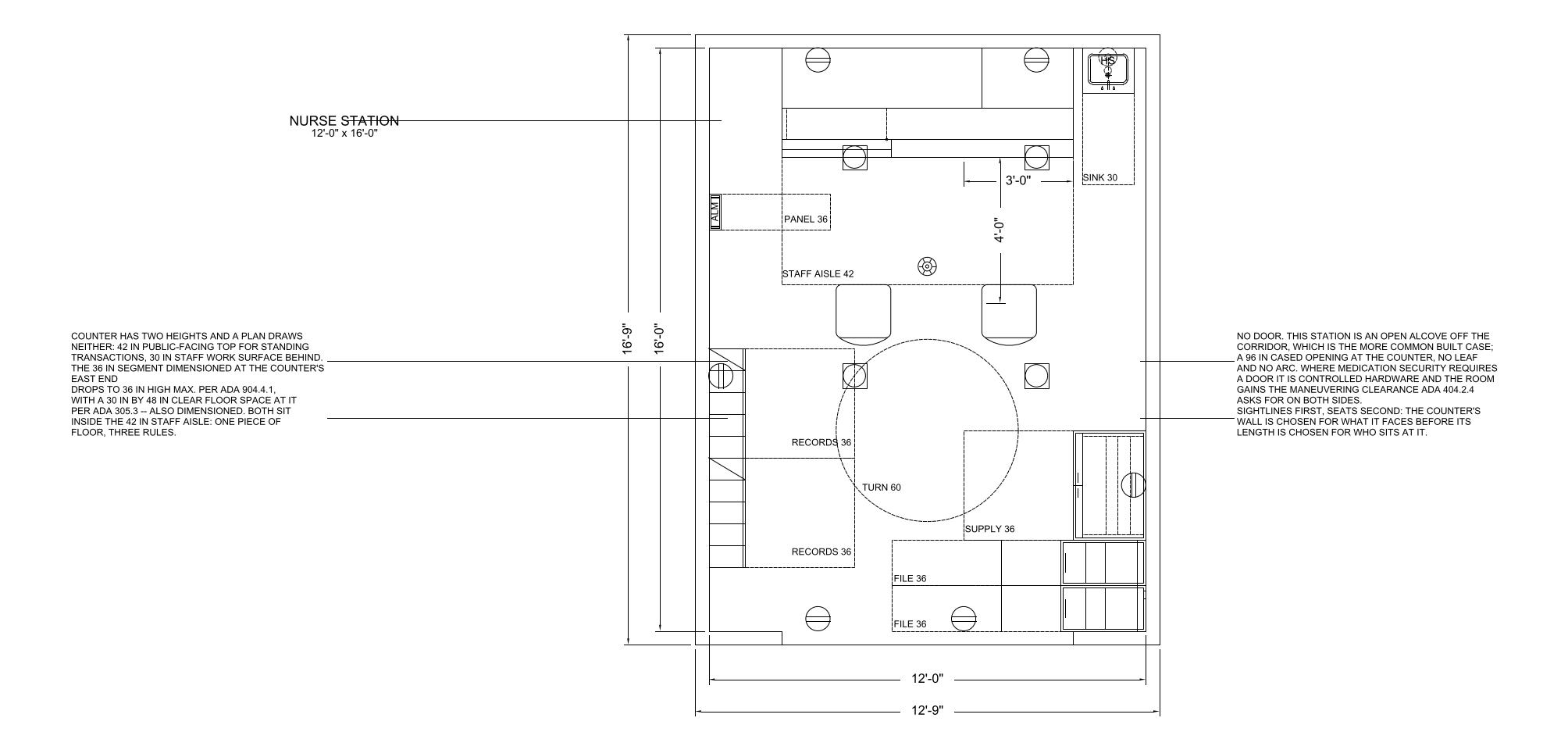

The staff work counter at the centre of a clinical pod, sized by how many people sit at it and by what it has to see. Sightlines, not floor area, are what place it.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 12'-0" x 16'-0" |
|---|---|
| Floor area | 192 sf |
| Overall, outside face of wall | 12'-9" x 16'-9" |
| Workable range for this room type | 120 to 600 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (95 KB) DWG (33 KB) PNG (128 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
19 of 76 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.

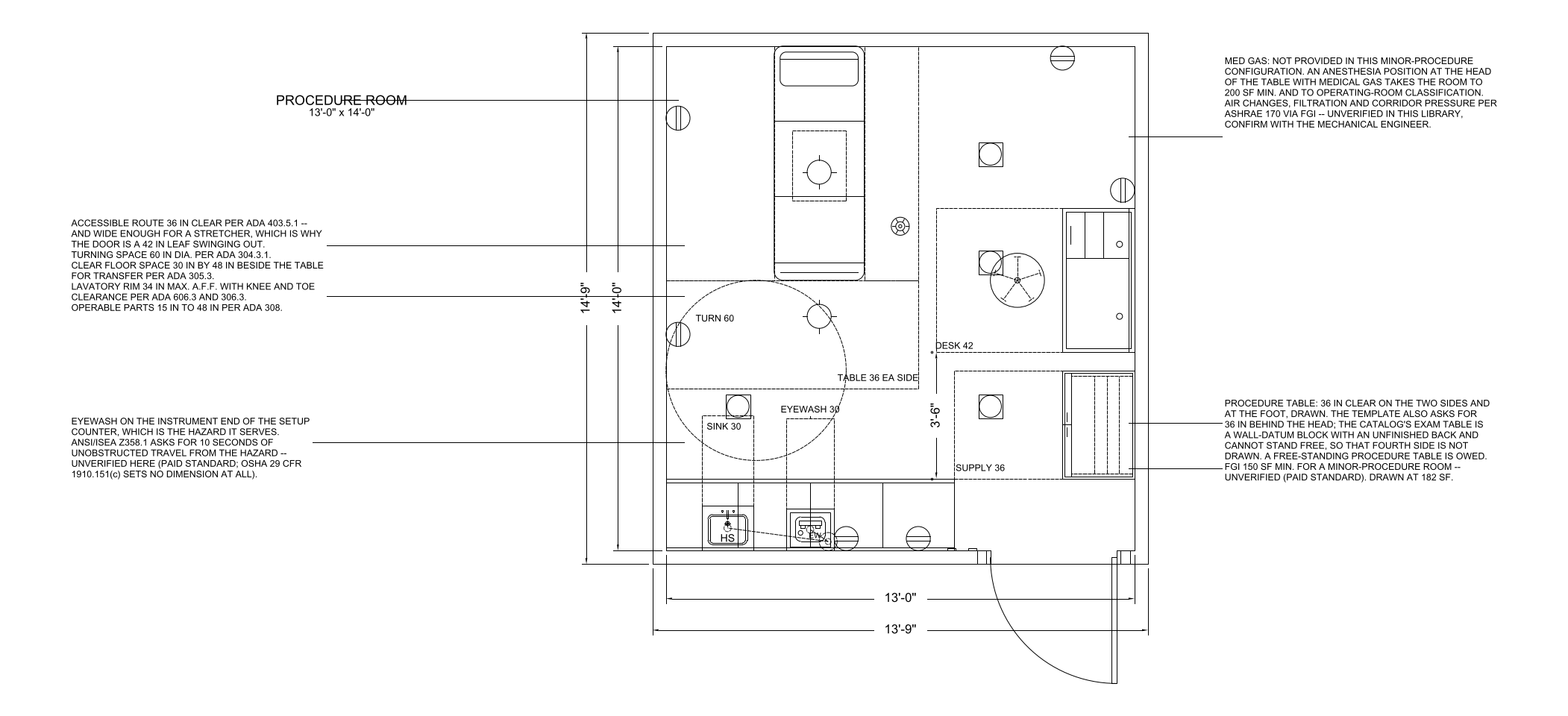

Larger than an exam room, 150 to 200 sf, sized so staff can work all the way around the table with equipment in the room and a clear path to the door.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 13'-0" x 14'-0" |
|---|---|
| Floor area | 182 sf |
| Overall, outside face of wall | 13'-9" x 14'-9" |
| Workable range for this room type | 150 to 280 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (99 KB) DWG (35 KB) PNG (188 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
22 of 76 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.

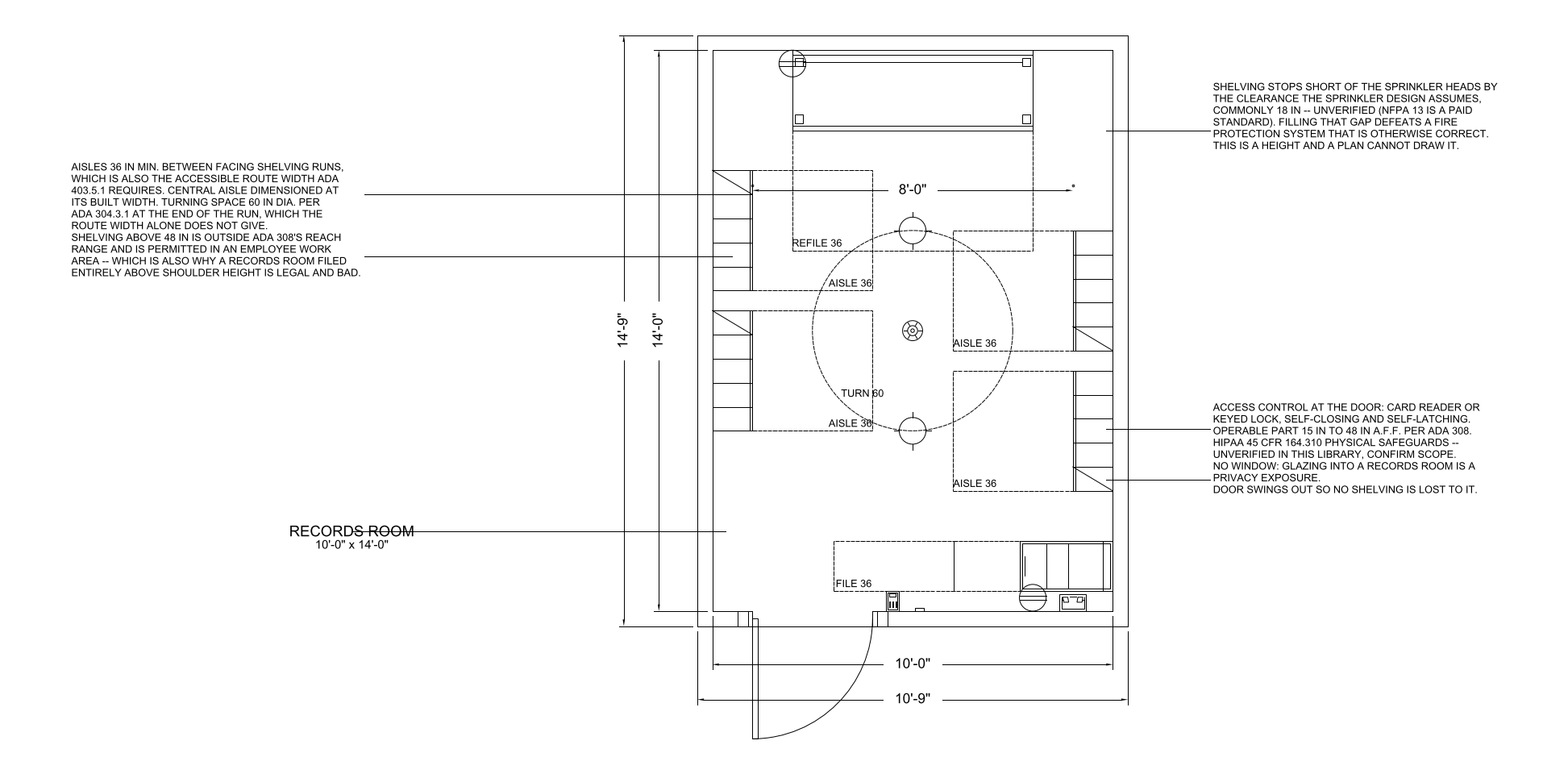

Shelving for paper records behind a controlled door. Linear feet of shelving is the sizing unit, and the room is shrinking everywhere records went electronic.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 10'-0" x 14'-0" |
|---|---|
| Floor area | 140 sf |
| Overall, outside face of wall | 10'-9" x 14'-9" |
| Workable range for this room type | 48 to 800 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (90 KB) DWG (31 KB) PNG (150 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
22 of 76 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.

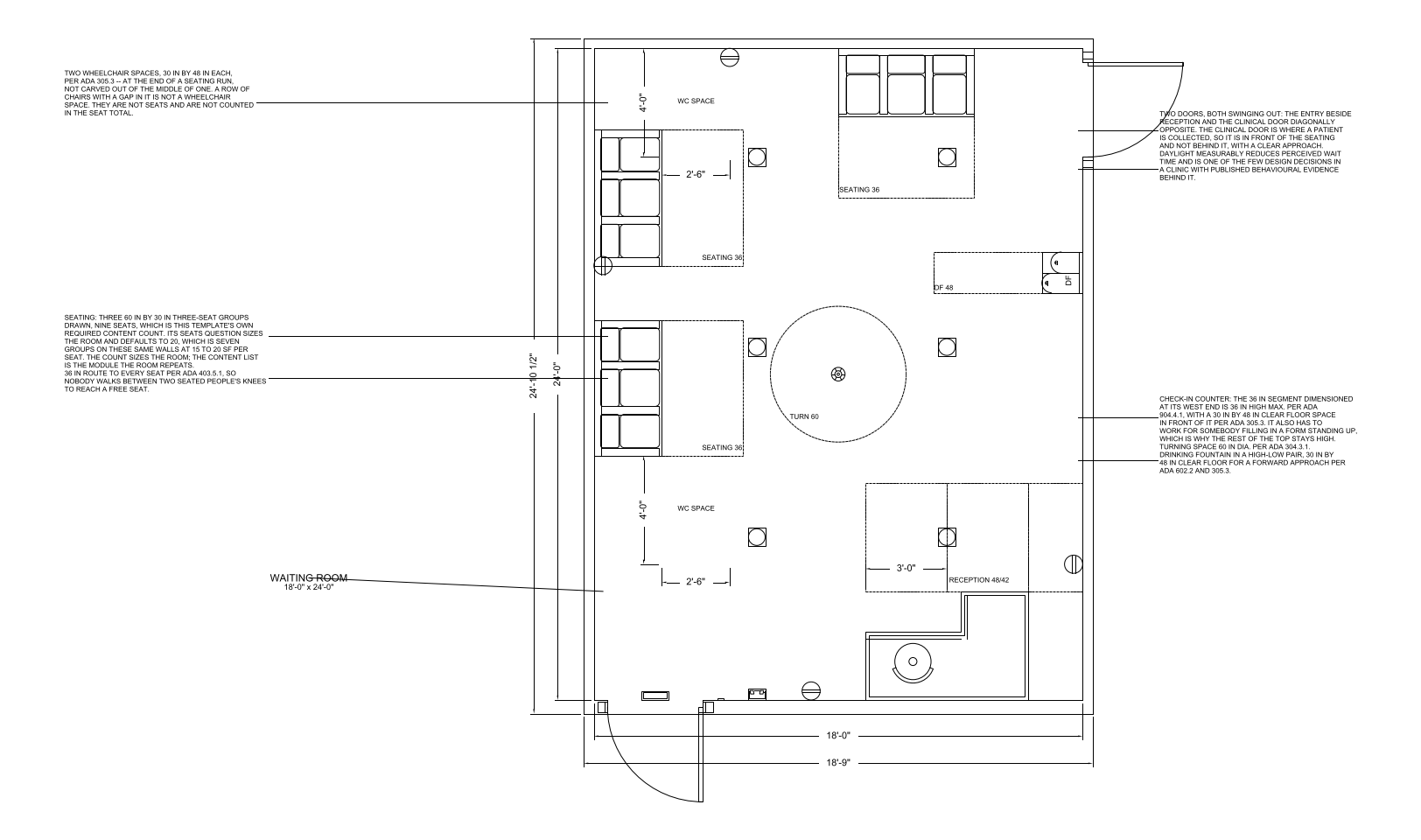

Seating for patients and the people who came with them, sized by seat count rather than by area. Roughly 15 to 20 sf per seat once the accessible route and the wheelchair spaces are counted.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 18'-0" x 24'-0" |
|---|---|
| Floor area | 432 sf |
| Overall, outside face of wall | 18'-9" x 24'-10" |
| Workable range for this room type | 150 to 1500 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (102 KB) DWG (36 KB) PNG (125 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
22 of 76 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.
Code sections are cited for drafting context only. A room drawn to a dimension in a model code is not a compliance determination: adoption, amendment and interpretation are local, and the governing edition in your jurisdiction may differ from the one cited. Nothing here is stamped or sealed. Verify against the code your project is permitted under and the actual specified products. See the license and terms.
