Almost every bathroom in North America is dimensioned by one fixture: the 60 inch alcove tub, which sets the narrow dimension of the standard full bath at five feet. Everything else is arranged around the water closet's required side and front clearance and the length of wet wall the plumbing can share. These templates run from a half bath through a full bath with tub, a three-quarter shower bath, two primary baths, and an accessible primary drawn to ICC A117.1 rather than ADA, because a dwelling unit is outside ADA's reach. Each sheet carries the drain, vent and trap-arm runs on a plumbing layer alongside the fixture clearances.
Accessible fixtures here cite A117.1, the standard a building code adopts for dwelling units. ADA governs the commercial restrooms, not these.
6 templates, 24 to 150 sf. DXF R2018, drawn in inches. Free, no signup.
DWG (R2000, converted from the DXF and round-trip verified). PNG is the plan-view render.
Toilet, lavatory and a 60 by 30 in alcove tub. The 5 by 8 ft version of this room is the most-built bathroom in North America, and it is 5 ft wide for exactly one reason.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 5'-0" x 9'-0" |
|---|---|
| Floor area | 45 sf |
| Overall, outside face of wall | 5'-10" x 9'-9" |
| Workable range for this room type | 40 to 110 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (79 KB) DWG (27 KB) PNG (60 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
26 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.

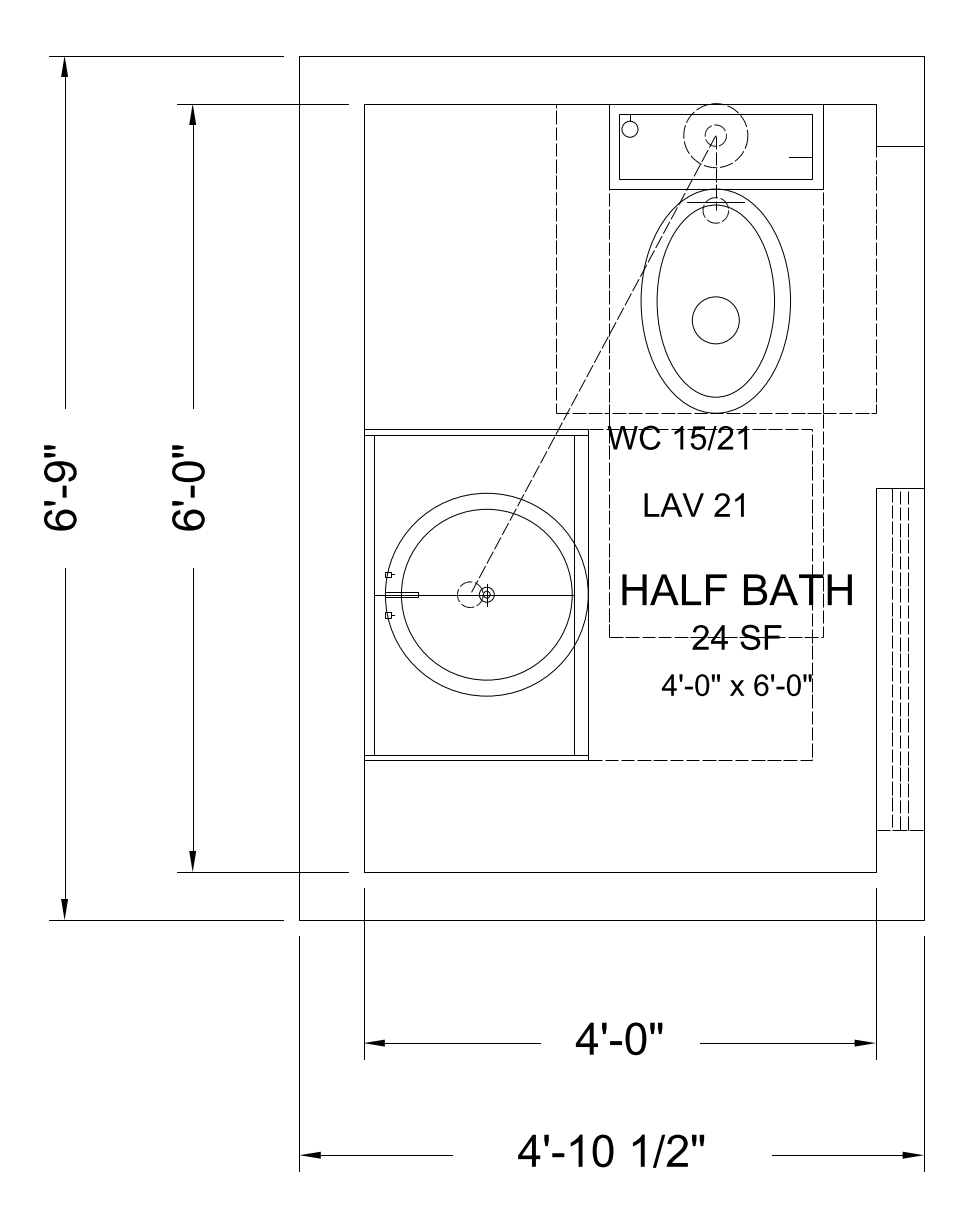

A toilet and a lavatory and nothing else. It is the smallest room in the house that still has a name, and it exists so a guest does not have to walk through the bedrooms.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 4'-0" x 6'-0" |
|---|---|
| Floor area | 24 sf |
| Overall, outside face of wall | 4'-10" x 6'-9" |
| Workable range for this room type | 18 to 40 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (72 KB) DWG (24 KB) PNG (69 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
25 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.
Two lavatories, a toilet, a tub and a separate shower, with linen storage. It is the only bath in a house that carries two bathing fixtures, and that pair is what sets its size.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 10'-0" x 12'-0" |
|---|---|
| Floor area | 120 sf |
| Overall, outside face of wall | 10'-9" x 12'-10" |
| Workable range for this room type | 80 to 250 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (84 KB) DWG (29 KB) PNG (71 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
26 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.

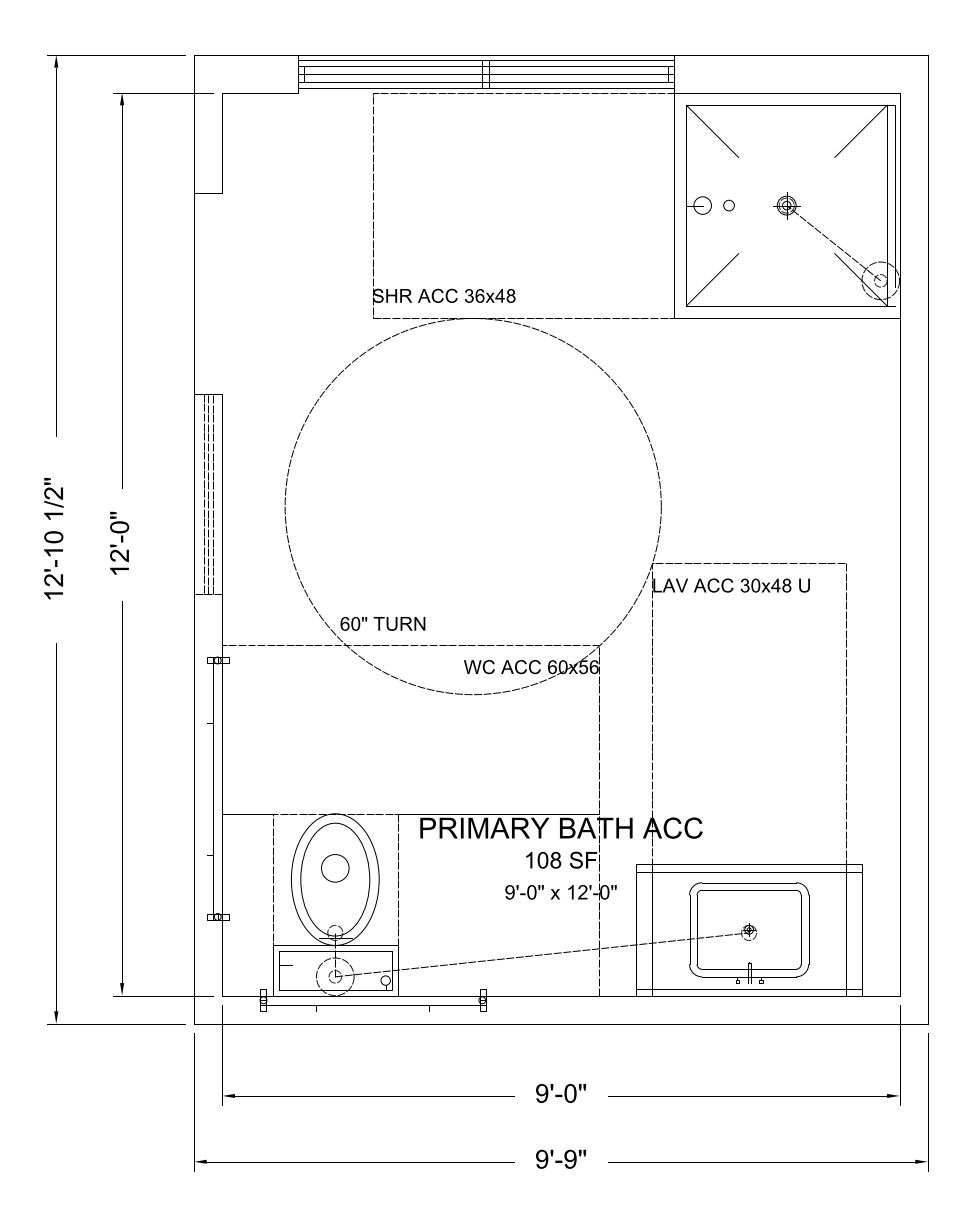

A primary bath laid out to the dimensional standards the accessible-design sets for public buildings, applied voluntarily in a house. A 60 in turning circle, a 60 by 56 in clear space at the toilet, a roll-in or transfer shower, and knee clearance under one lavatory.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 9'-0" x 12'-0" |
|---|---|
| Floor area | 108 sf |
| Overall, outside face of wall | 9'-9" x 12'-10" |
| Workable range for this room type | 64 to 250 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (83 KB) DWG (29 KB) PNG (72 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
26 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.
A primary bath in which the toilet has its own room: an enclosed 36 by 66 in compartment with a pocket door, off the main wet wall. Everything else is the primary bath -- two lavatories, a tub and a separate shower -- and the compartment is what sets the size, because it costs about 20 sf including its door approach on top of a room that was already full.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 11'-6" x 13'-0" |
|---|---|
| Floor area | 149.5 sf |
| Overall, outside face of wall | 12'-3" x 13'-10" |
| Workable range for this room type | 120 to 250 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (87 KB) DWG (30 KB) PNG (78 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
26 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.

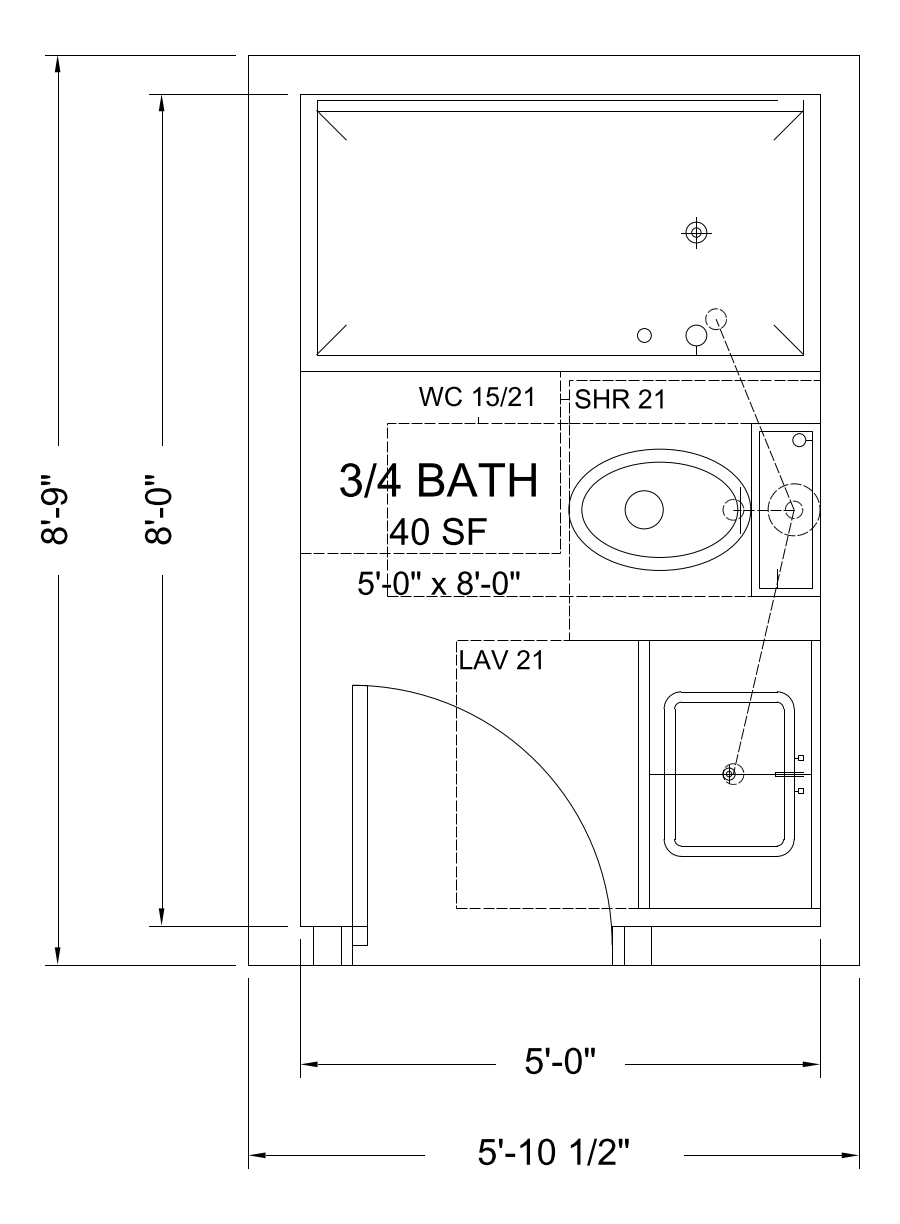

A toilet, a lavatory and a shower, with no tub. This is the bath that goes in where a tub will not fit, and the shower is what lets the room be a foot narrower than a full bath.
The sheet carries the fixture clearances as drawn geometry on their own layer, with the dimension strings and room notes outside the walls.
| Interior (W x D) | 5'-0" x 8'-0" |
|---|---|
| Floor area | 40 sf |
| Overall, outside face of wall | 5'-10" x 8'-9" |
| Workable range for this room type | 35 to 90 sf |
| Units | inches |
Every one is a block from the CADdillo library, inserted — not drawn for this sheet. Linked where the block has a library page.
DXF (78 KB) DWG (26 KB) PNG (63 KB)
"Verified" means the citation was checked against the source text we hold. "Unverified" means it has not been, and should be read as a pointer to look the section up rather than as a quotation of it.
25 of 121 checks graded, zero defects. This template is published because it graded clean.
A single room on its own sheet is not a whole building, so the checks that grade a floor plate — exit counts, circulation share, fixture counts against an occupant load — have no subject here. They are listed rather than counted as passes.
Code sections are cited for drafting context only. A room drawn to a dimension in a model code is not a compliance determination: adoption, amendment and interpretation are local, and the governing edition in your jurisdiction may differ from the one cited. Nothing here is stamped or sealed. Verify against the code your project is permitted under and the actual specified products. See the license and terms.
