Palm Tree CAD Blocks

A set of palm symbols for warm-climate site plans, each drawn the way the plant reads from above. Fan palms - sabal (cabbage palm) and Mexican fan palm - radiate palmate leaves; feather palms - queen, Canary Island date and Medjool date - carry pinnate fronds; the pygmy date palm and the sago cycad cover courtyards and containers; and the Mediterranean fan palm is a three-trunk clump. Every block is sized to its mature crown, from 4 ft to 25 ft, with the trunk dot at the real trunk. Free DXF downloads drawn to scale in inches.

16 blocks, 16 downloads on this page. DXF R2018, drawn in inches. Free, no signup.

8-foot Sabal Palm (Cabbage Palm) 96in x 96in
Download 8-foot Sabal Palm (Cabbage Palm) Open in editor

DWG (R2000, converted from the DXF). PNG is the plan-view preview.

8-foot Sabal Palm (Cabbage Palm) - plan view, 96in x 96in
8-foot Sabal Palm (Cabbage Palm) - plan view, 96in x 96in

8-foot Sabal Palm (Cabbage Palm)

Landscaping - datum: trunk center - default footprint 96in x 96in

8-foot Sabal Palm (Cabbage Palm) - plan view CAD block
8-foot Sabal Palm (Cabbage Palm) - plan view, 96in x 96in

Dimensions

Plan footprint (W x H)96in x 96in
Unitsinches
DXF versionR2018
Insertion datumtrunk center

Parameters

ParameterDefaultRange / options
Diameter96in72in–180in

Download

Download 8-foot Sabal Palm (Cabbage Palm) Open in editor

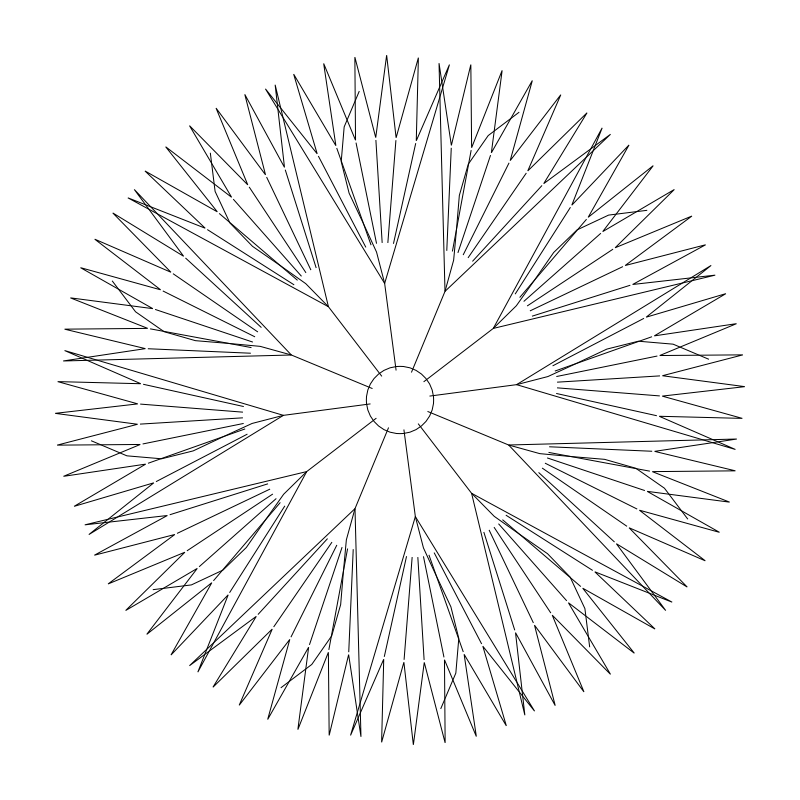

12-foot Sabal Palm (Cabbage Palm)

Landscaping - datum: trunk center - default footprint 144in x 144in

12-foot Sabal Palm (Cabbage Palm) - plan view CAD block
12-foot Sabal Palm (Cabbage Palm) - plan view, 144in x 144in

Dimensions

Plan footprint (W x H)144in x 144in
Unitsinches
DXF versionR2018
Insertion datumtrunk center

Parameters

ParameterDefaultRange / options
Diameter144in72in–180in

Download

Download 12-foot Sabal Palm (Cabbage Palm) Open in editor

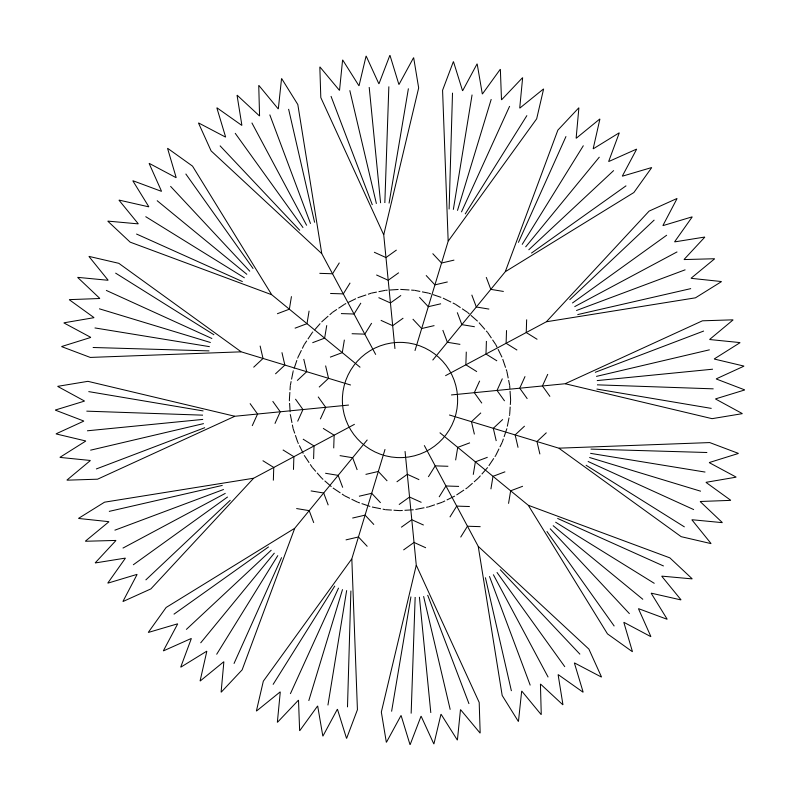

8-foot Mexican Fan Palm

Landscaping - datum: trunk center - default footprint 96in x 96in

8-foot Mexican Fan Palm - plan view CAD block
8-foot Mexican Fan Palm - plan view, 96in x 96in

Dimensions

Plan footprint (W x H)96in x 96in
Unitsinches
DXF versionR2018
Insertion datumtrunk center

Parameters

ParameterDefaultRange / options
Diameter96in72in–180in

Download

Download 8-foot Mexican Fan Palm Open in editor

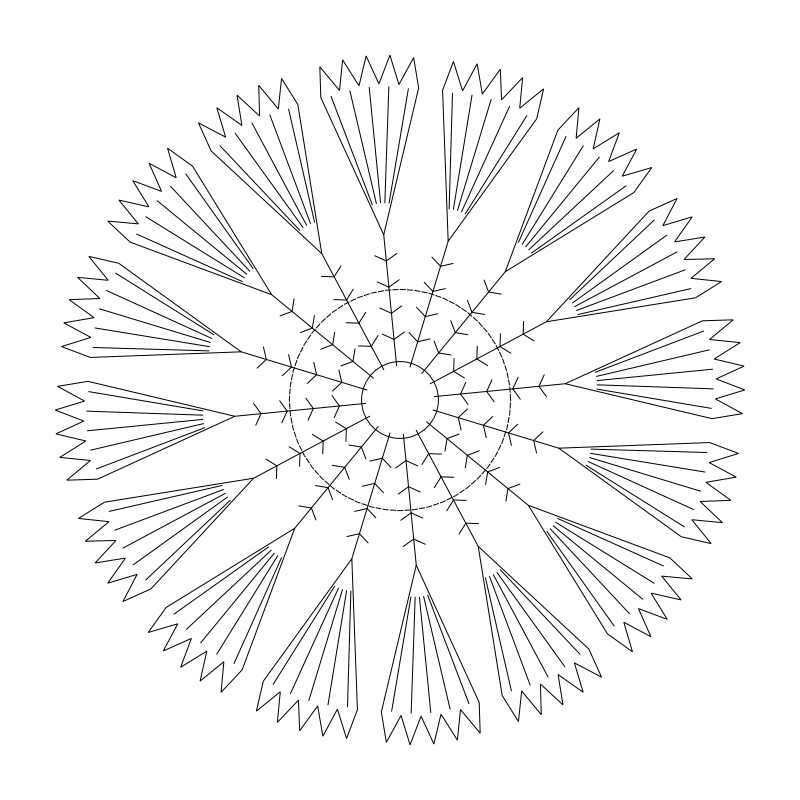

12-foot Mexican Fan Palm

Landscaping - datum: trunk center - default footprint 144in x 144in

12-foot Mexican Fan Palm - plan view CAD block
12-foot Mexican Fan Palm - plan view, 144in x 144in

Dimensions

Plan footprint (W x H)144in x 144in
Unitsinches
DXF versionR2018
Insertion datumtrunk center

Parameters

ParameterDefaultRange / options
Diameter144in72in–180in

Download

Download 12-foot Mexican Fan Palm Open in editor

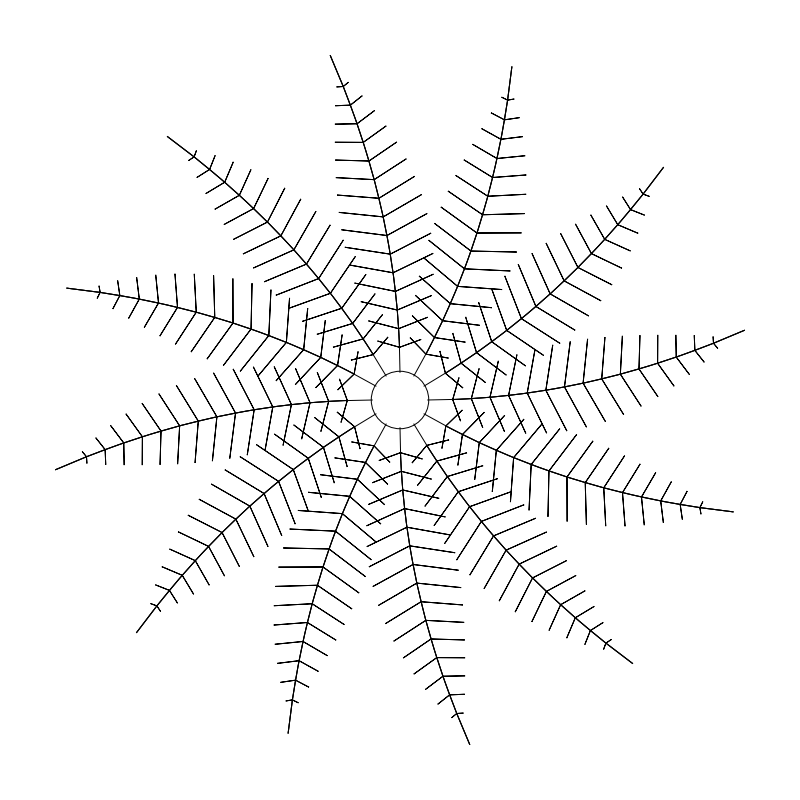

12-foot Queen Palm

Landscaping - datum: trunk center - default footprint 144in x 144in

12-foot Queen Palm - plan view CAD block
12-foot Queen Palm - plan view, 144in x 144in

Dimensions

Plan footprint (W x H)144in x 144in
Unitsinches
DXF versionR2018
Insertion datumtrunk center

Parameters

ParameterDefaultRange / options
Diameter144in96in–216in

Download

Download 12-foot Queen Palm Open in editor

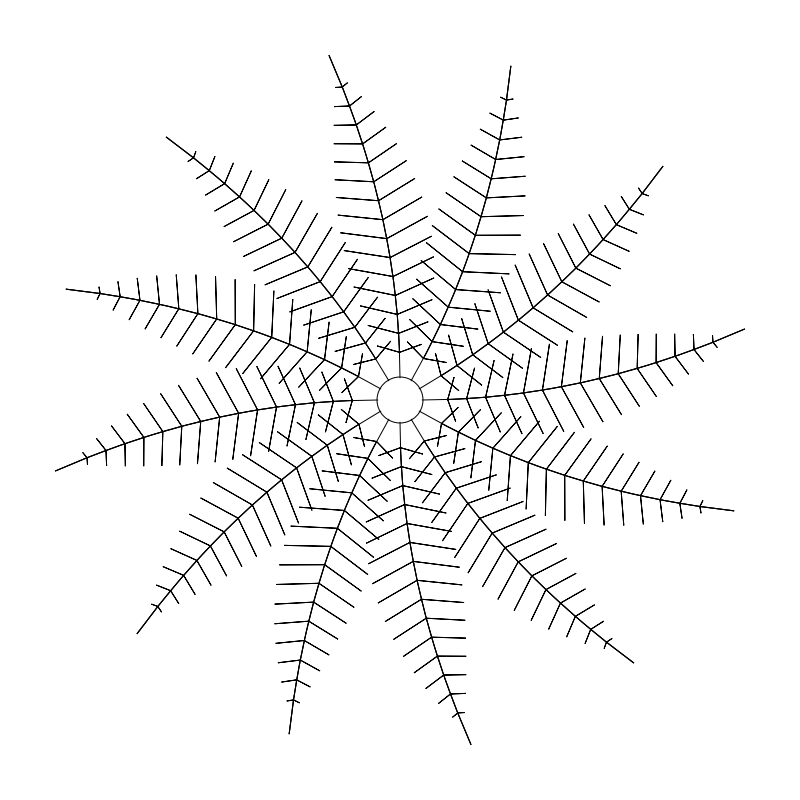

15-foot Queen Palm

Landscaping - datum: trunk center - default footprint 180in x 180in

15-foot Queen Palm - plan view CAD block
15-foot Queen Palm - plan view, 180in x 180in

Dimensions

Plan footprint (W x H)180in x 180in
Unitsinches
DXF versionR2018
Insertion datumtrunk center

Parameters

ParameterDefaultRange / options
Diameter180in96in–216in

Download

Download 15-foot Queen Palm Open in editor

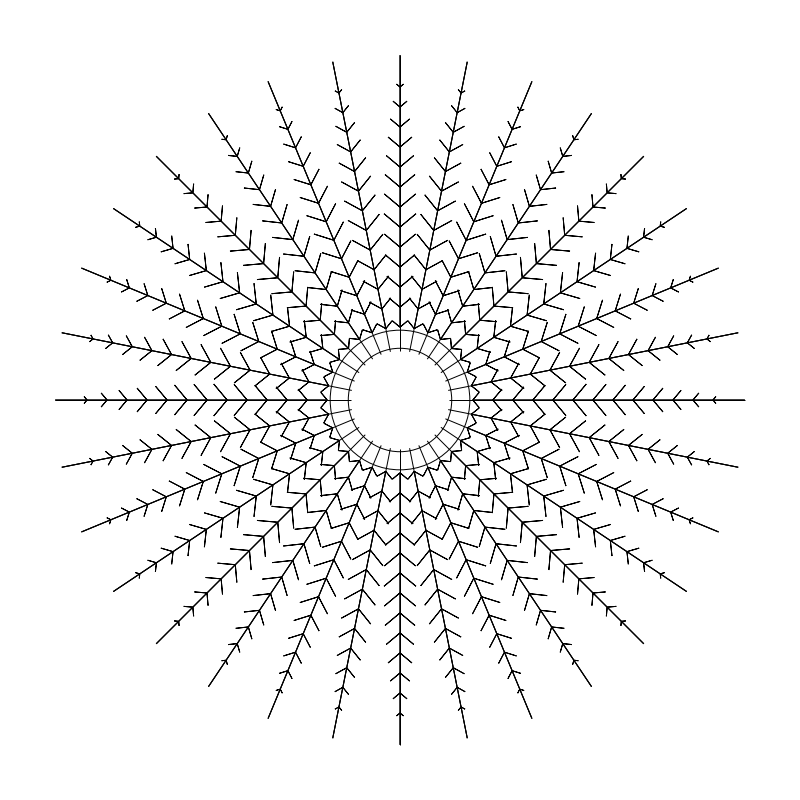

20-foot Canary Island Date Palm

Landscaping - datum: trunk center - default footprint 240in x 240in

20-foot Canary Island Date Palm - plan view CAD block
20-foot Canary Island Date Palm - plan view, 240in x 240in

Dimensions

Plan footprint (W x H)240in x 240in
Unitsinches
DXF versionR2018
Insertion datumtrunk center

Parameters

ParameterDefaultRange / options
Diameter240in180in–360in

Download

Download 20-foot Canary Island Date Palm Open in editor

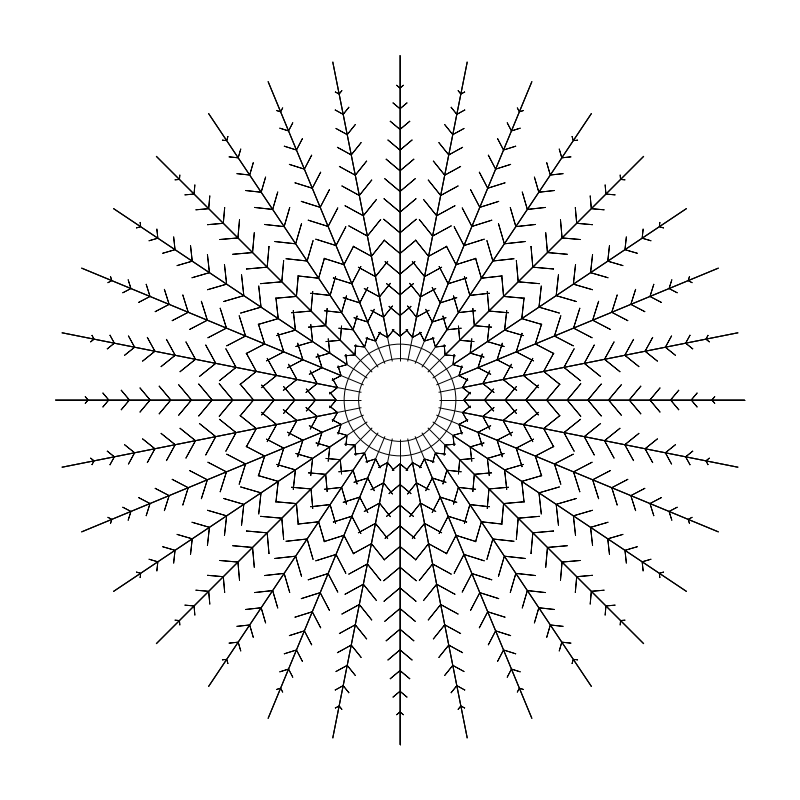

25-foot Canary Island Date Palm

Landscaping - datum: trunk center - default footprint 300in x 300in

25-foot Canary Island Date Palm - plan view CAD block
25-foot Canary Island Date Palm - plan view, 300in x 300in

Dimensions

Plan footprint (W x H)300in x 300in
Unitsinches
DXF versionR2018
Insertion datumtrunk center

Parameters

ParameterDefaultRange / options
Diameter300in180in–360in

Download

Download 25-foot Canary Island Date Palm Open in editor

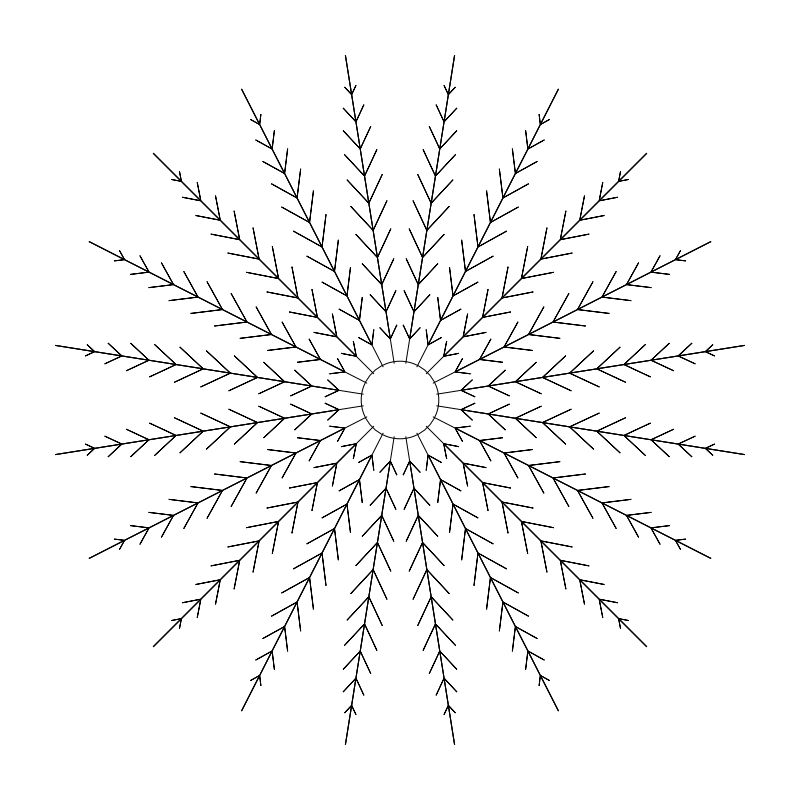

15-foot Medjool Date Palm

Landscaping - datum: trunk center - default footprint 180in x 180in

15-foot Medjool Date Palm - plan view CAD block
15-foot Medjool Date Palm - plan view, 180in x 180in

Dimensions

Plan footprint (W x H)180in x 180in
Unitsinches
DXF versionR2018
Insertion datumtrunk center

Parameters

ParameterDefaultRange / options
Diameter180in144in–288in

Download

Download 15-foot Medjool Date Palm Open in editor

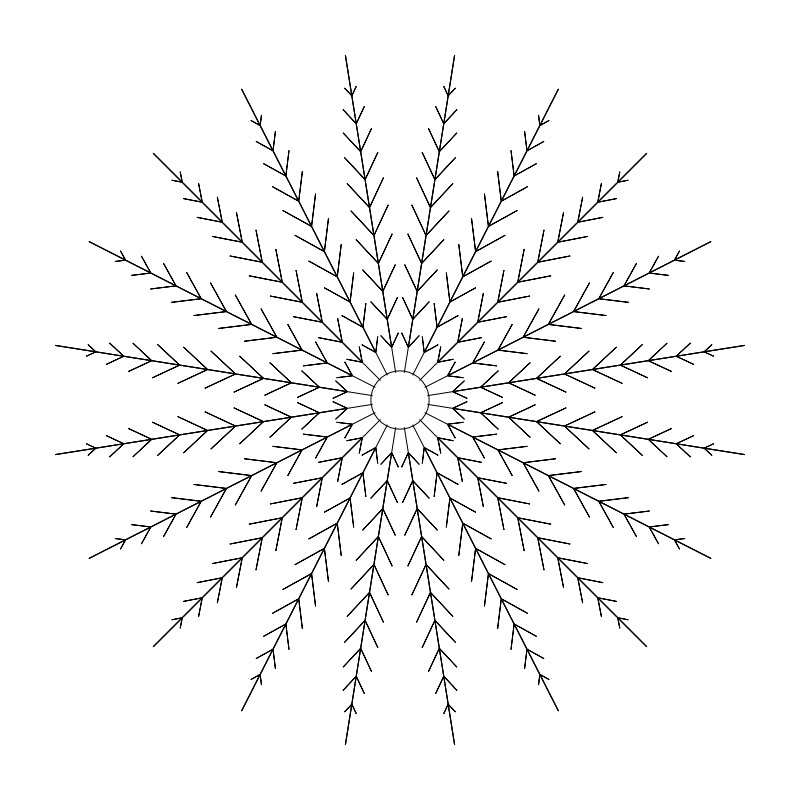

20-foot Medjool Date Palm

Landscaping - datum: trunk center - default footprint 240in x 240in

20-foot Medjool Date Palm - plan view CAD block
20-foot Medjool Date Palm - plan view, 240in x 240in

Dimensions

Plan footprint (W x H)240in x 240in
Unitsinches
DXF versionR2018
Insertion datumtrunk center

Parameters

ParameterDefaultRange / options
Diameter240in144in–288in

Download

Download 20-foot Medjool Date Palm Open in editor

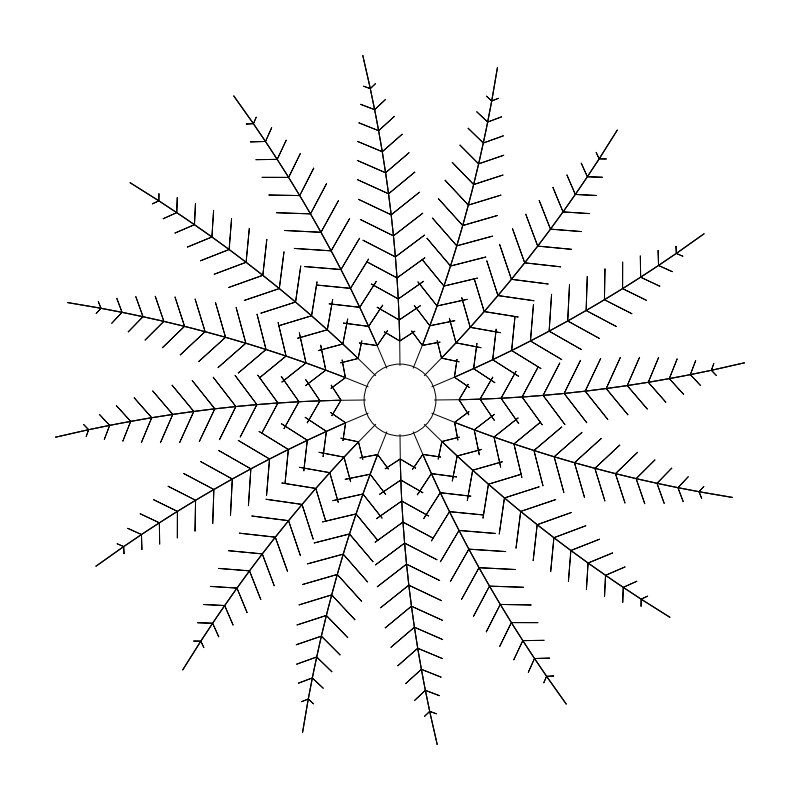

4-foot Pygmy Date Palm

Landscaping - datum: trunk center - default footprint 48in x 48in

4-foot Pygmy Date Palm - plan view CAD block
4-foot Pygmy Date Palm - plan view, 48in x 48in

Dimensions

Plan footprint (W x H)48in x 48in
Unitsinches
DXF versionR2018
Insertion datumtrunk center

Parameters

ParameterDefaultRange / options
Diameter48in36in–96in

Download

Download 4-foot Pygmy Date Palm Open in editor

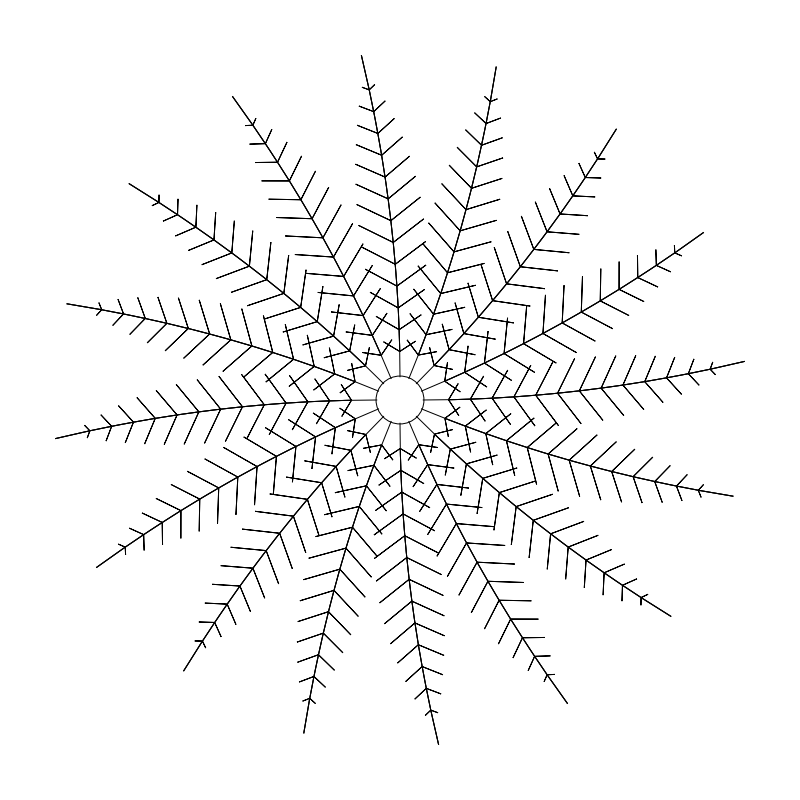

6-foot Pygmy Date Palm

Landscaping - datum: trunk center - default footprint 72in x 72in

6-foot Pygmy Date Palm - plan view CAD block
6-foot Pygmy Date Palm - plan view, 72in x 72in

Dimensions

Plan footprint (W x H)72in x 72in
Unitsinches
DXF versionR2018
Insertion datumtrunk center

Parameters

ParameterDefaultRange / options
Diameter72in36in–96in

Download

Download 6-foot Pygmy Date Palm Open in editor

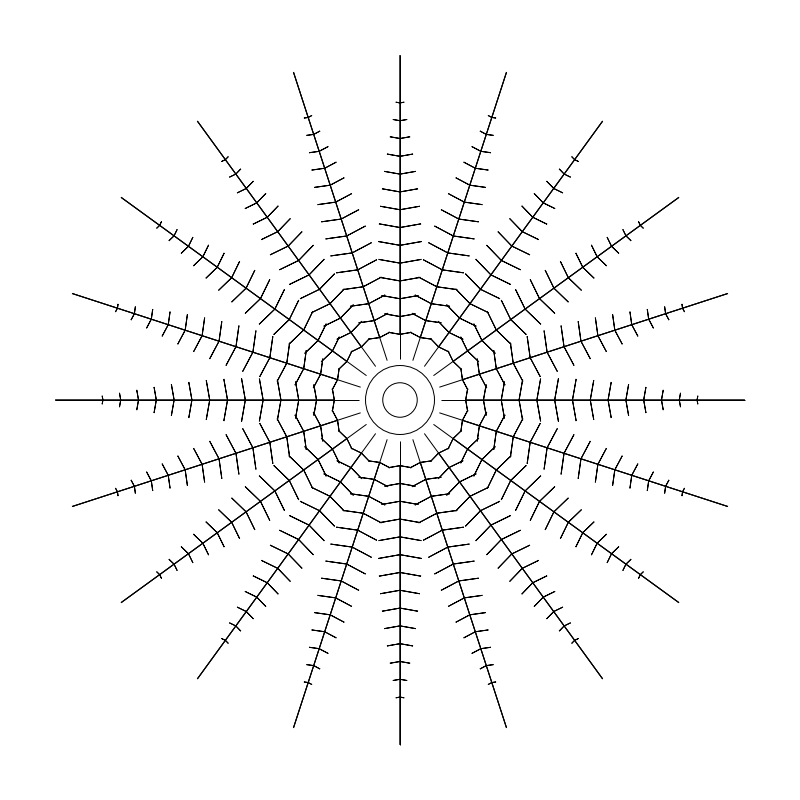

4-foot Sago Palm (Cycad)

Landscaping - datum: caudex center - default footprint 48in x 48in

4-foot Sago Palm (Cycad) - plan view CAD block
4-foot Sago Palm (Cycad) - plan view, 48in x 48in

Dimensions

Plan footprint (W x H)48in x 48in
Unitsinches
DXF versionR2018
Insertion datumcaudex center

Parameters

ParameterDefaultRange / options
Diameter48in24in–96in

Download

Download 4-foot Sago Palm (Cycad) Open in editor

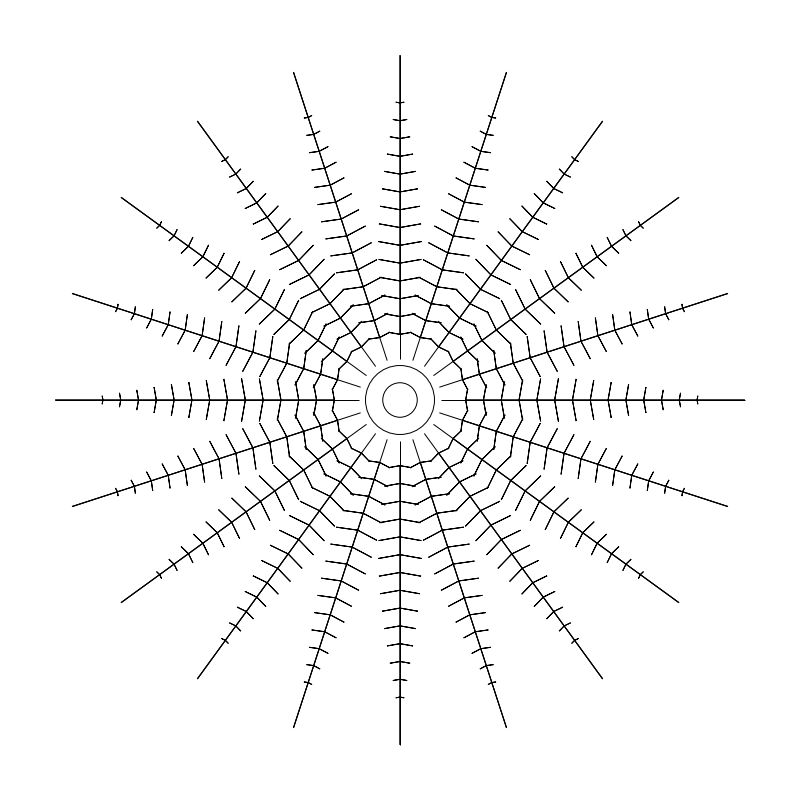

6-foot Sago Palm (Cycad)

Landscaping - datum: caudex center - default footprint 72in x 72in

6-foot Sago Palm (Cycad) - plan view CAD block
6-foot Sago Palm (Cycad) - plan view, 72in x 72in

Dimensions

Plan footprint (W x H)72in x 72in
Unitsinches
DXF versionR2018
Insertion datumcaudex center

Parameters

ParameterDefaultRange / options
Diameter72in24in–96in

Download

Download 6-foot Sago Palm (Cycad) Open in editor

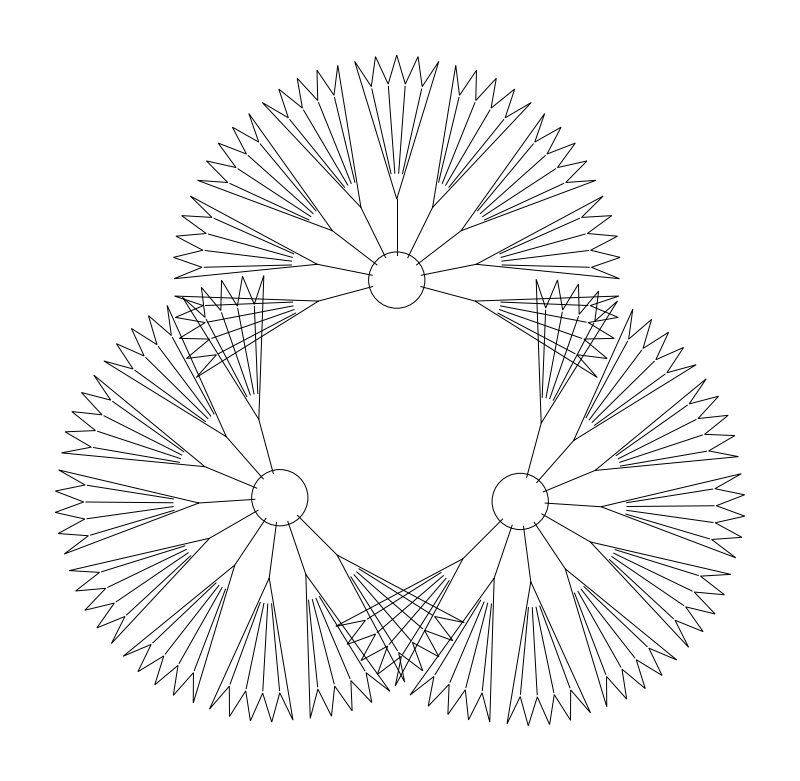

10-foot Mediterranean Fan Palm Clump

Landscaping - datum: clump center - default footprint 120in x 116.72in

10-foot Mediterranean Fan Palm Clump - plan view CAD block
10-foot Mediterranean Fan Palm Clump - plan view, 120in x 116.72in

Dimensions

Plan footprint (W x H)120in x 116.72in
Unitsinches
DXF versionR2018
Insertion datumclump center

Parameters

ParameterDefaultRange / options
Diameter120in72in–240in

Download

Download 10-foot Mediterranean Fan Palm Clump Open in editor

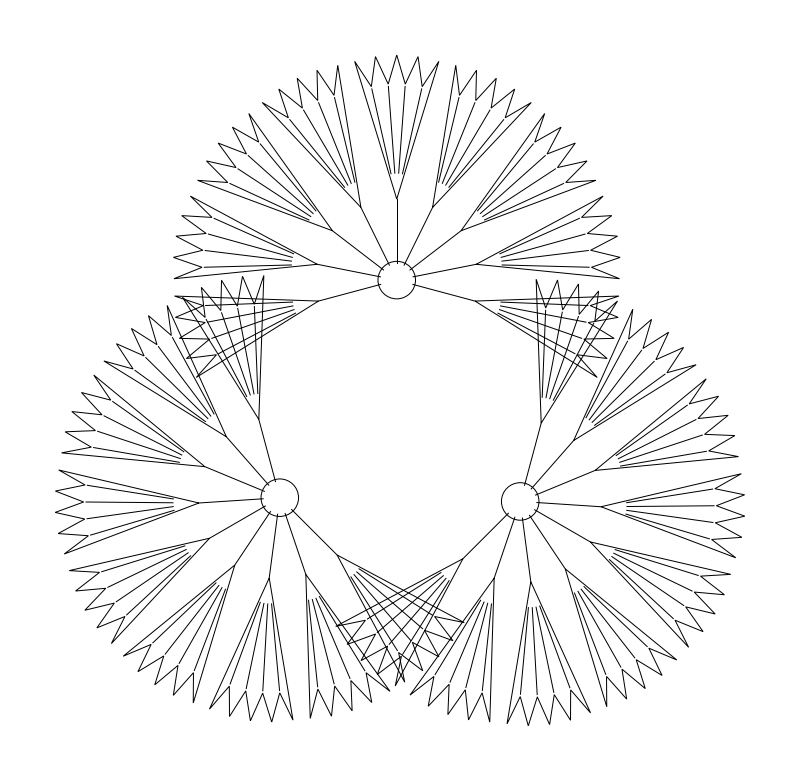

15-foot Mediterranean Fan Palm Clump

Landscaping - datum: clump center - default footprint 180in x 175.09in

15-foot Mediterranean Fan Palm Clump - plan view CAD block
15-foot Mediterranean Fan Palm Clump - plan view, 180in x 175.09in

Dimensions

Plan footprint (W x H)180in x 175.09in
Unitsinches
DXF versionR2018
Insertion datumclump center

Parameters

ParameterDefaultRange / options
Diameter180in72in–240in

Download

Download 15-foot Mediterranean Fan Palm Clump Open in editor

Standards are listed for drafting context only. A symbol drawn to a convention is not a compliance determination - verify against the governing code and the specified product. See the license and terms.
