Garden and Courtyard CAD Blocks

The built half of a garden: a fountain for the courtyard centre, a fire pit, 10 x 10 and 12 x 16 pergolas drawn as their roof framing, a garden bench, running-bond pavers, stepping stones, a gravel path, 4 x 8 and 4 x 12 raised beds, and lawn and groundcover areas. Paths, paving and planting areas take their size from the plan; the objects are drawn at the sizes they are built and sold in. Free DXF downloads drawn to scale in inches.

12 blocks, 12 downloads on this page. DXF R2018, drawn in inches. Free, no signup.

72-inch Garden Fountain 72in x 72in
Download 72-inch Garden Fountain Open in editor

DWG (R2000, converted from the DXF). PNG is the plan-view preview.

72-inch Garden Fountain - plan view, 72in x 72in
72-inch Garden Fountain - plan view, 72in x 72in

72-inch Garden Fountain

Landscaping - datum: basin center - default footprint 72in x 72in

72-inch Garden Fountain - plan view CAD block
72-inch Garden Fountain - plan view, 72in x 72in

Dimensions

Plan footprint (W x H)72in x 72in
Unitsinches
DXF versionR2018
Insertion datumbasin center

Parameters

ParameterDefaultRange / options
Diameter72in36in–180in

Download

Download 72-inch Garden Fountain Open in editor

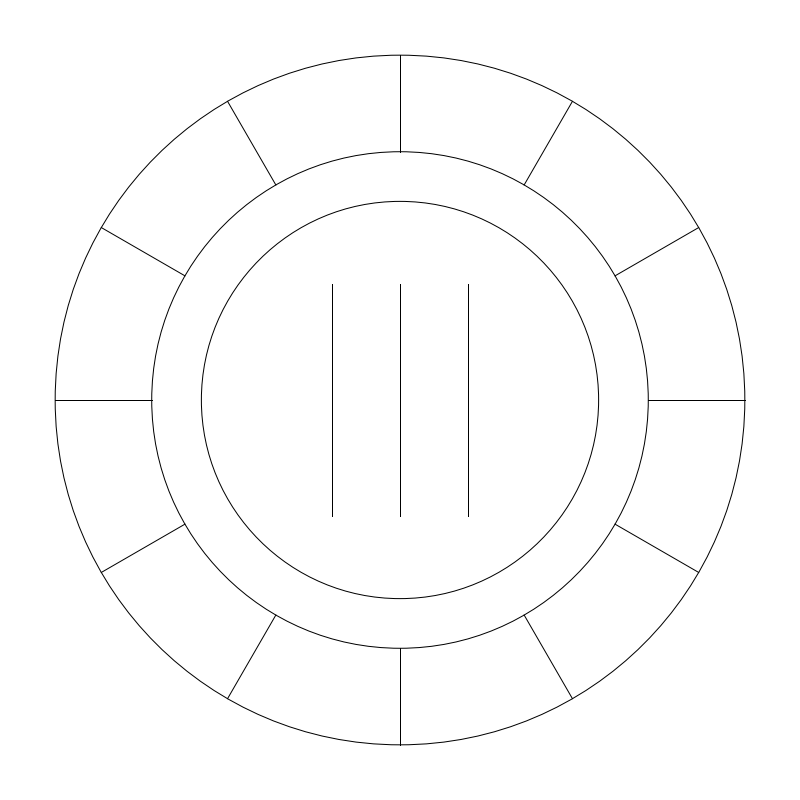

42-inch Fire Pit

Landscaping - datum: center - default footprint 42in x 42in

42-inch Fire Pit - plan view CAD block
42-inch Fire Pit - plan view, 42in x 42in

Dimensions

Plan footprint (W x H)42in x 42in
Unitsinches
DXF versionR2018
Insertion datumcenter

Parameters

ParameterDefaultRange / options
Diameter42in30in–72in

Download

Download 42-inch Fire Pit Open in editor

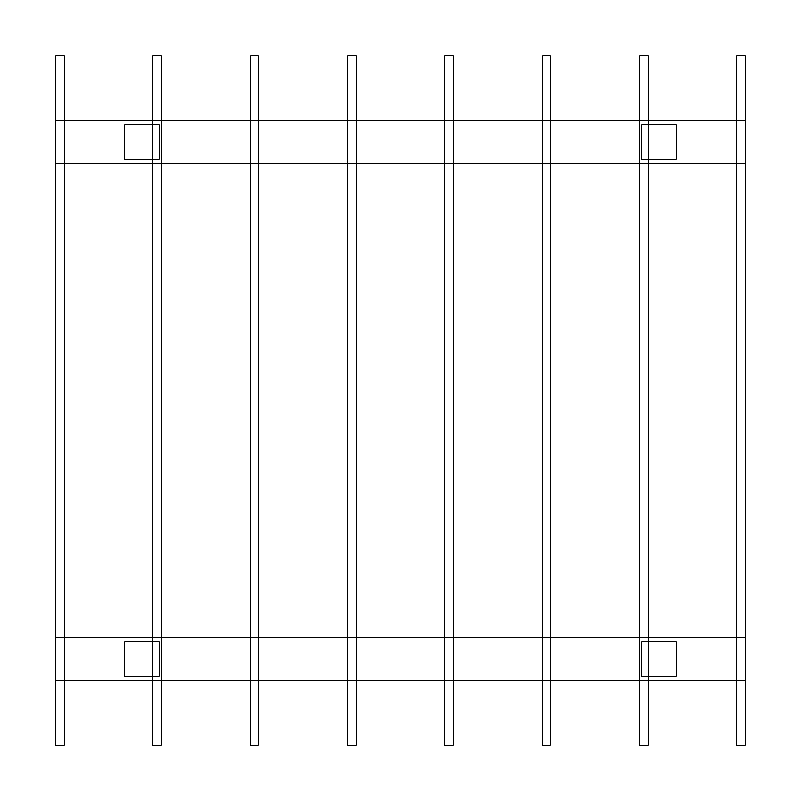

10 x 10 Pergola

Landscaping - datum: near-left corner of the overhead framing - default footprint 120in x 120in

10 x 10 Pergola - plan view CAD block
10 x 10 Pergola - plan view, 120in x 120in

Dimensions

Plan footprint (W x H)120in x 120in
Unitsinches
DXF versionR2018
Insertion datumnear-left corner of the overhead framing

Parameters

ParameterDefaultRange / options
Width120in72in–288in
Depth120in72in–240in
Overhang12in0in–24in

Download

Download 10 x 10 Pergola Open in editor

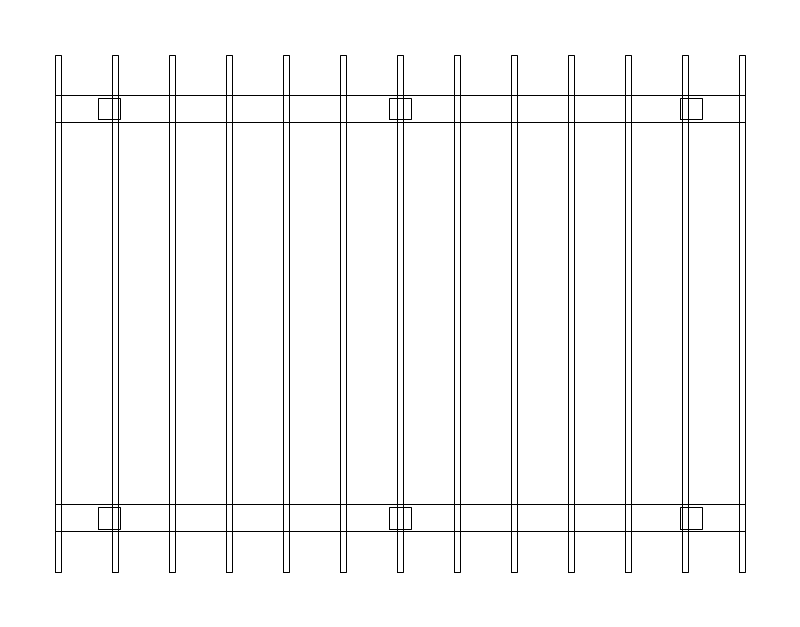

12 x 16 Pergola

Landscaping - datum: near-left corner of the overhead framing - default footprint 192in x 144in

12 x 16 Pergola - plan view CAD block
12 x 16 Pergola - plan view, 192in x 144in

Dimensions

Plan footprint (W x H)192in x 144in
Unitsinches
DXF versionR2018
Insertion datumnear-left corner of the overhead framing

Parameters

ParameterDefaultRange / options
Width192in72in–288in
Depth144in72in–240in
Overhang12in0in–24in

Download

Download 12 x 16 Pergola Open in editor

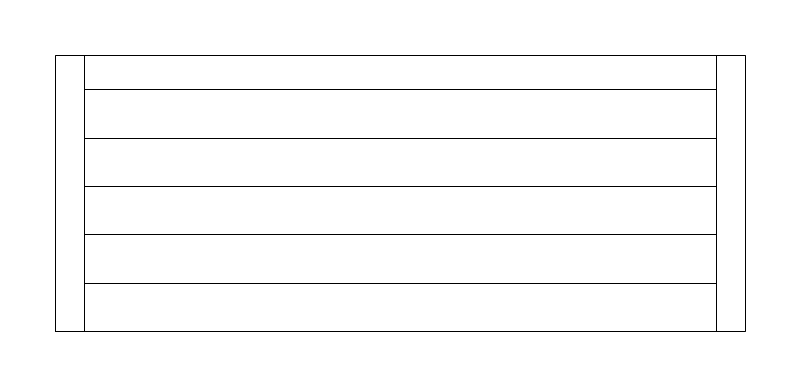

60-inch Garden Bench

Landscaping - datum: near-left corner (back at far +Y edge) - default footprint 60in x 24in

60-inch Garden Bench - plan view CAD block
60-inch Garden Bench - plan view, 60in x 24in

Dimensions

Plan footprint (W x H)60in x 24in
Unitsinches
DXF versionR2018
Insertion datumnear-left corner (back at far +Y edge)

Parameters

ParameterDefaultRange / options
Width60in48in–96in
Depth24in20in–30in

Download

Download 60-inch Garden Bench Open in editor

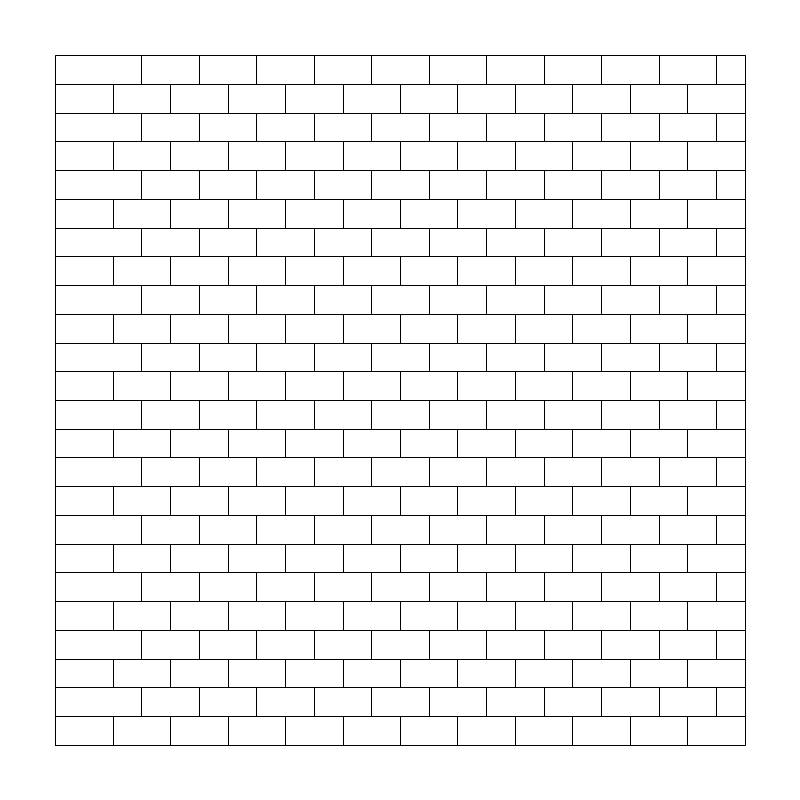

Running Bond Pavers

Landscaping - datum: near-left corner - default footprint 96in x 96in

Running Bond Pavers - plan view CAD block
Running Bond Pavers - plan view, 96in x 96in

Dimensions

Plan footprint (W x H)96in x 96in
Unitsinches
DXF versionR2018
Insertion datumnear-left corner

Parameters

ParameterDefaultRange / options
Width96in24in–480in
Depth96in24in–480in

Download

Download Running Bond Pavers Open in editor

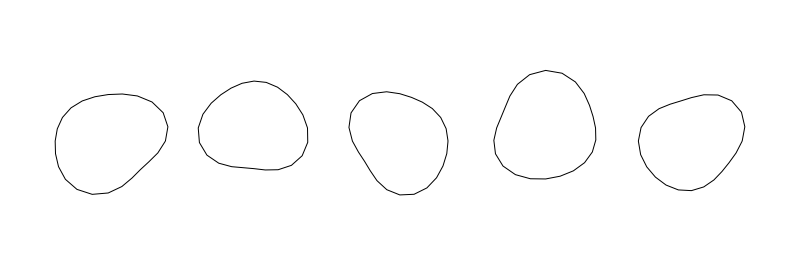

Stepping Stone Path

Landscaping - datum: near-left corner, stones step along +X - default footprint 113.52in x 20.5in

Stepping Stone Path - plan view CAD block
Stepping Stone Path - plan view, 113.52in x 20.5in

Dimensions

Plan footprint (W x H)113.52in x 20.5in
Unitsinches
DXF versionR2018
Insertion datumnear-left corner, stones step along +X

Parameters

ParameterDefaultRange / options
Length120in36in–1200in
Stone18in12in–30in
Spacing24in18in–36in

Download

Download Stepping Stone Path Open in editor

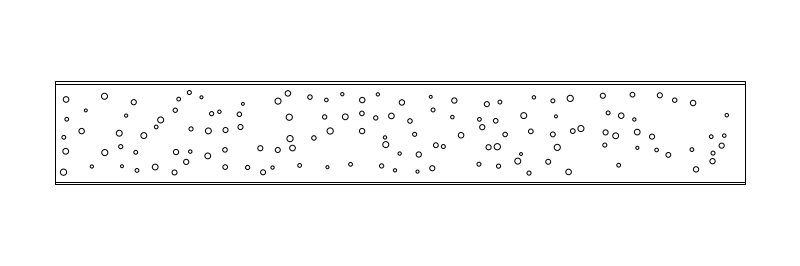

Gravel Path

Landscaping - datum: near-left corner, runs +X - default footprint 240in x 36in

Gravel Path - plan view CAD block
Gravel Path - plan view, 240in x 36in

Dimensions

Plan footprint (W x H)240in x 36in
Unitsinches
DXF versionR2018
Insertion datumnear-left corner, runs +X

Parameters

ParameterDefaultRange / options
Length240in48in–1200in
Width36in24in–72in

Download

Download Gravel Path Open in editor

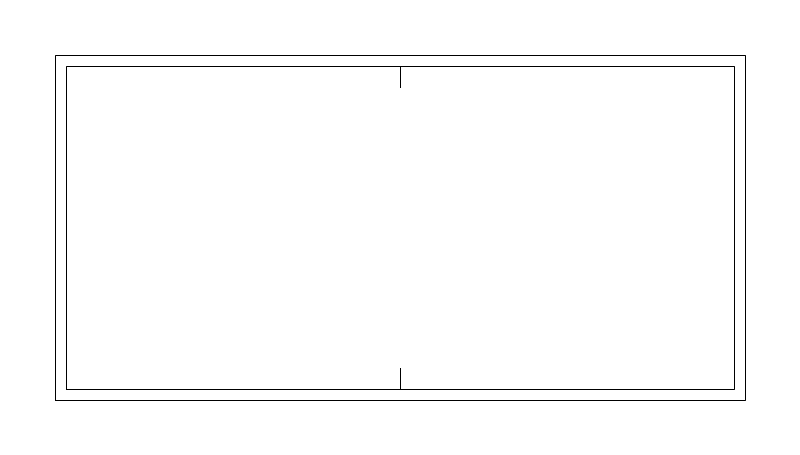

4 x 8 Raised Garden Bed

Landscaping - datum: near-left corner, runs +X - default footprint 96in x 48in

4 x 8 Raised Garden Bed - plan view CAD block
4 x 8 Raised Garden Bed - plan view, 96in x 48in

Dimensions

Plan footprint (W x H)96in x 48in
Unitsinches
DXF versionR2018
Insertion datumnear-left corner, runs +X

Parameters

ParameterDefaultRange / options
Length96in48in–240in
Width48in24in–60in
Dripfalsetrue / false

Download

Download 4 x 8 Raised Garden Bed Open in editor

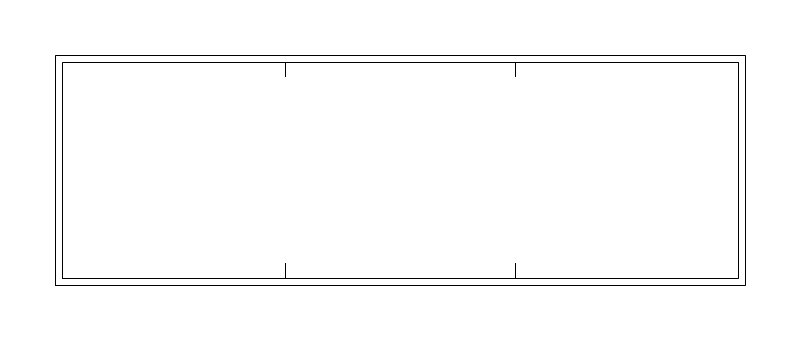

4 x 12 Raised Garden Bed

Landscaping - datum: near-left corner, runs +X - default footprint 144in x 48in

4 x 12 Raised Garden Bed - plan view CAD block
4 x 12 Raised Garden Bed - plan view, 144in x 48in

Dimensions

Plan footprint (W x H)144in x 48in
Unitsinches
DXF versionR2018
Insertion datumnear-left corner, runs +X

Parameters

ParameterDefaultRange / options
Length144in48in–240in
Width48in24in–60in
Dripfalsetrue / false

Download

Download 4 x 12 Raised Garden Bed Open in editor

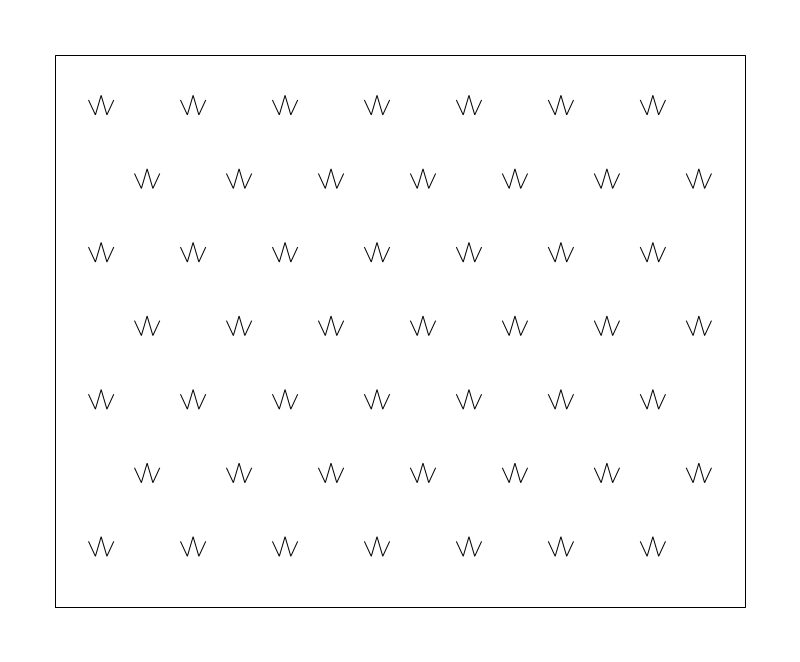

Lawn / Turf Area

Landscaping - datum: near-left corner - default footprint 120in x 96in

Lawn / Turf Area - plan view CAD block
Lawn / Turf Area - plan view, 120in x 96in

Dimensions

Plan footprint (W x H)120in x 96in
Unitsinches
DXF versionR2018
Insertion datumnear-left corner

Parameters

ParameterDefaultRange / options
Width120in48in–1200in
Depth96in48in–1200in

Download

Download Lawn / Turf Area Open in editor

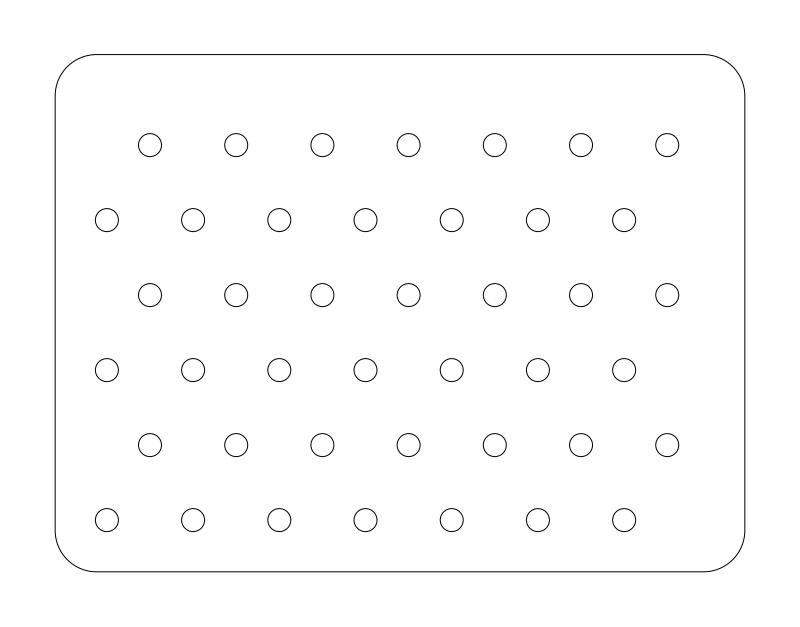

Groundcover Bed

Landscaping - datum: near-left corner - default footprint 96in x 72in

Groundcover Bed - plan view CAD block
Groundcover Bed - plan view, 96in x 72in

Dimensions

Plan footprint (W x H)96in x 72in
Unitsinches
DXF versionR2018
Insertion datumnear-left corner

Parameters

ParameterDefaultRange / options
Width96in24in–480in
Depth72in24in–480in

Download

Download Groundcover Bed Open in editor

Standards are listed for drafting context only. A symbol drawn to a convention is not a compliance determination - verify against the governing code and the specified product. See the license and terms.
