Block family

Brewery and Cellar CAD Blocks

Twelve brewery CAD blocks drawn as floor-plan fixtures rather than P&ID symbols: a 72in jacketed brewhouse vessel published as mash tun, kettle, whirlpool and hot liquor tank, a 60in conical fermenter and a 66in brite tank, a 30in grist case with its mill, a 24in glycol manifold, and the keg line - a 16.1in half-barrel, a pallet of eight and a two-station keg washer. Each carries the jacket, legs, manway and outlet a bare circle cannot, drawn in plan to scale in inches and free to download as DXF.

12 blocks, 12 downloads on this page. DXF R2018, drawn in inches. Free, no signup.

Brewhouse Vessel 72in x 72in

Download Brewhouse Vessel Open in editor

DWG (R2000, converted from the DXF). PNG is the plan-view preview.

Brewhouse Vessel - plan view, 72in x 72in

Brewhouse Vessel

Industrial - datum: vessel center - default footprint 72in x 72in

Dimensions

Plan footprint (W x H)	72in x 72in
Units	inches
DXF version	R2018
Insertion datum	vessel center

Parameters

Parameter	Default	Range / options
Diameter	72in	48in–96in
Manway	side	side / top

Download

Download Brewhouse Vessel Open in editor

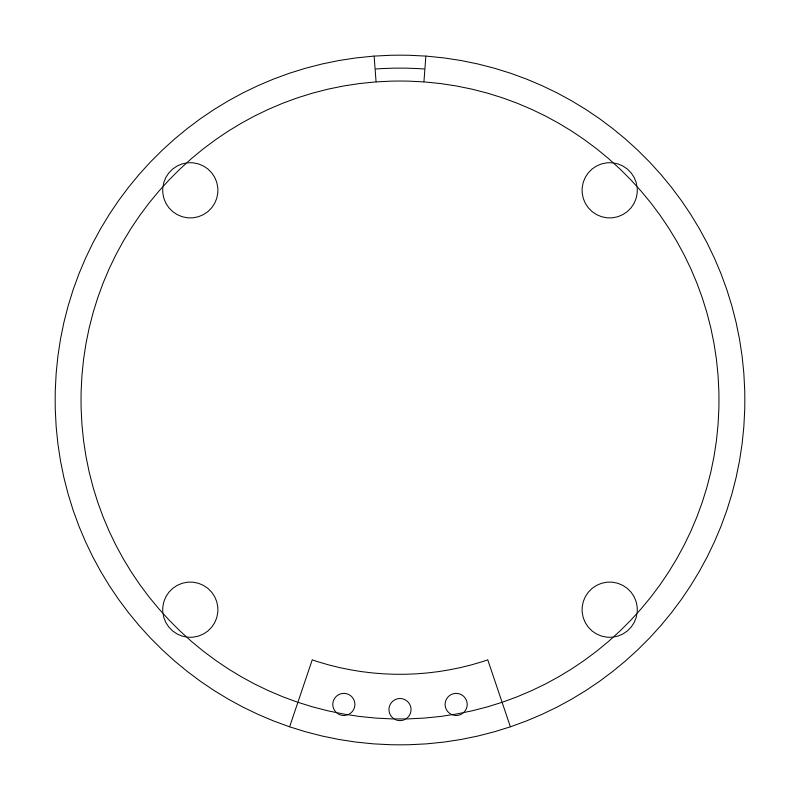

Mash Tun

Industrial - datum: vessel center - default footprint 72in x 72in

Dimensions

Plan footprint (W x H)	72in x 72in
Units	inches
DXF version	R2018
Insertion datum	vessel center

Parameters

Parameter	Default	Range / options
Diameter	72in	48in–96in
Manway	side	side / top

Download

Download Mash Tun Open in editor

Brew Kettle

Industrial - datum: vessel center - default footprint 72in x 72in

Dimensions

Plan footprint (W x H)	72in x 72in
Units	inches
DXF version	R2018
Insertion datum	vessel center

Parameters

Parameter	Default	Range / options
Diameter	72in	48in–96in
Manway	side	side / top

Download

Download Brew Kettle Open in editor

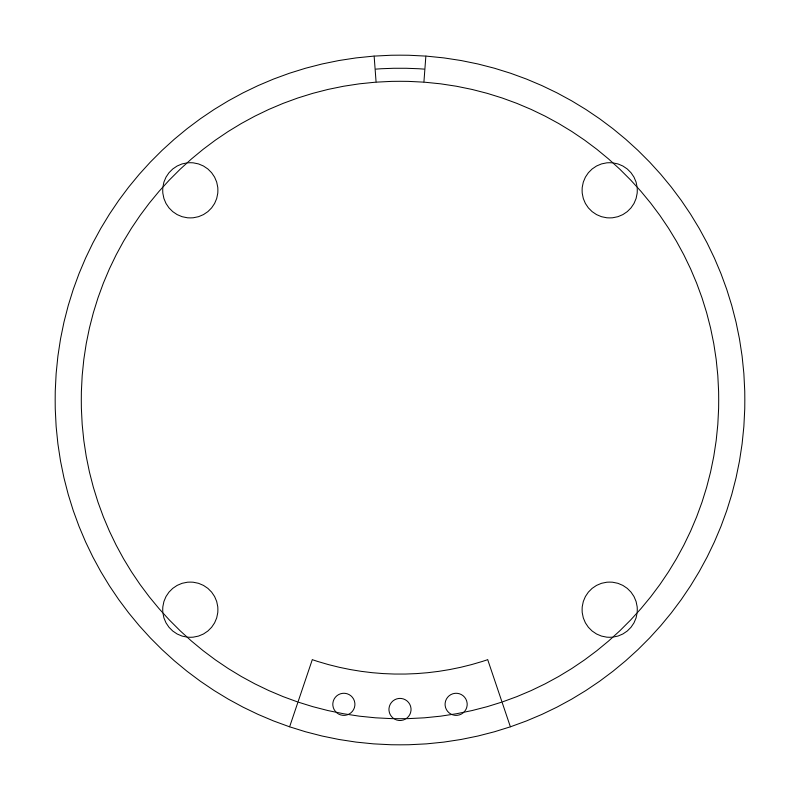

Whirlpool

Industrial - datum: vessel center - default footprint 66in x 66in

Dimensions

Plan footprint (W x H)	66in x 66in
Units	inches
DXF version	R2018
Insertion datum	vessel center

Parameters

Parameter	Default	Range / options
Diameter	66in	48in–96in
Manway	side	side / top

Download

Download Whirlpool Open in editor

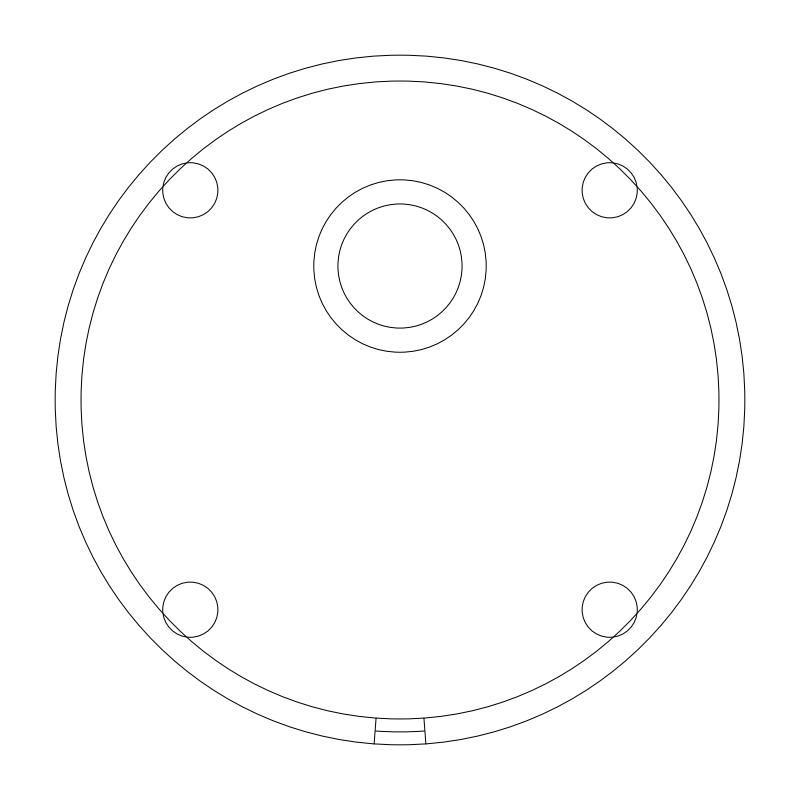

Hot Liquor Tank

Industrial - datum: vessel center - default footprint 72in x 72in

Dimensions

Plan footprint (W x H)	72in x 72in
Units	inches
DXF version	R2018
Insertion datum	vessel center

Parameters

Parameter	Default	Range / options
Diameter	72in	48in–96in
Manway	top	side / top

Download

Download Hot Liquor Tank Open in editor

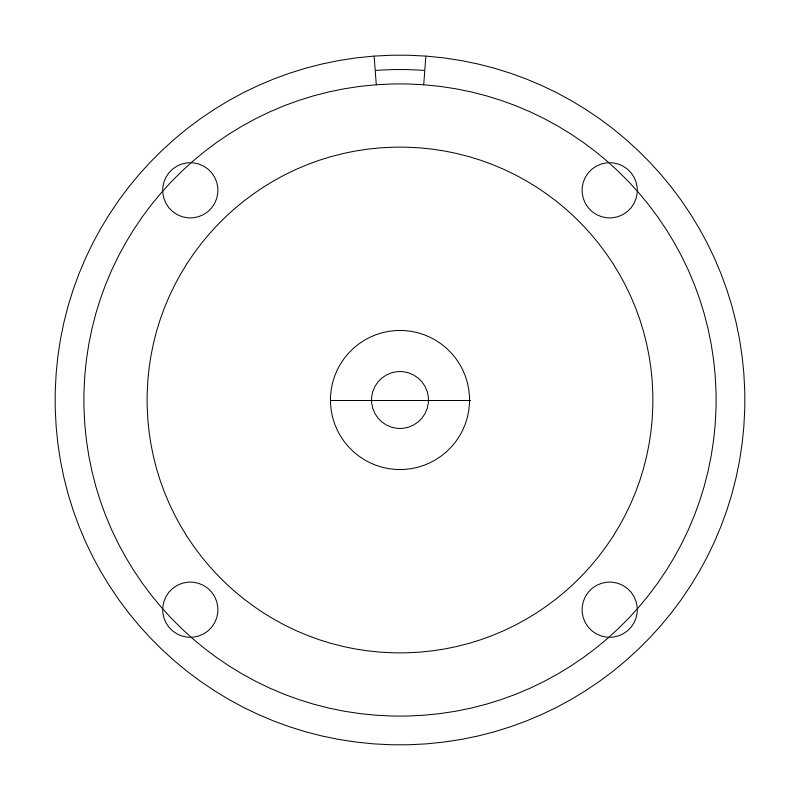

Brewery Fermenter

Industrial - datum: vessel center - default footprint 60in x 60in

Dimensions

Plan footprint (W x H)	60in x 60in
Units	inches
DXF version	R2018
Insertion datum	vessel center

Parameters

Parameter	Default	Range / options
Diameter	60in	48in–96in
Cone	true	true / false

Download

Download Brewery Fermenter Open in editor

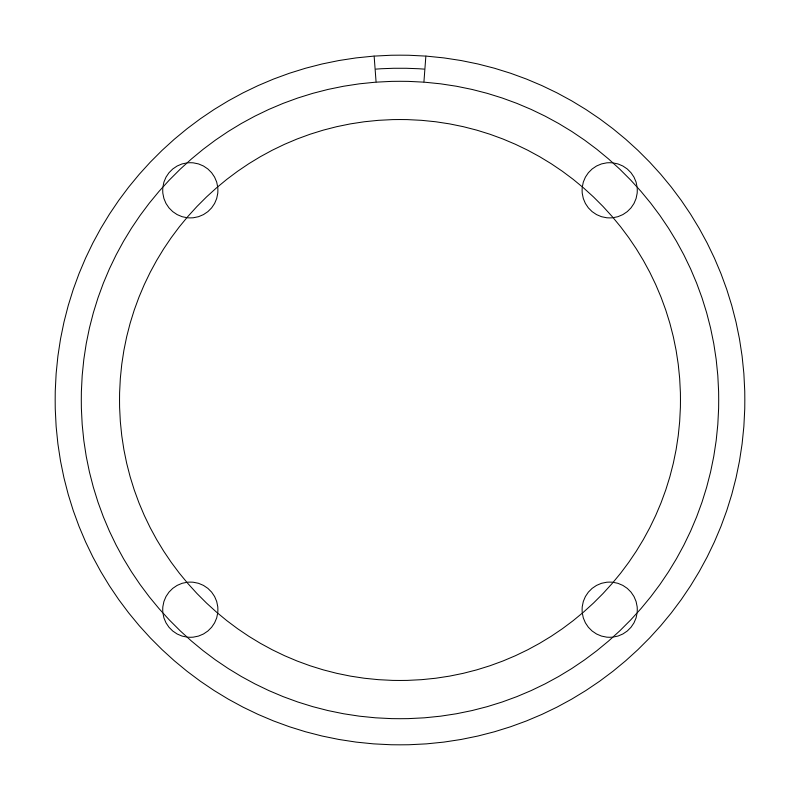

Brite Tank

Industrial - datum: vessel center - default footprint 66in x 66in

Dimensions

Plan footprint (W x H)	66in x 66in
Units	inches
DXF version	R2018
Insertion datum	vessel center

Parameters

Parameter	Default	Range / options
Diameter	66in	48in–96in
Cone	false	true / false

Download

Download Brite Tank Open in editor

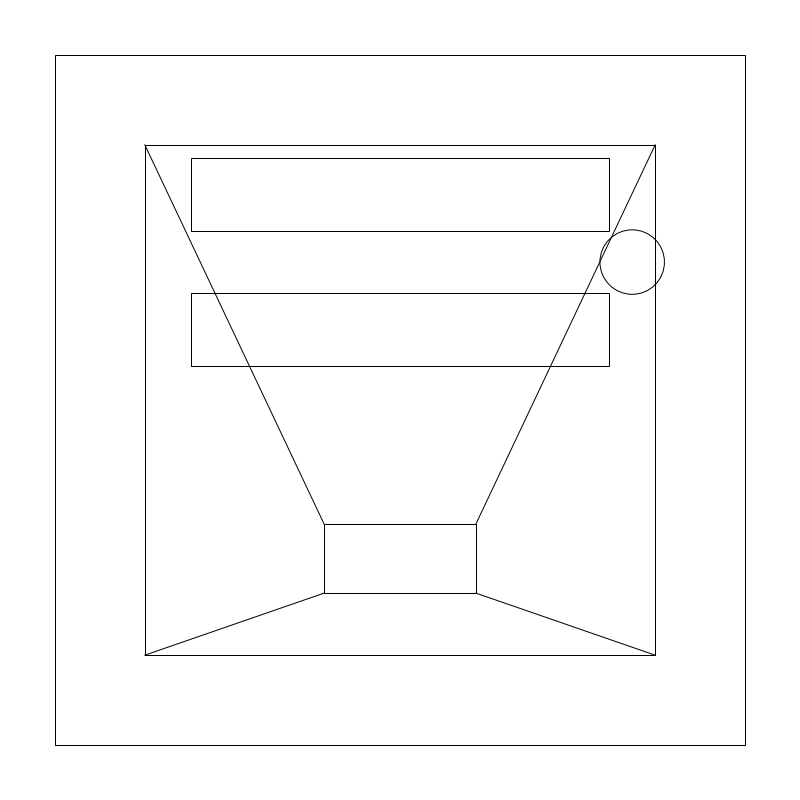

Grist Case with Mill

Industrial - datum: back-left corner on wall line - default footprint 30in x 30in

Dimensions

Plan footprint (W x H)	30in x 30in
Units	inches
DXF version	R2018
Insertion datum	back-left corner on wall line

Parameters

Parameter	Default	Range / options
Width	30in	24in–48in
Depth	30in	24in–48in

Download

Download Grist Case with Mill Open in editor

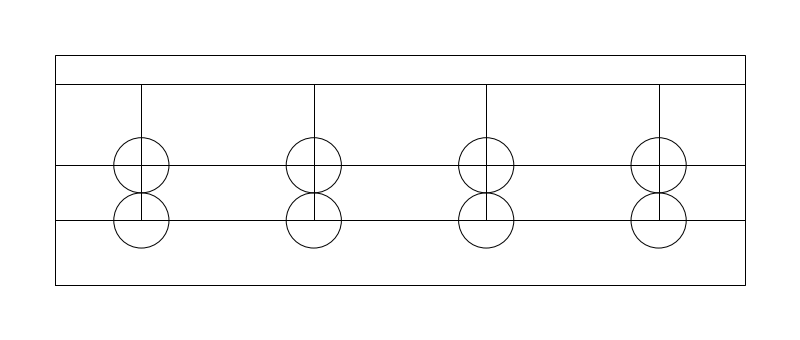

Glycol Distribution Manifold

Industrial - datum: back-left corner on wall line - default footprint 24in x 8in

Dimensions

Plan footprint (W x H)	24in x 8in
Units	inches
DXF version	R2018
Insertion datum	back-left corner on wall line

Parameters

Parameter	Default	Range / options
Width	24in	12in–72in
Depth	8in	6in–12in
Circuits	4in	2in–12in

Download

Download Glycol Distribution Manifold Open in editor

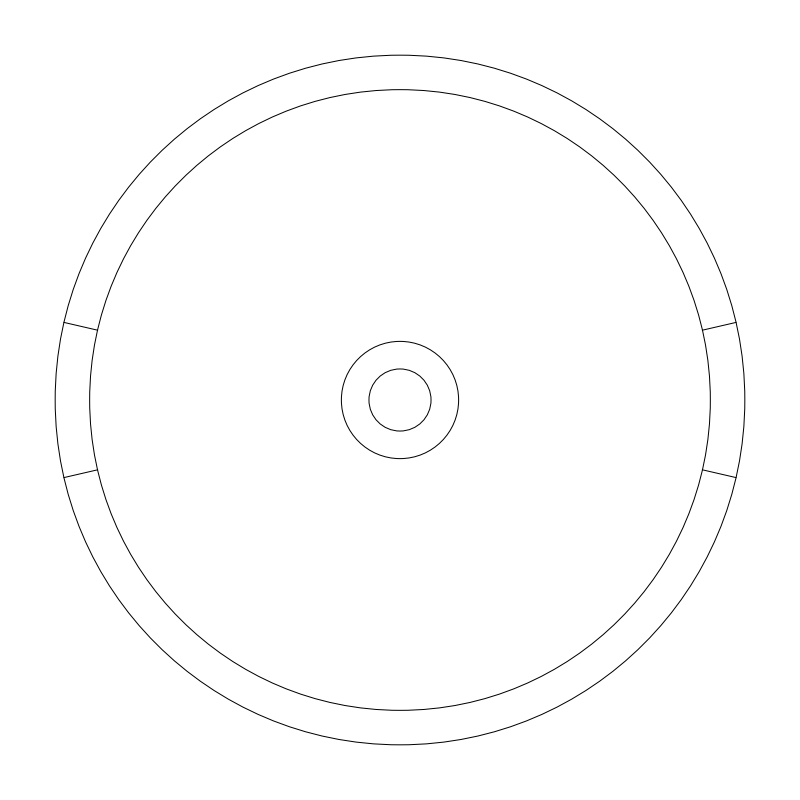

Half-Barrel Keg

Industrial - datum: keg center (standing upright) - default footprint 16.1in x 16.1in

Dimensions

Plan footprint (W x H)	16.1in x 16.1in
Units	inches
DXF version	R2018
Insertion datum	keg center (standing upright)

Parameters

Parameter	Default	Range / options
Diameter	16.1in	14in–18in

Download

Download Half-Barrel Keg Open in editor

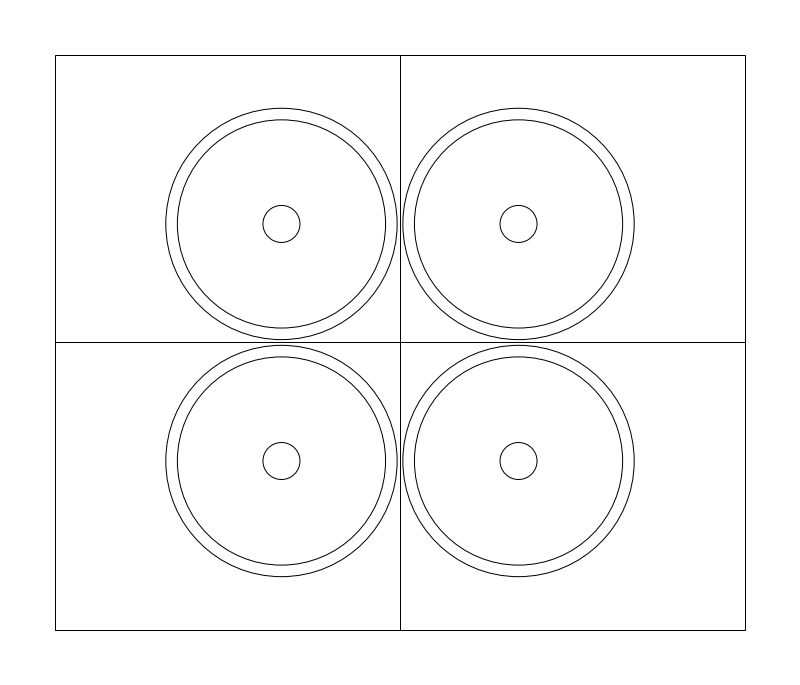

Pallet of Eight Kegs

Industrial - datum: near-left corner of the pallet (4 on the deck, 8 in two layers) - default footprint 48in x 40in

Dimensions

Plan footprint (W x H)	48in x 40in
Units	inches
DXF version	R2018
Insertion datum	near-left corner of the pallet (4 on the deck, 8 in two layers)

Parameters

Parameter	Default	Range / options
W	48in	48in–48in
D	40in	40in–40in
Kegs	4in	2in–4in
Keg Dia	16.1in	14in–18in
Stacked	true	true / false

Download

Download Pallet of Eight Kegs Open in editor

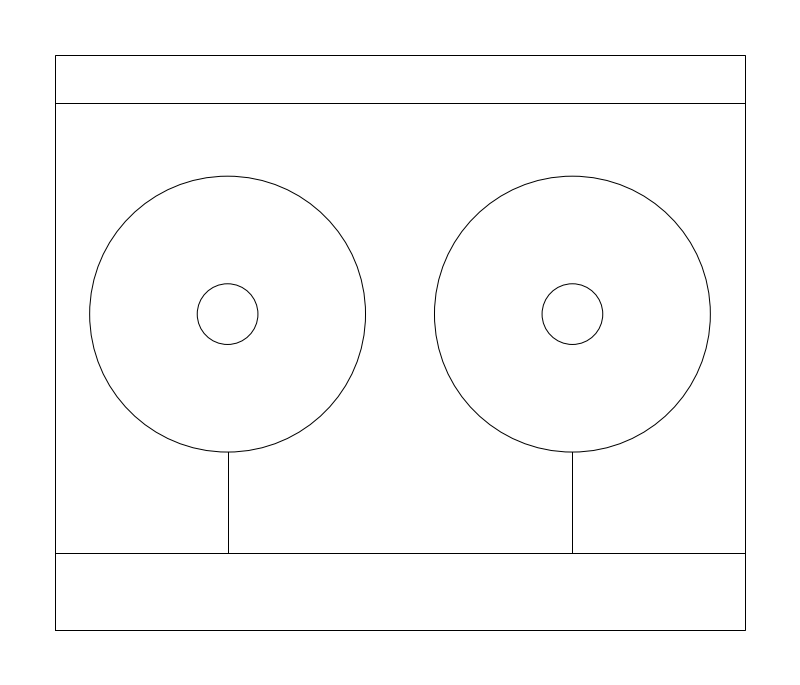

Keg Washer

Industrial - datum: back-left corner on wall line - default footprint 36in x 30in

Dimensions

Plan footprint (W x H)	36in x 30in
Units	inches
DXF version	R2018
Insertion datum	back-left corner on wall line

Parameters

Parameter	Default	Range / options
Width	36in	24in–72in
Depth	30in	24in–40in
Stations	2in	1in–4in

Download

Download Keg Washer Open in editor

Standards are listed for drafting context only. A symbol drawn to a convention is not a compliance determination - verify against the governing code and the specified product. See the license and terms.
